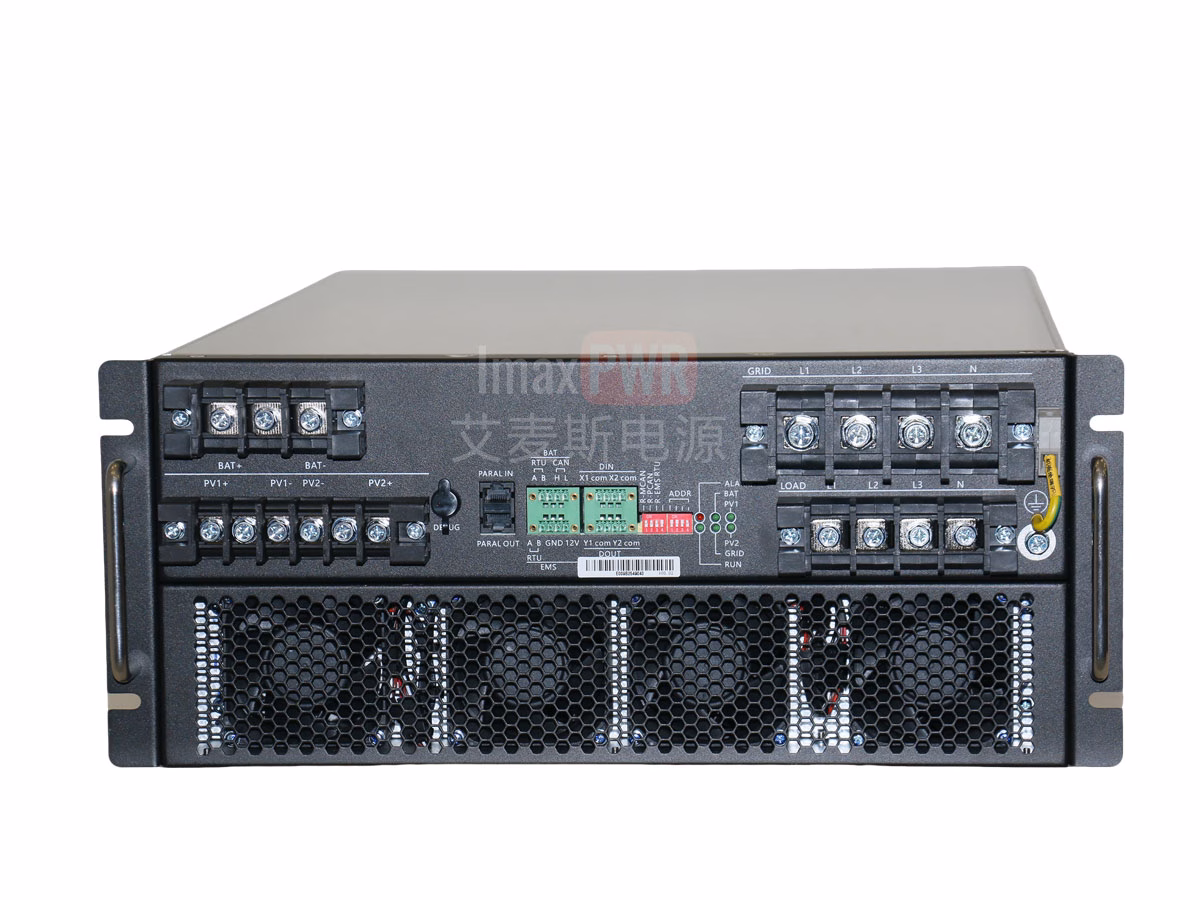

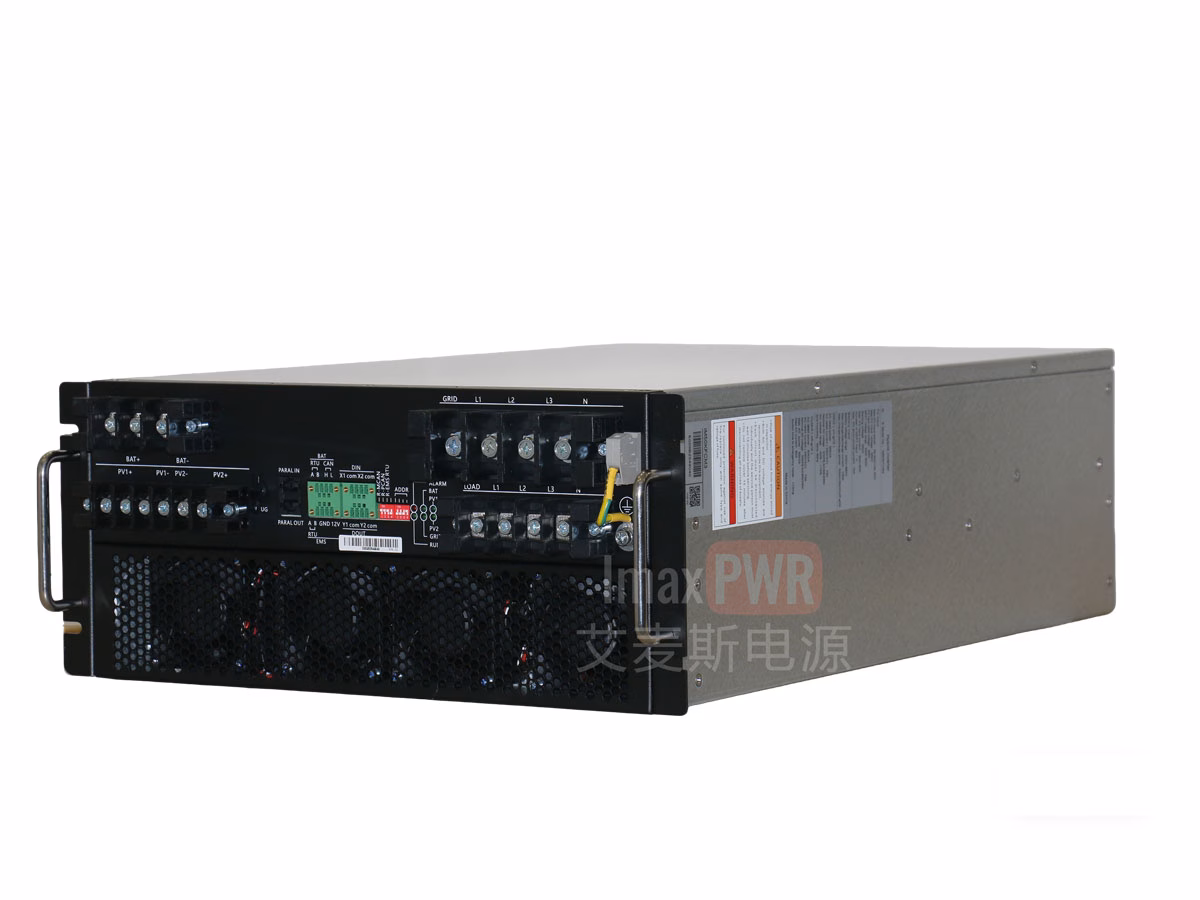

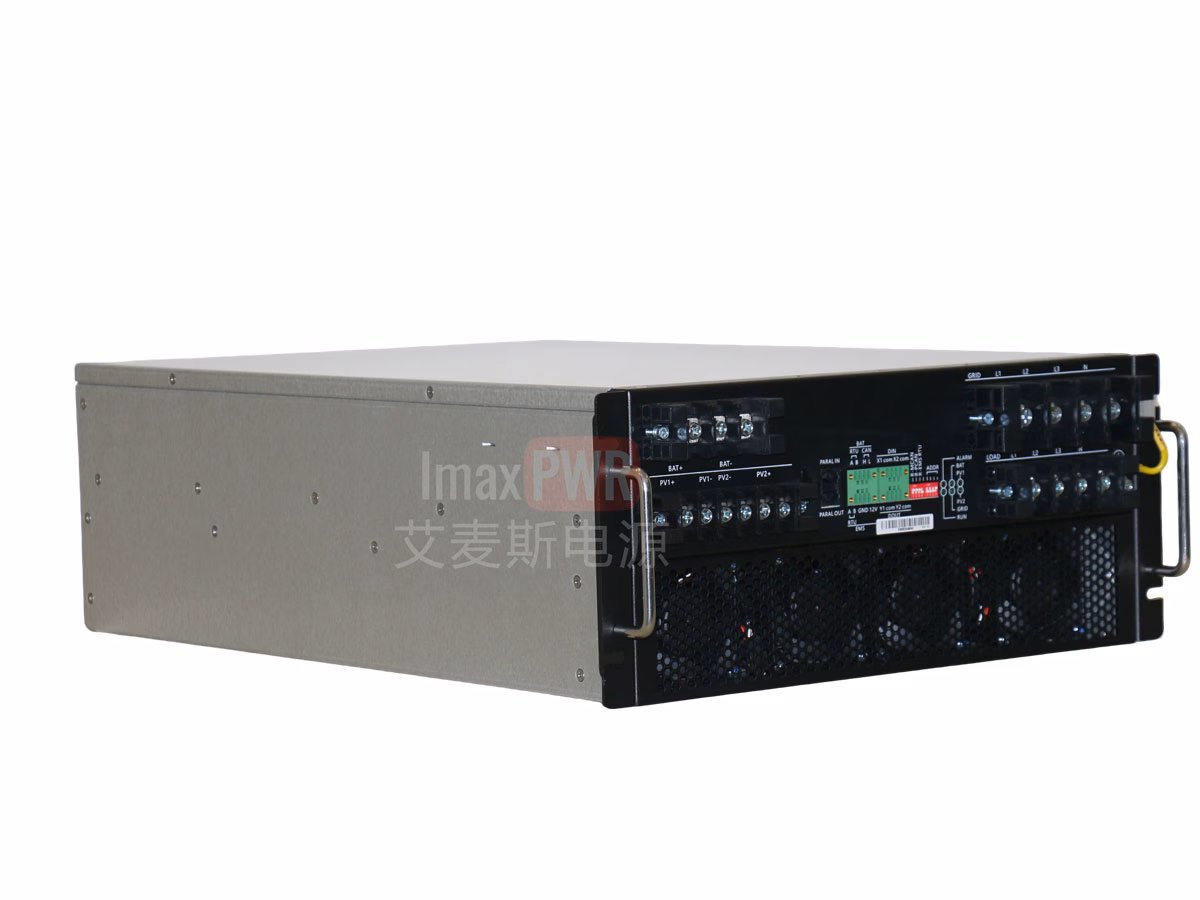

50KW/60KW Solar Hybrid Inverter
Updated: 2025-10-02
🔋 Product Overview
An efficient and highly reliable energy storage inverter mainly developed for small and medium-sized energy storage microgrids. It supports photovoltaic access, contains a parallel and off-grid switching device, supports multiple parallel operation, supports oil-engine hybrid operation, and supports fast on-grid & off-grid switching. Suitable for small industry and commerce, small island microgrids, farms, villas, battery cascade utilization and other scenarios to meet diversified user needs.
⚡ Core Features & Advantages
- Wide battery voltage range (200V – 850V) for high compatibility
- Dual MPPT design, max PV power 76.8kW, high solar energy utilization
- Fast on-grid/off-grid switching, uninterrupted power supply
- Support multiple parallel & diesel generator hybrid operation
- Low current harmonics (<3%), high power quality
- Strong overload capacity, stable for various load types
- High reliability, long service life, suitable for harsh environments
🏭 Typical Application Scenarios
Small Industry & Commerce
Island Microgrids
Farms & Pastures
Villas & Residences
Battery Cascade Utilization
Off-grid Power Systems
Island Microgrids
Farms & Pastures
Villas & Residences
Battery Cascade Utilization
Off-grid Power Systems
🔌 Electrical Topology & Working Modes
PV Array → Dual MPPT Controller → Bidirectional DC/DC → DC Bus → Inverter Bridge → LCL Filter → On/Off Grid Switching Module → Load / Grid
Working Modes: On-grid Mode | Off-grid Mode | Hybrid Mode | Parallel Mode | PV + Battery + Generator Mode
Working Modes: On-grid Mode | Off-grid Mode | Hybrid Mode | Parallel Mode | PV + Battery + Generator Mode
📊 Technical Parameters
| Parameters | IM60KFCM3 | IM50KFCM3 |
|---|---|---|
| Battery parameters | ||
| Battery voltage（Max.） | 850V | 850V |
| Battery voltage(Min.) | 200V | 200V |
| Rated battery voltage range | 420V-820V | 350V-820V |
| Battery current(Max.) | 150A | 150A |
| PV parameter | ||
| Power(Max.) | 38.4 kW + 38.4 kW | 38.4 kW + 38.4 kW |
| PV voltage(Max.) | 850V | 850V |
| PV starting voltage | 250V | 250V |
| MPPT voltage range | 200V-800V | 200V-800V |
| PV current(Max.) | 64A+64A | 64A+64A |
| Ac side (On-grid) | ||
| Rated power | 60kVA | 50kVA |
| Rated current | 87A | 73A |
| Rated grid voltage | 400V/230V | 400V/230V |
| Grid voltage range | -20% ~ 20% | -20% ~ 20% |
| Grid frequency range | 50Hz/47Hz~52Hz(60Hz/57Hz~62Hz) | 50Hz/47Hz~52Hz(60Hz/57Hz~62Hz) |
| Current harmonics | <3% | <3% |
| Power factor | -1 to 1 (see Figure 3) | -1 to 1 (see Figure 3) |
| Ac side (off-grid) | ||
| Rated power output | 60kVA | 50kVA |
| Power output(Max.) | 66kVA | 55kVA |
| Rated output current | 87A | 73A |
| Output current(Max.) | 96A | 80A |
| Rated voltage | 400V/230V | 400V/230V |
| Output voltage harmonics | <3%(resistive load) | <3%(resistive load) |
| Unbalance degree | 100% | 100% |
| Frequency range | 50/60Hz | 50/60Hz |
| Output overload (current) | Ie*1.1 <Iload≤Ie*1.25 100s | Ie*1.1 <Iload≤Ie*1.25 100s |
🛡️ Protection & Safety
- Over voltage / Under voltage protection
- Over current / Short circuit protection
- Over temperature protection
- Reverse polarity protection
- Islanding protection
- Lightning & Surge protection
❓ FAQ (No JavaScript)
Q1: What battery types are compatible?
A: Lithium-ion batteries, lead-acid batteries, and energy storage batteries with 200V-850V voltage range.
Q2: Can it work without grid power?
A: Yes, it supports off-grid standalone operation and can automatically switch from on-grid to off-grid mode within milliseconds.
Q3: Is parallel operation supported?
A: Yes, multiple inverters can be connected in parallel to expand system capacity and improve reliability.
Q4: What is the warranty period?
A: Standard 2-year warranty, extended warranty service is available.
