Description
Rated Power
125 kW
Capacity
261 kWh
Max. Efficiency
≥ 88%
(PCS ≥ 98.5%)
DC Voltage
728–936 V
Protection
IP55
PACK IP67
Communication
Modbus TCP/RTU
IEC 104 • MQTT
⚙️ Technical Architecture

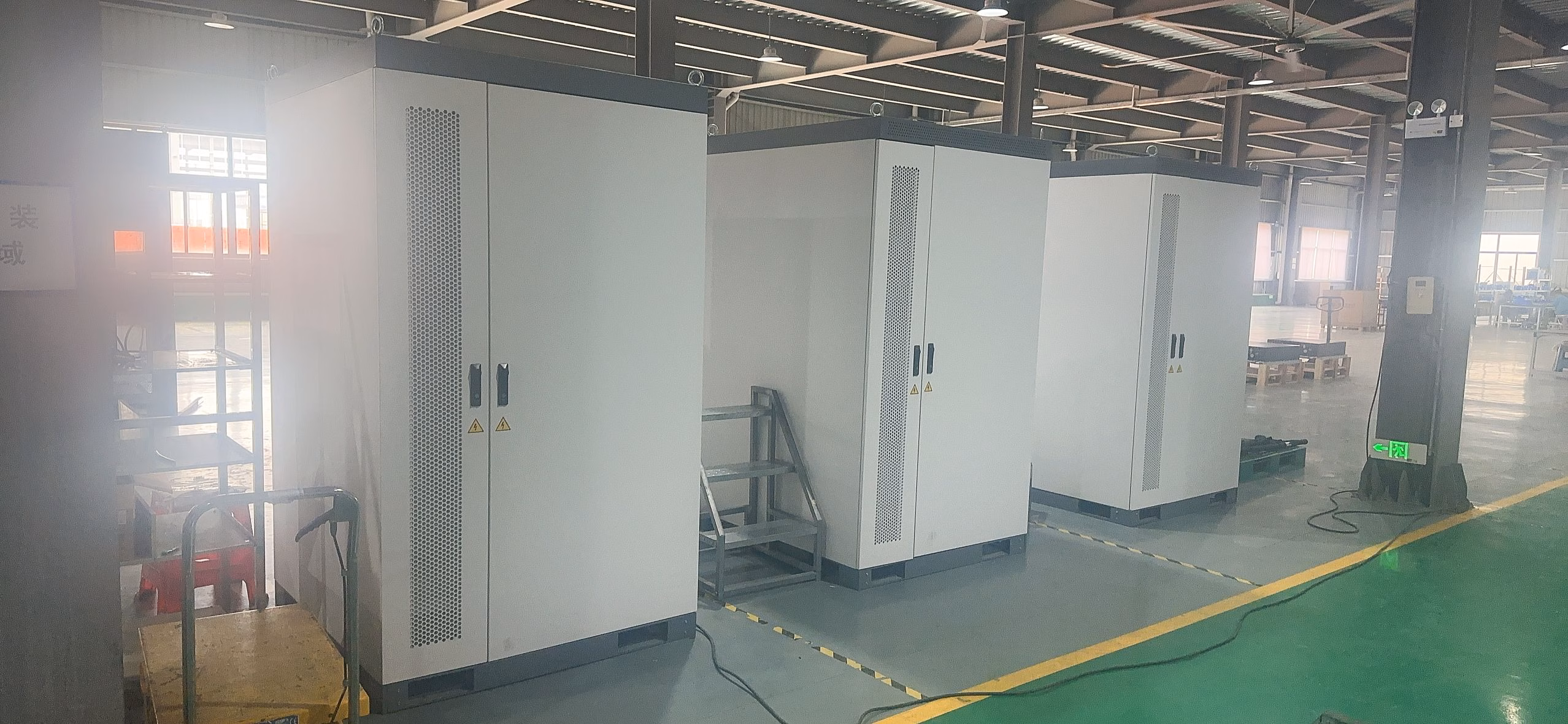

The PS-ESS125/261 integrates battery PACK, BMS, PCS, EMS, liquid-cooling unit and fire suppression into a single outdoor cabinet. Footprint ≤ 1.3 m2, supporting up to 10 cabinets in parallel (261 kWh – 2610 kWh elastic expansion). Battery-side liquid cooling + PCS intelligent air cooling ensures cell temperature difference ≤ 5°C. The system operates in both grid-connected and island modes with seamless transfer < 20 ms, providing UPS function for critical loads.
🎯 Application Positioning
Designed for 0.4 kV low-voltage distribution grids facing “source-load reconstruction” — massive distributed PV, EV chargers and high-fluctuation industrial loads. The Rock Series solves reverse overload, voltage violations, three-phase imbalance and costly transformer upgrades. It transforms distribution substations from passive load endpoints into active value centers with IRR of 15%–25%.
Six Breakthroughs • Redefining Substation Energy Storage
🔌
Plug & Play Integration
All-in-one cabinet with battery, BMS, PCS, EMS, cooling and fire system. Footprint ≤ 1.3 m2, 10‑cabinet parallel expansion.
🌊
Precise Liquid Cooling
Battery-side liquid + PCS smart air cooling. Cell ΔT ≤ 5°C. 6000 cycles @ 25°C, 0.5P. IP55 whole system, PACK IP67.
🛡️
PACK‑Level Fire Safety
PACK-level (temp/CO) + cabin 5‑in‑1 detector (temp/smoke/CO/H₂/VOC). Perfluorohexanone precision discharge + water fire interface预留.
🧠
Self‑Developed EMS
Peak shaving, demand management, anti‑reverse, load tracking, dynamic expansion, three‑phase balancing. 7×24 h cloud O&M with active fault alerts.
⚡
Seamless Island Switching
Grid‑connected / island dual mode. Transfer < 20 ms. Island mode as voltage source for UPS of critical loads.
🌍
Extreme Environment Ready
Operating temp –20°C to +50°C. Corrosion class C4‑M. Altitude ≤ 2000 m (derating to 4000 m). Noise < 70 dB.
Technical Specifications • PS-ESS125/261
Custom variants available: 105 kW / 241 kWh • parallel up to 1250 kW / 2610 kWh
Application Areas
⚡
Substation Overload Management
Auto‑discharge when transformer load > 85%
☀️
PV Integration + Anti‑Reverse
Charge at valley, discharge at peak; zero power export
⚖️
Three‑Phase Balancing
Per‑phase compensation, voltage stability, loss reduction
🔋
Emergency Backup / UPS
< 20 ms island switching for critical loads
📊
Peak Shaving & Demand Management
Tariff arbitrage + demand charge reduction
Electrical Topology • AC‑Side Parallel + Independent Battery Clusters
AC Grid • 400 V
↓
Bidirectional PCS • 125 kW
↓
LFP Battery Cluster • 261 kWh
🔵 Charging: Grid → PCS → Battery
🔴 Discharging: Battery → PCS → Grid
🔴 Discharging: Battery → PCS → Grid
Secondary BMS architecture • cell‑level precision
🛡️ Protection & Safety
Over Voltage Protection
Over Current Protection
Thermal Protection
Short Circuit Protection
EMC Compliance
PACK‑Level Fire Suppression
🔧 Maintenance & Service
📋 Routine Maintenance
Scheduled inspections, coolant level check, air filter cleaning, firmware updates via remote O&M platform.
🛠️ Troubleshooting
Remote diagnostic tools, event log analysis, proactive fault alerts. 2 h response, 24 h on‑site.
📞 Technical Support
6 regional service centers + 20+ stations. 3‑year core component warranty (extendable to 5 years).
❓ Frequently Asked Questions
What applications does the PS-ESS125/261 support?
Substation overload management, PV integration with anti‑reverse, three‑phase balancing, emergency backup/UPS, and peak shaving with demand management.
Does IMAXPWR provide customized solutions?
Yes. Custom variants include 105 kW / 241 kWh, special voltage levels, and protocol customization. Parallel expansion up to 1250 kW / 2610 kWh.
What is the cycle life and warranty?
6000 cycles @ 25°C, 90% DOD, 70% EOL. 3‑year core warranty extendable to 5 years.
How fast is grid‑to‑island switching?
Transfer < 20 ms, ensuring uninterrupted power for critical loads during grid faults.
What communication protocols are supported?
Modbus TCP/RTU, IEC 104, and MQTT for seamless integration with SCADA and EMS.
What is the expected ROI?
IRR typically ranges from 15% to 25%, driven by tariff arbitrage, demand charge reduction, and deferred transformer upgrades.
Is it suitable for harsh environments?
Yes. Operating temp –20°C to +50°C, corrosion class C4‑M, altitude ≤ 2000 m (derating to 4000 m), noise < 70 dB.
How does IMAXPWR ensure quality and safety?
Full‑process quality management, PACK‑level fire suppression, multi‑level BMS, and compliance with international standards.
