Description

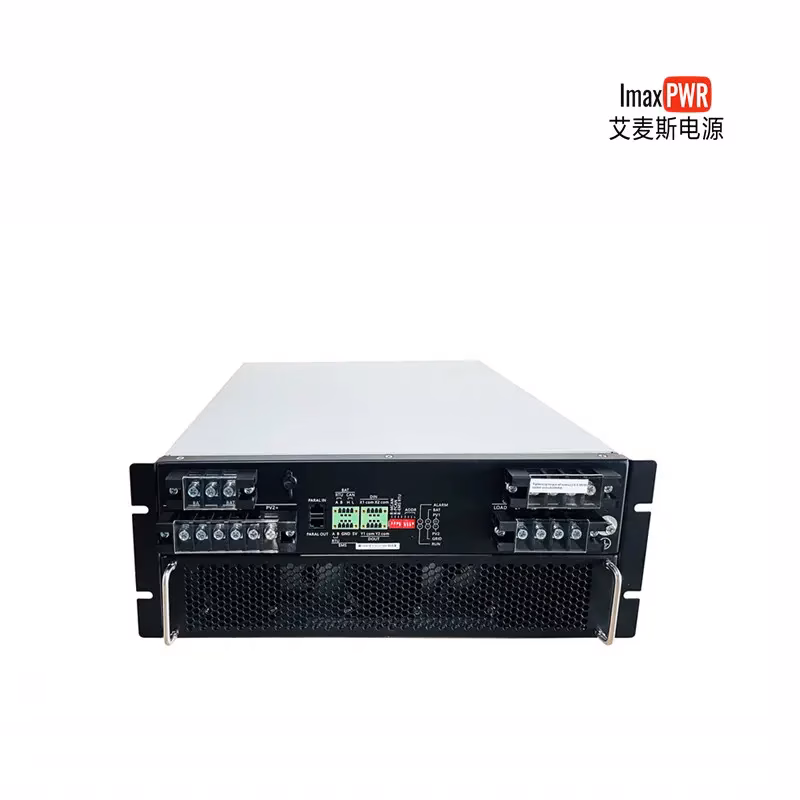

30KW/25KW Microgrid solar Hybrid inverter, An efficient and highly reliable energy storage inverter mainly developed or small and medium-sized energy storage microgrids.It supports photovoltaic access,contains a parallel and off-grid switching device,supports multiple parallel operation,supports oil-engine hybrid operation,and supports parallel and off-grid switching.Fast off-grid switching.It is suitable for various scenarios such as small industry and commerce,small island microgrids,farms,villas,and battery cascade utilization to meet the needs of different users.
High efficiency and high reliability:
Low power consumption: Low Standby Power Consumption≤25W;no-loadoperationloss < 160W.
High efficiency: Max. conversion efficiency is 97.8%.
High protection: The core control part has an IP5x protection rating,enabling stable operation in harsh Environments such as sand and dust,high salt spray etc.
Airduct isolation design: The isolation airduct design is adopted,which enhances the safety and reliability of the product.
High overload capacity: It has an instant aneous overload capacity of 150%, Enhancing the adaptability and durability of the system.
Seamless switching function: It supports seamless switching between on-grid and off-grid operation,<10ms.
Hybrid mode with oilengine: Supports hybrid operation with an oilengine offering flexible energy combination methods and enhancing energy utilization efficiency;
Three-phase independent on-grid control technology: It realizes independent control of three phases optimizes power distribution,and enhances the flexibility and efficiency of the system.
Grid adaptability: Completehig hand low voltage ride-through functions,islanding protection black start and other functions;
Parallel operation function: The AC side supports parallel grid-connected operation or off grid operation of up to 15 units,while the DC side also supports parallel operation of multiple units.
Flexible application scenarios: It is suitable for various scenarios such as small-scale industrial and commercial use,small island microgrids,farms,andvillas,meeting the specific needs of different users.
| Parameter | IM30HBG2 | IM25HBG2 | |
| DC side | |||
| Voltage(Max.) | 850 V | ||
| Voltage(Min.) | 200 V | ||
| Rated Voltage Range | 320V-850V | 320V-850V | |
| Input Current(Max.) | 100 A | 80 A | |
| PV side | |||
| Voltage(Max.) | 850 V | ||
| Voltage(Min.) | 200 V | ||
| MPPT voltage range | 300V-830V | ||
| Input Current(Max. | 32A+32A | 25A+25A | |
| AC side（On Grid） | |||
| Output power | 33 kVA | 27.5 kVA | |
| Output Current(Max. | 50A | 40A | |
| Rated Voltage | 400 V / 230V | ||
| Rated Voltage Range | -20%~ 15% | ||
| Frequency Range | 50Hz / 47Hz~52Hz | ||
| 60Hz / 57Hz~62Hz | |||
| Harmonic | < 3%（大于 30% load） | ||
| Power Factor | -100%~100% | ||
| AC side（Off Grid） | |||
| Rated Voltage | 400 V / 230V | ||
| Output Voltage Harmonic | < 1.5 % (Resistive load) | ||
| Unbalance | 100% | ||
| Frequency Range | 50/60Hz | ||
| Output Overload | 1.25/ 10S ，1.5/ 100mS | ||
| System Parameters | |||
| COM Port | HMI(Cloud Platform)：CAN\ RS485 Battery：CAN\ RS485 | ||
| DIDO | DI:2 channels DO:2 channels | ||
| Efficiency(Max.) | 98% | ||
| Installation Method | Frame-mounted | ||
| Loss | Standby<10W No-load power<100W | ||
| G.W | 35kgs | ||
| Protection | IP6X（control compartment sealed） | ||
| Temperature Range | -25–60℃ | ||
| Humidity Range | 0-99% | ||
| Cooling Method | Intelligent forced air cooling | ||
| Altitude( m) | 2000m（3000m Derating 90%m; 4000m Derating 80%） | ||
| Certification | CE | ||
| Grid Support | LVRT, HVRT, SVG | ||
