Description

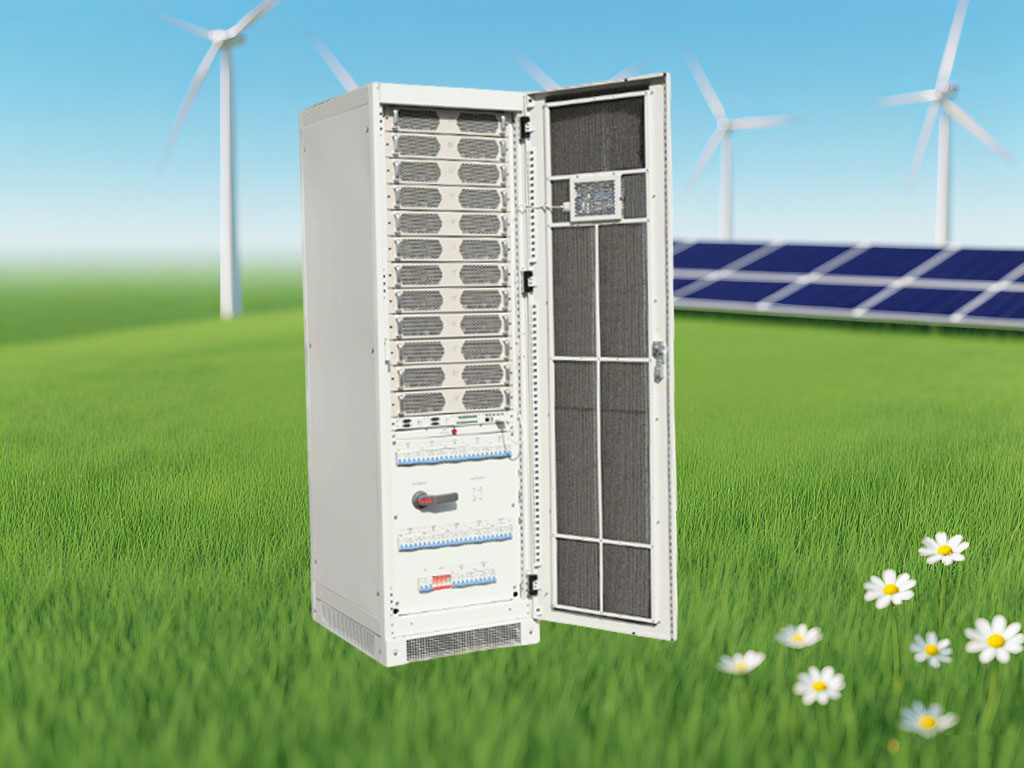

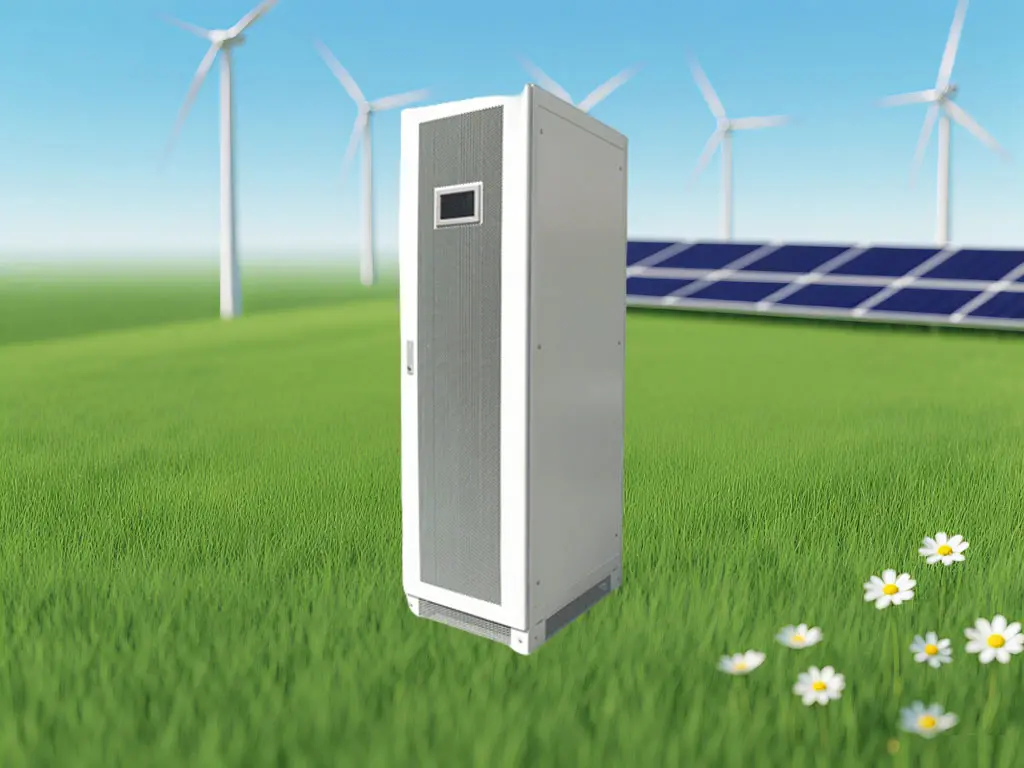

The HPCS-75040-200K on-grid and off-grid energy storage PCS converter is constructed with V2G high-frequency isolation modules. It can be flexibly configured into different power levels and battery voltages according to requirements. Combined with STS, it can achieve seamless on-grid and off-grid switching to ensure that the load does not lose power.
Product Features:
- More secure and reliable:
- Full high-frequency isolation design ensures the safety between the battery and the grid/load;
- Battery-friendly, with battery grouping access, reducing battery string connection, avoiding battery circulation issues, and extending battery life;
- Compatible with DC sides of battery grouping access modules from different manufacturers and with different characteristics;
- Grid-friendly, with AC sides connected in parallel, exhibiting stand-alone characteristics.
- Higher efficiency:
- High-frequency isolation between the battery and the grid eliminates the power frequency transformer, with high-frequency isolation efficiency reaching over 95%.
- More intelligent and user-friendly:
- Equipped with an STS module to achieve seamless switching during grid disconnection;
- Covers multiple battery voltage levels for passenger vehicles (100V~750Vdc), with a wide battery voltage range.
- Lower cost:
- Compared to traditional modular energy storage, high-frequency isolation eliminates the power frequency isolation transformer and indirect costs (such as cabinets and fans), resulting in low system cost.
- More flexible configuration:
- Supports 19-inch standard rack installation with a compact structure;
- Modular hot-swappable design for flexible system configuration;
- Flexibly configure energy storage converters with different power levels and battery voltage levels according to demand.
Product Specification Parameters:
| Specification Parameters | High-Frequency Isolated Energy Storage PCS |
|---|---|
| Charging Section | |
| AC Side Parameters | |
| Rated grid voltage | 400Vac (can be set to 380/400/415Vac) |
| Grid voltage range | 304Vac ~ 485Vac |
| Grid voltage frequency | 50/60±10% (self-adaptive to 50Hz/60Hz two modes) |
| Voltage system | Three-phase four-wire (3W+PE) |
| Input current | ≤380A |
| Power factor | ≥0.99, full load |
| Current harmonic | <3%, full load |
| Battery Side Parameters | |
| Output voltage | 200 ~ 750VDC, rated 500VDC |
| Output rated current | 400A |
| Rated power | 200kw |
| Power derating | 200~500VDC, constant current 40A; 500~750VDC, constant power |
| Charging efficiency | 95%max (using SiC devices), 94% (using Si devices) |
| Temperature accuracy | ±0.5% |
| Voltage stabilization accuracy | ±1% |
| Discharging Section | |
| Battery Side Parameters | |
| Battery voltage range | 200 ~ 750VDC |
| Discharging current | 40A Max |
| AC Side Parameters | |
| V2G (grid-connected discharging) | |
| Grid voltage range | 304Vac ~ 485Vac |
| Grid voltage frequency | 50/60±10% (self-adaptive to 50Hz/60Hz two modes) |
| Output power | 200KW |
| Power derating | Grid voltage 304Vac~323Vac linear derating |
| Efficiency | 95%Max (using SiC devices), 94% (using Si devices) |
| V2L (off-grid discharging) | |
| AC off-grid voltage | 380Vac/400Vac/415Vac |
| Output voltage stabilization accuracy | ±1% |
| AC off-grid frequency | 50/60Hz |
| Off-grid output voltage THDu | ≤2% (linear load) |
| Other Performance | |
| Protection Functions | |
| Overvoltage protection | Equipped |
| Overcurrent protection | Equipped |
| Short-circuit protection | Equipped |
| Over-temperature protection | Equipped |
| Other Parameters | |
| Working temperature | -30 ~ 65°C, output power derates above 55°C |
| Storage temperature | -40 ~ 75°C |
| Dimensions (widthdepthheight) | 6008002000mm |
| Weight | 350kgs |
| Protection level | IP20 (whole machine) |
| Cooling method | Intelligent speed regulation, forced air cooling |
| Certification Standards | Performance/Safety/EMC GB/T34120-2017 Technical Specification for Energy Storage Converters in Electrochemical Energy Storage Systems |
