Description
BIM15060 is a single-phase AC-DC bidirectional converter that directly connects to the power grid and the battery. The power grid can charge the battery through this converter, and the battery can discharge to the power grid through it. It features high performance, high reliability and high power density
Product Features:
- AC-DC bidirectional conversion
- Modular design
- High-frequency transformer isolation
- Bidirectional conversion efficiency greater than 91%
- Ultra-wide bidirectional input/output voltage range: 5-150Vdc
- Wide operating temperature range: -40 ~ 70°C
- Supports hot-swapping
- CAN & RS485 communication
- Hardware address
Product Specification Parameters:
| BIM15060 | |
|---|---|
| Basic Parameters | |
| Dimensions | 44mm141.4mm333mm |
| Weight | 1.5kg |
| Cooling | Air cooling |
| Operating temperature | -40~70°C, derating above 45°C |
| Relative humidity | 0~95%, no condensation |
| Altitude | ≤4000m, derating above 2000m |
| Efficiency | Overall efficiency ≥91%; Inverter efficiency ≥91% |
| Output voltage accuracy | ±1% |
| Output current accuracy | ±1% |
| Rectification/inversion mode switching time | 10ms |
| Input/Output Characteristics | |

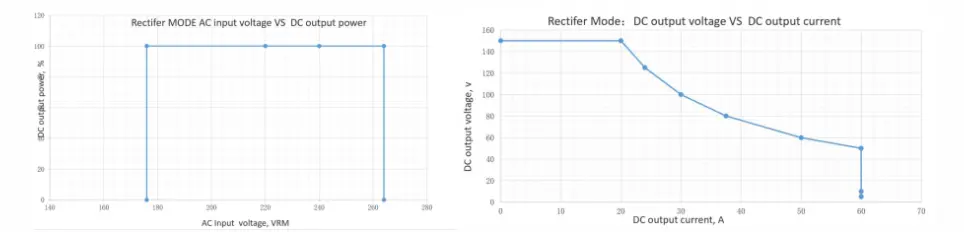

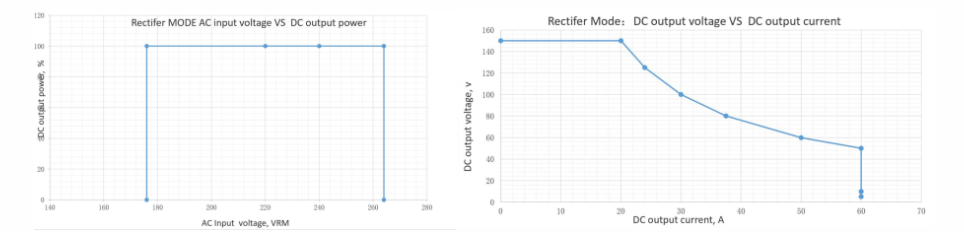

| Rectification Mode | |
| AC input voltage range | 176~264Vac |
| Input frequency range | 50/60Hz, ±3Hz |
| Power factor (cosΦ) | ≥0.99 |
| Current harmonic distortion (THDI) | ≤3% |
| Output voltage range | 5~150Vdc |
| Maximum output power | 3000W |
| Maximum output current | 60A |

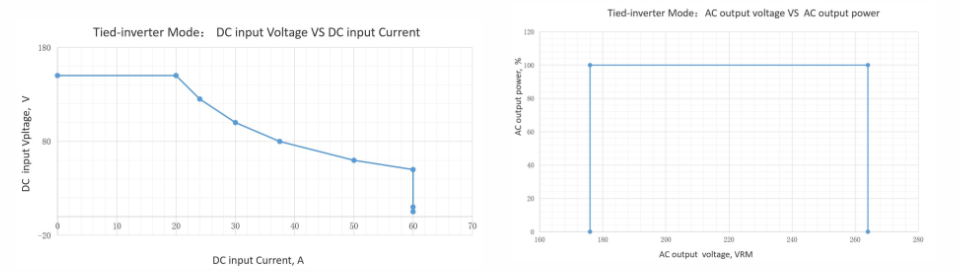

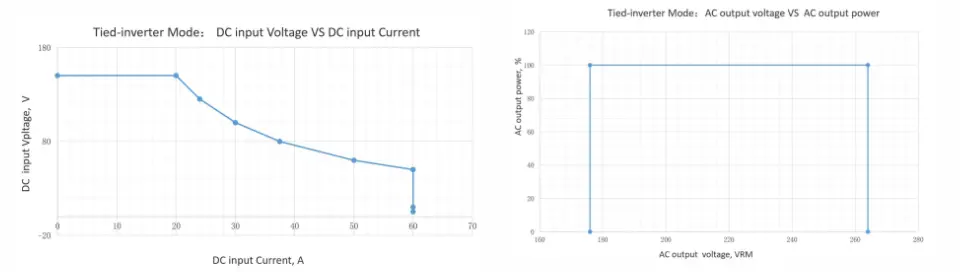

Inverter and Grid-Connection Mode
| Input Characteristics | |
| DC input voltage range | 5-150Vdc |
| Maximum input current | 60A |
| Maximum input power | 3000W |
| Output Characteristics | |
| AC grid-connection voltage range | 176~264Vac |
| AC grid-connection frequency range | 50/60Hz±3Hz |
| AC grid-connection THDI | ≤3% |
