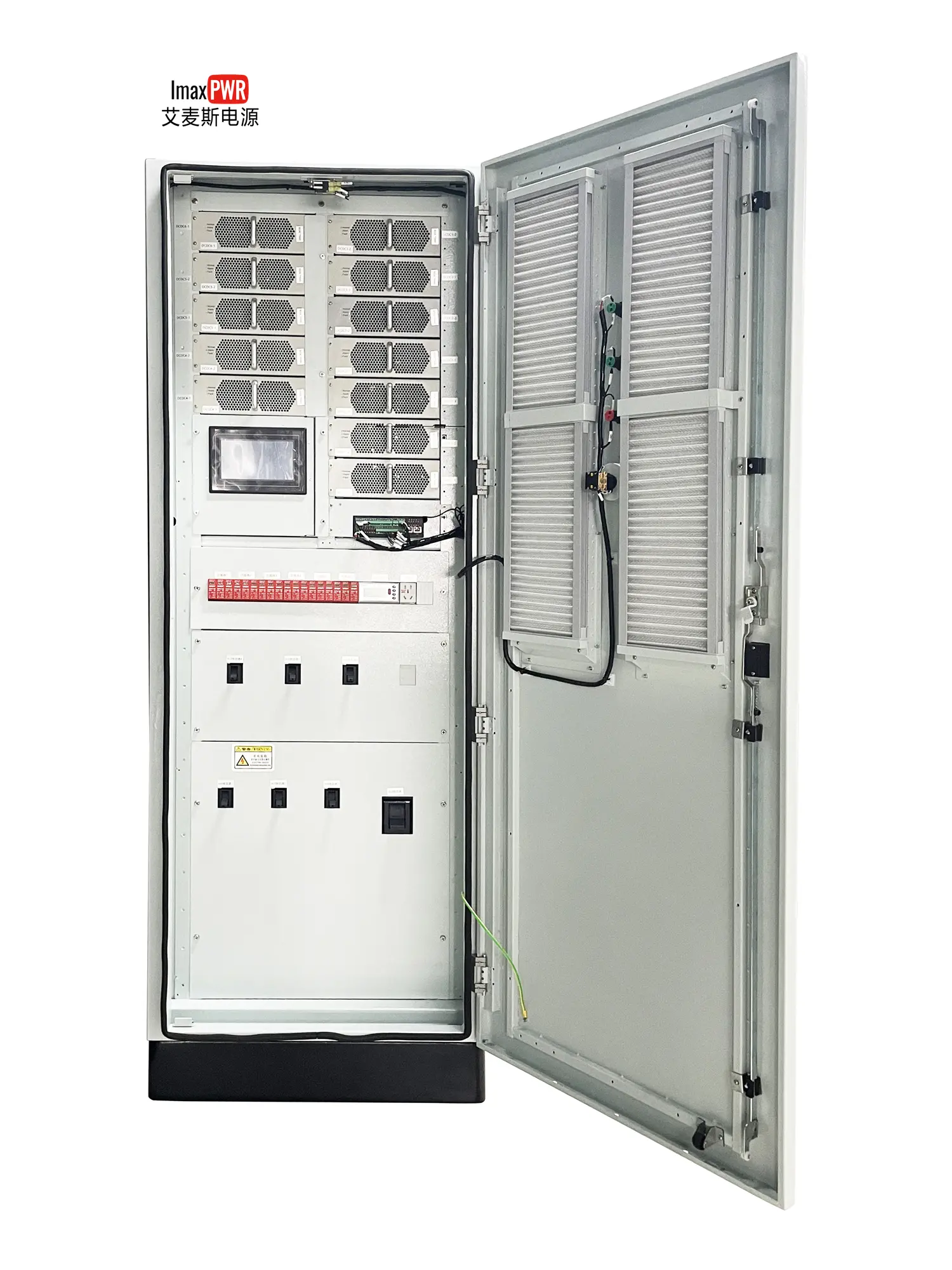

150KW DC40V~300V Bidirectional DC-DC converter for energy storage system

150KW DC40V~300V Bidirectional DC-DC converter for energy storage system

150kW Bidirectional DC-DC — 150 kW bidirectional DC-DC converter delivering 40-300 Vdc from a 600-850 Vdc bus.

  • DC bus: 600-850 Vdc, ≤25 A
  • Output: 40-300 Vdc, 150 Vdc rated, 1000 A maximum
  • Rated power: 150 kW
  • Output profile: constant power above 150 Vdc, constant current 100 A below 150 Vdc
  • Charging efficiency: 97% maximum
  • Regulation: voltage ±0.5%, current ±1%

PRODUCT DOCUMENTATION

System Selection Guide 2026View online | Download PDF
Module Selection Guide 2026View online | Download PDF
Company Profile 2026View online | Download PDF

Contact: info@imaxpwr.com | +86-13760212825 (WhatsApp)

Description

[Product Description]

The DC/DC module adopts high frequency isolation bidirectional conversion technology, that is, soft switching resonance technology, which has high efficiency, and the converter energy flows bidirectional, and the charge and discharge are automatically converted. DSP+CPLD design, support module parallel function, support CAN/RS485 communication, easy to communicate with third-party equipment and control.
The power module supports MPPT photovoltaic access, integrates MPPT function, and is widely used in common DC bus application scenarios, such as optical storage and charge, storage and charge inspection, battery echelon utilization of energy storage, vehicle network interaction V2G and other multi-energy complementary scenarios, the battery and direct current bus high frequency isolation, it is the best choice for the energy two-way flow application industry.

[Product Advantages]

DSP+CPLD digital control More safe and reliable Reliable

Parallel function, convenient power expansion, up to 16 modules parallel;

High efficiency up to 97%.

More intelligent and friendly

Lower cost

More flexible configuration

[Application Fields]

Optical storage and Charge or Storage and Charge multi-energy complementary application

Vehicle mobile energy storage

Parallel balanced control of UPS battery pack

Product name 150kW Bidirectional  DCDC power module for energy storage system
Product model BIDC300100-150kW
Charging
DC bus side parameter DC bus voltage range 600~850VDC
DC bus current ≤25A
Battery  side parameter Output voltage 40~ 300VDC, Rated 150VDC
Output rated current 1000A MAX
Output rated power 150kW
Output power derating >=150Vdc, constant power 15kW ;       <150Vdc, constant 100A current.
Charge efficiency 97% Max
Voltage regulation accuracy ±0.5%
Current regulation accuracy ±1%
Ripple factor <1%Vo
Discharging
Battery  side parameter Voltage range 40~300VDC
Battery side current 1000A MAX
DC bus side parameter DC bus voltage range 600~850VDC
Output rated power 150kW
Output power derating battery side : >150Vdc, constant power 180KW,   <150V, constant 1200A current.
Discharge efficiency 97% Max
Other feature
Protectfunction OV protection Available
OC protection Available
SC protection Available
OT protection Available
Other parameter Operating temperature -30~65°C, >=55°C output power derating
Storage temperature -40~75°C
Noise <60dB
Dimension 226*86*1500mm(W*H*D)
Weight 200kgs
Level of protection IP20 (single module)
Type of cooling Intelligent speed regulation, forced air cooling
Approval safety <<GB/T    34120-2017    technical     specification    for    power conversion system of electrochemical energy storage system>>
standards EMC GB 9254-2008
