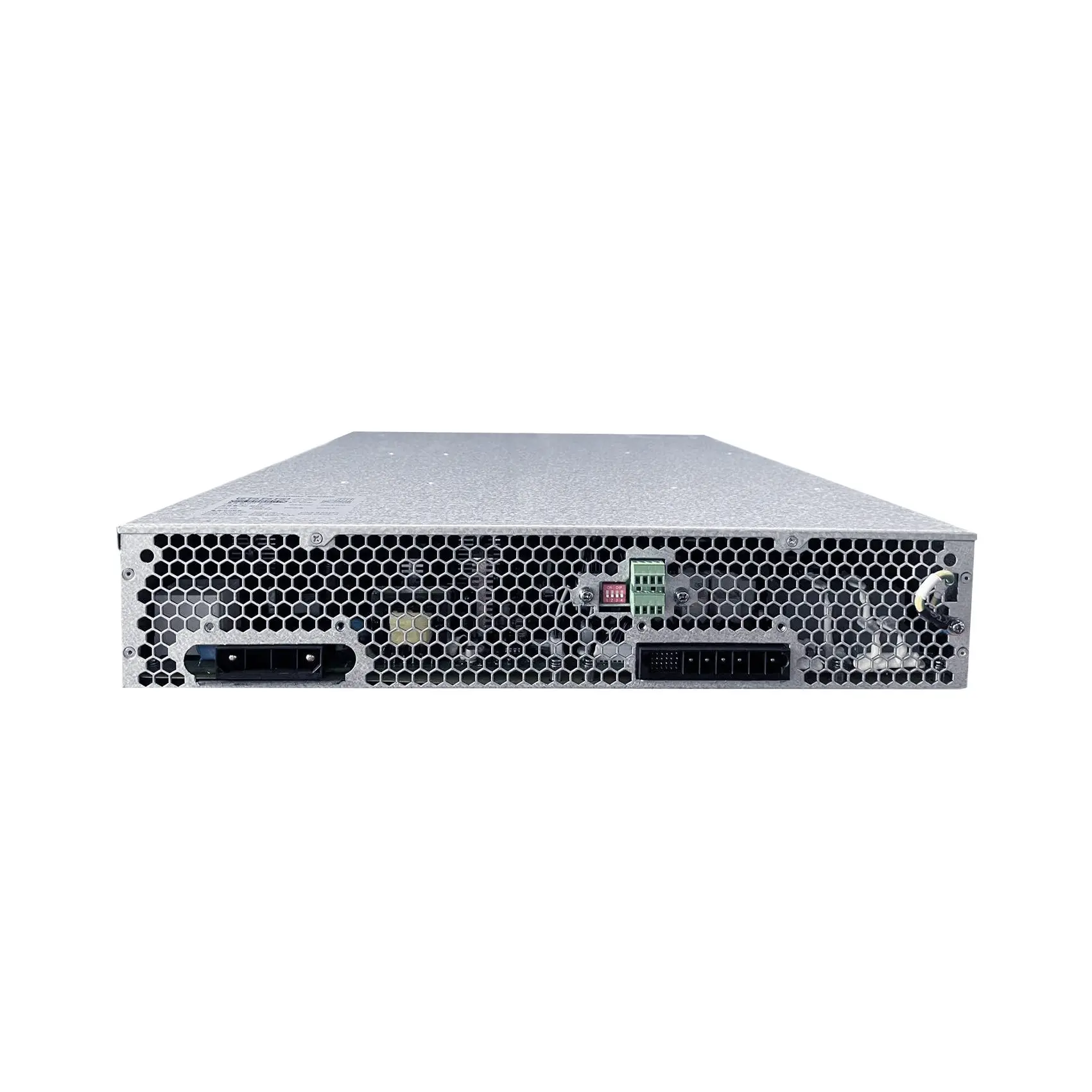

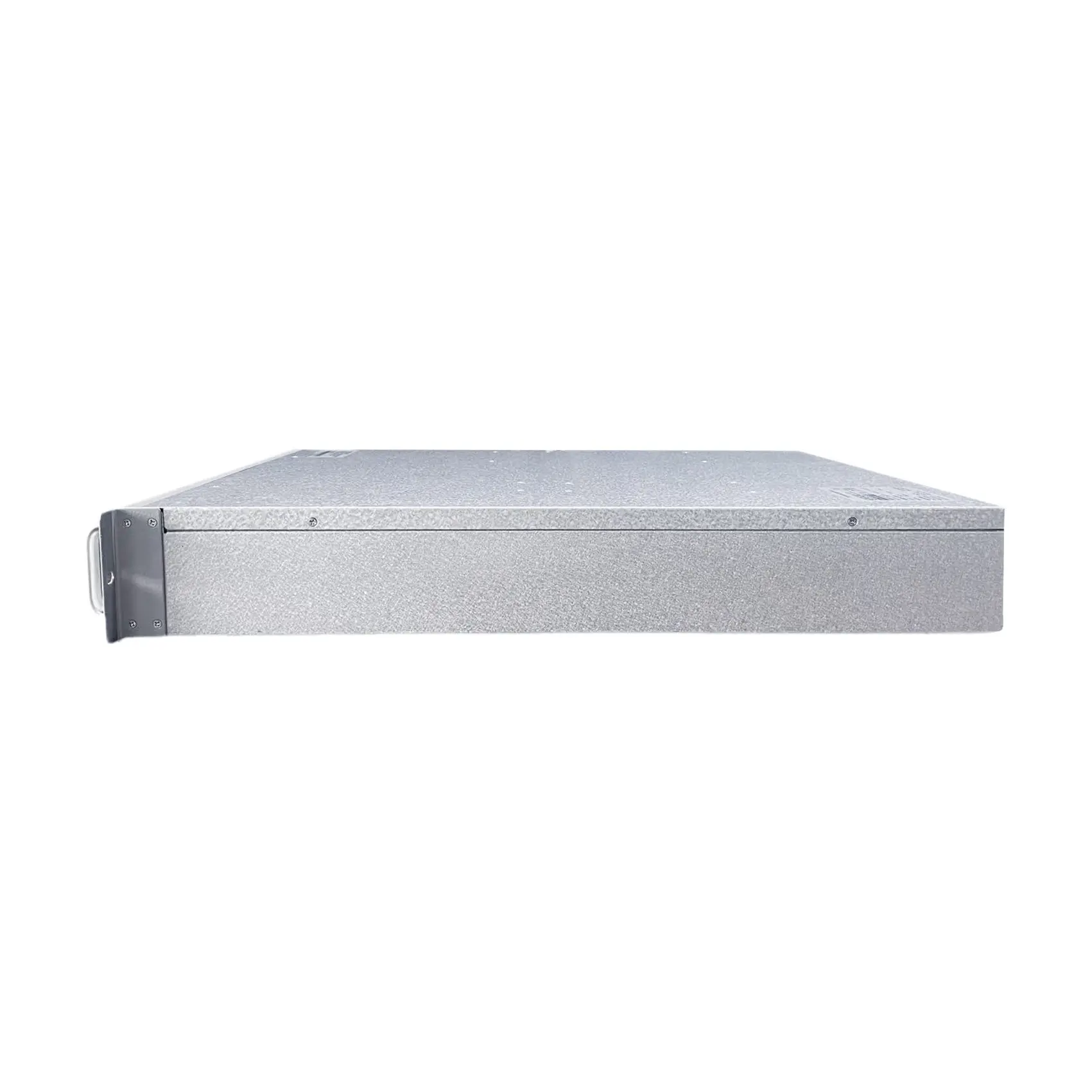

20kW DC200~750V Bidirectional AC/DC Power converter

20kW DC200~750V Bidirectional AC/DC Power converter

20kW Bidirectional AC/DC — 20 kW bidirectional AC/DC power converter with a 60-750 Vdc DC side.

  • Grid: 400 Vac configurable to 380/400/415, range 304-485 Vac, 50/60 Hz ±5%
  • Voltage system: 3-phase 4-wire with PF ≥0.99 and current harmonic below 3%
  • Input current: ≤38 A
  • DC side: 60-750 Vdc rated 500 V, 40 A rated

PRODUCT DOCUMENTATION

System Selection Guide 2026View online | Download PDF
Module Selection Guide 2026View online | Download PDF
Company Profile 2026View online | Download PDF

Contact: info@imaxpwr.com | +86-13760212825 (WhatsApp)

Description

Features:

  • More safety and reliability,Reliable parallel function, convenient power expansion, up to 12 modules in parallel;
  • Higher efficiency,the high-frequency isolation efficiency is higher, up to 95%;
  • More intelligent and friendly;
  • Lower cost The high-frequency isolation saves the power frequency transformer and the system cost is low;
  • More flexible configuration,Module hot swap design, flexible system configuration.
  • Cooperate with STS module, support seamless switching between on grid and off grid;
    Covering multiple battery voltage  levels of passenger vehicle (60V~750Vdc), the  voltage range of battery is wide;
    Wide grid voltage range and 50 / 60Hz voltage frequency adaptive capability.

Specifcations:

Product name 20kW Bidirectional AC/DC power converter
Product model BIM75040
Charging
AC side parameter Rated grid voltage 400Vac  (380/400/415Vaccanset)
Grid voltage range 304Vac~485Vac
Grid voltage frequency 50/60±5% (50Hz/60Hz Both modesself-adaption)
Voltage systems Three-phasefour-wire  (3W+PE)
Input current ≤38A
power factor ≥0.99,full load
Current harmonics <3%,full load
Output voltage 60~750VDC,rated500VDC
Battery side parameter Output rated current 40A
Rated power 20kW
Power derating 304Vac~485Vac input,full load output
Chargeefficiency 95%max    (Use SiC components) ,94%  (Use Si components)
Stabilized voltage ±0.5%
precision
Stabilized current ± 1%
precision
Ripplefactor <1%Vo
Discharging
Battery side parameter Rated grid voltage 60~750VDC
Discharging current 40A Max
AC side parameter V2G(on-grid discharging)
Grid voltage range 304Vac~485Vac
Grid voltage  frequency 50/60±5%(50Hz/60HzBoth modesself-adaption)
Outputpower 20kW
Efficiency 95%max    (Use SiC components) ,94%  (Use Si components)
Other feature
Protect function OV protection Available
OC protection Available
SC protection Available
OT protection Available
Other parameter Operating temperature -30~65℃,55℃ above output power derating
Storage temperature -40~75℃
Noise <60dB
Dimension 442*575*86mm(W*H*D)
Weight 21Kgs
Level of protection IP20(single module)
Cooling method Intelligent speed regulation, forced air cooling
