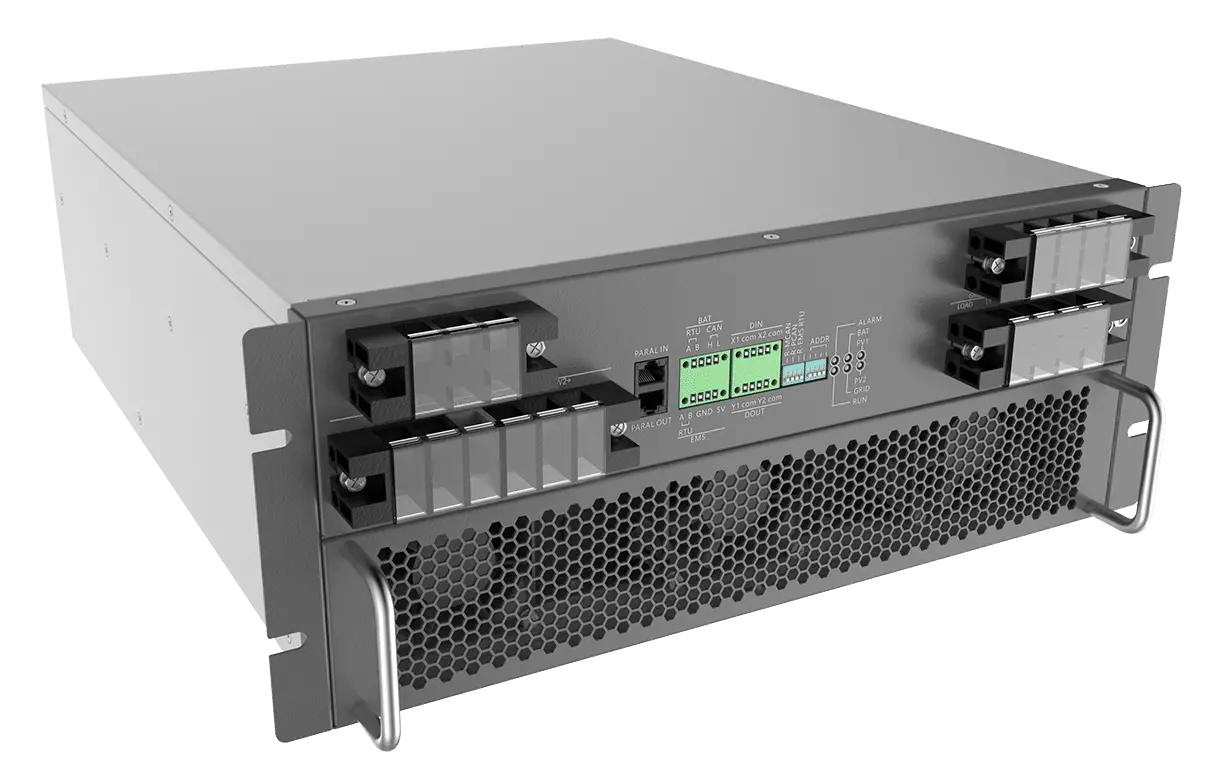

HI30KW 30KW hybrid converter PCS MPPT DCDC EMS STS

HI30KW 30KW hybrid converter PCS MPPT DCDC EMS STS

HI30KW — 30 kW hybrid converter integrating PCS, MPPT, DCDC, EMS and STS.

  • Voltage: 200-850 V with MPPT range 300-830 V
  • Output: 400/230 V, 50/60 Hz
  • Output ripple: below 1.5% on resistive load
  • Overload: 1.25 times for 10 s, 1.5 times for 100 ms
  • Power factor: -100% to 100%

PRODUCT DOCUMENTATION

System Selection Guide 2026View online | Download PDF
Module Selection Guide 2026View online | Download PDF
Company Profile 2026View online | Download PDF

Contact: info@imaxpwr.com | +86-13760212825 (WhatsApp)

Description

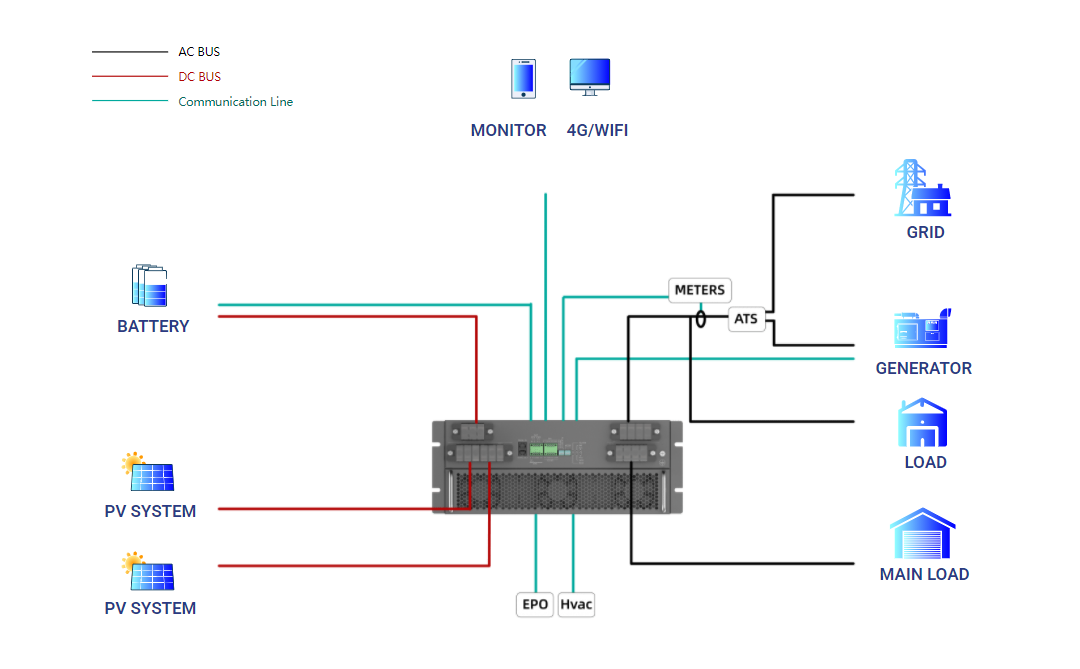

  This product is a highly efficient and reliable energy storage inverter mainly developed for small and medium-sized energy storage microgrids. It supports photovoltaic connection, is equipped with EMS, and features an on-grid and off-grid switching device. It supports parallel operation of multiple units, hybrid operation of oil engines, and rapid on-grid and off-grid switching.

Product Features:

  • High efficiency and reliability:
    • Low power consumption: Standby power consumption ≤15W, no-load operating loss less than 100W.
    • High efficiency: Maximum conversion efficiency of 97.8%.
    • Air duct isolation design: Adopts isolated air duct design, improving product safety and reliability.
    • High overload capacity: Equipped with 150% overload capability, enhancing system adaptability and durability.
    • Seamless switching function: Supports seamless switching between grid-connected and off-grid modes, ensuring continuity and stability of power supply.
    • High protection level: Features an IP6X protection rating, capable of stable operation in harsh environments such as dust and salt spray protection.
  • Functions:
    • Oil-electric hybrid mode: Supports oil-electric hybrid operation, providing flexible energy combination methods and improving energy utilization efficiency.
    • Three-phase independent grid-connection control technology: Achieves three-phase independent control, optimizing power distribution and enhancing system flexibility and efficiency.
    • Seamless switching: Grid-connected and off-grid seamless switching (less than 5ms).
    • Grid adaptability: Complete high-low voltage ride-through function, islanding protection, black start, and other functions.
    • Supports multi-machine parallel operation on the DC side.
    • Flexible application scenarios: Suitable for various scenarios such as small-scale commercial operations, small island microgrids, farms, villas, etc., meeting specific needs of different users.
    • Parallel operation function: Supports 15 units of parallel grid-connected operation and multi-machine parallel operation on the DC side.
  • Convenience:
    • Communication and monitoring: Supports multiple communication protocols and mainstream BMS, facilitating remote monitoring and management.

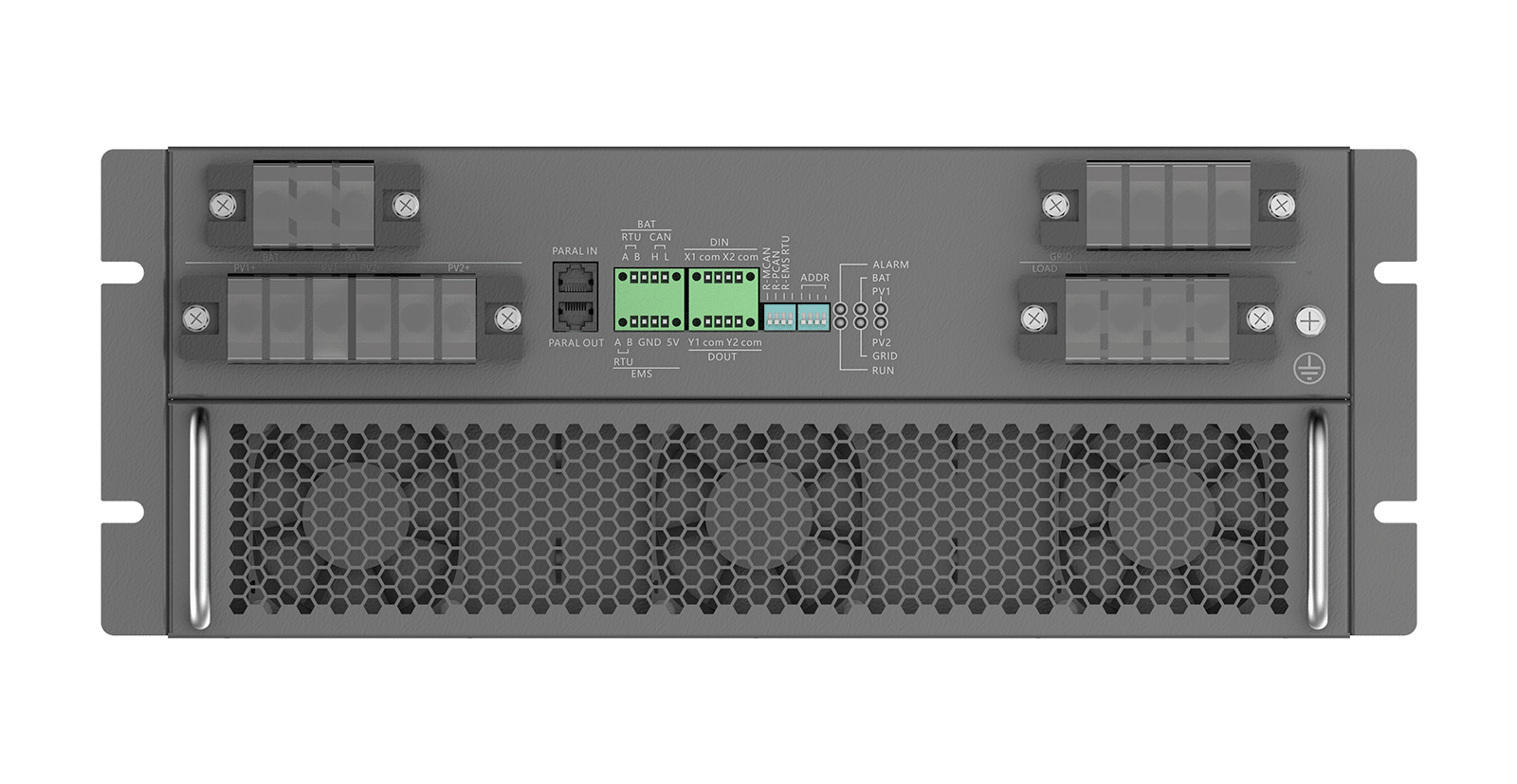

    • Maintainability: Front wiring and front maintenance.
    • Fault protection: Comprehensive fault protection and fault recording functions.
    • Efficient energy management: Built-in EMS (energy management system), supports multi-device parallel operation, improving the intelligence level of energy management, self-use, economic mode, grid-connection priority, etc.
    • Wide voltage range: Suitable for voltage inputs with various battery configurations, with strong adaptability, capable of meeting energy demands of different capacity requirements.
    • Better battery compatibility and higher cost-effectiveness, as low as 200V, for example, 30kW/20-70kWh (100AH), 30kW/(60-215)kWh (280AH).

Product Specification Parameters:

Specification Parameters HI30KW HI25KW
DC Side
Maximum Voltage 850V
Minimum Voltage 200V
Rated Voltage Range 320V~850V 320V~850V
Maximum Input Current 100A 80A
PV Parameters
Maximum Voltage 850V
Minimum Voltage 200V
MPPT Voltage Range 300V~830V
Maximum Input Current 32A+32A 25A+25A
AC Side (Off-grid)
Rated Voltage 400V /230V
Output Voltage Ripple <1.5% (resistive load)
Imbalance 100%
Frequency Range 50 / 60Hz
Output Overload 1.25/10s, 1.5/100ms
AC Side (Grid-connected)
Output Power 33KVA 27.5KVA
Maximum Output Current 50A 40A
Rated Voltage 400V /230V
Rated Voltage Range -20%~15%
Frequency Range 50 Hz /47Hz~52Hz
60 Hz /57Hz~62Hz
Ripple <3% (>30% load)
Power Factor -100%~100% (see figure below)
System Parameters
Communication Interface HMI (cloud platform): CANRS485
Battery: CANRS485
DIDO DI:2 channels; DO: 2 channels
Maximum Efficiency 97.8%
Installation Method Rack-mounted
Loss Standby <10w, no-load power <100w
Weight 35kg
Protection IP 6X (control cabinet sealed)
Temperature Range -25°C–60°C
Humidity Range 0~99%
Cooling Method Intelligent forced air cooling
Altitude 2000m (derating 90%/80% at 3000m/4000m respectively)
Certification CE
Grid Support LVRT, HVRT, SVG
