PORTABLE ALL-IN-ONE ESS SERIES

IMAX-ESS 1000W+2009Wh

✨ Core Features & Advantages

Integrated Inverter & BMS

Compact all-in-one design combining inverter and battery management system for reliable performance.

Solar Charging Support

Compatible with solar panels, supporting renewable energy charging with wide MPPT range.

Long Cycle Life

Up to 8000 charge-discharge cycles for extended service life and cost-effective operation.

All-Round Protection

Comprehensive safety mechanisms including overcharge, over-discharge, overcurrent, short-circuit, and overtemperature protection.

Wide MPPT Range

Supports PV working voltage range from 10-55Vdc for flexible solar system compatibility.

USB Output Support

Built-in USB charging port for convenient powering of mobile devices and accessories.

📋 Specifications Parameter

Category / Item	ESS 1000W+2009Wh
Inverter / Charger
Rated AC Output Power	1000W
Output Voltage Waveform	Pure Sine Wave
Output Voltage	185 ~ 230VAC 50Hz
Low DC Warning Point	≤19%
Low DC Cut-off Voltage	5.8Vdc
Low DC Warning Return Voltage	>20%
Charging Power (Utility and solar together)	800W Max.
Bulk Charging Voltage	7.2Vdc
Float Charging Voltage	7.0Vdc
AC Input
Nominal Input Voltage	230Vac
Low Loss Voltage	90Vac±7
Low Loss Return Voltage	100Vac±7
High Loss Voltage	280Vac±7
High Loss Return Voltage	270Vac±7
Max AC Input Voltage	300Vac
Nominal Input Frequency	45 ~ 65Hz
AC Charging Power	800W Max.
Solar Input
Nominal PV Voltage	38Vdc
PV Array MPPT Voltage Range	13Vdc ~ 55Vdc
Max PV Array Open Circuit Voltage	56Vdc
Solar Charging Power	550W Max.
Lithium Iron Battery
Capacity	2009.6Wh
Nominal Battery Voltage	6.4Vdc
Typical Capacity	314Ah
Max.Charge Current	220A
Max.Discharge Current	220A
Operation Voltage Range	5.8Vdc ~ 7.2Vdc
Operation Temperature	-10℃ ~ +50℃
DC Output
DC Output Power	5W Max.
DC Output Socket	1pcs 5V1A USB charger
Display Function	LED Indicator
LED Indicator	4pcs SOC indicators, 1 pcs working status indicators
Protection
Protection Features	Overcharge protection, Overdischarge protection, Overcurrent protection, Shortcircuit protection, Overtemperature protection
Ambient
Noise (dB)	<40dB(1meter)
Working Temperature	-10℃ ~ +50℃
Humidity	5~95% (no condensation)
Sea Level (m)	≤2000
Dimension
Product Size (L×W×H, mm)	240×225×360mm
Package Size (L×W×H, mm)	286×271×416mm
Net Weight (NW Kg)	20.9Kg
Gross Weight (GW Kg)	22.7Kg

🌍 Typical Application Scenarios

🏕️

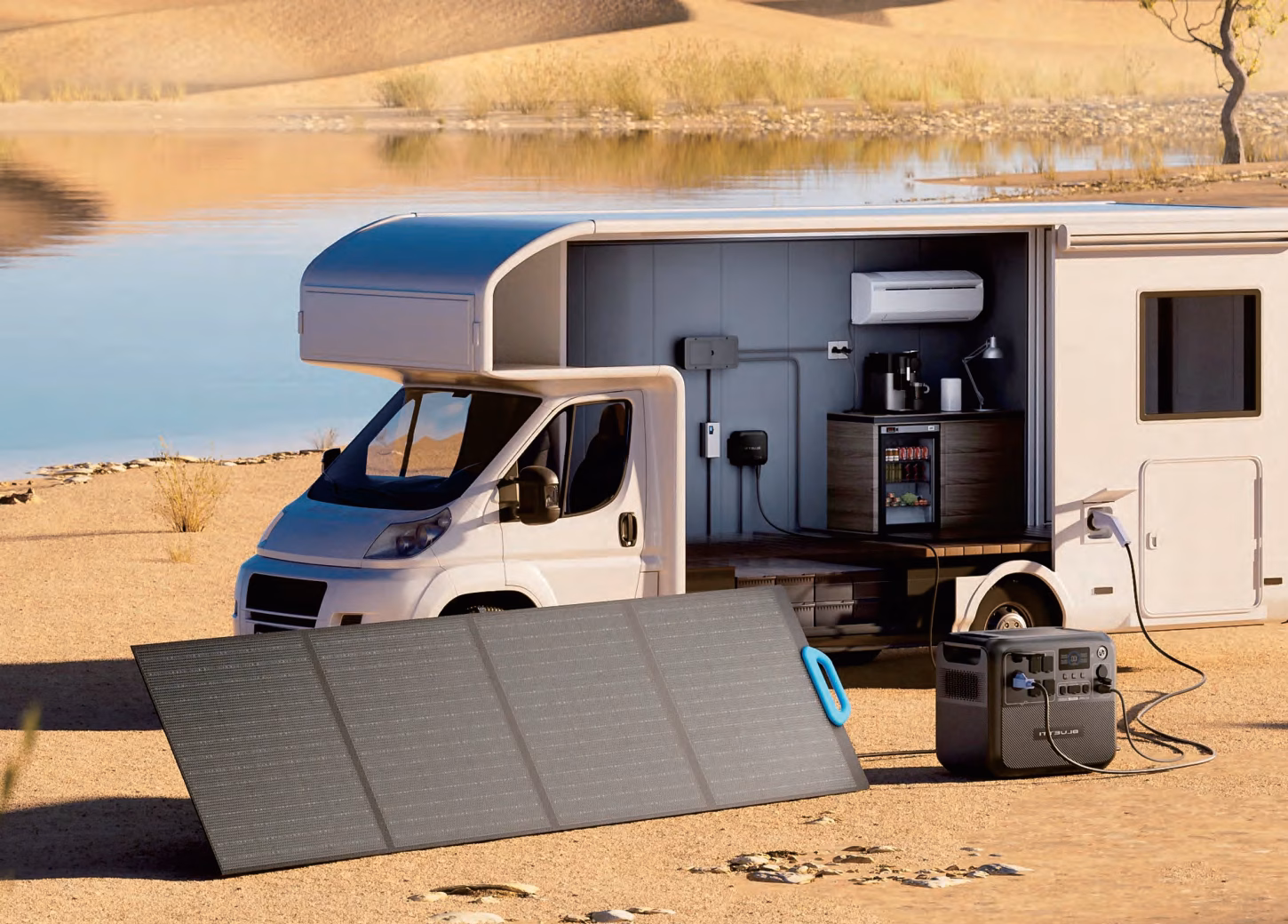

Outdoor Camping & RV

Reliable off-grid power for camping trips, RV adventures, and outdoor events.

🔌

Emergency Backup Power

Essential backup power for homes and small businesses during blackouts or emergencies.

⛺

Remote Work Sites

Portable power solution for construction sites, field operations, and remote locations.

📸

Media & Filming

Stable power for cameras, lights, and equipment during outdoor shoots and events.

⚡ Electrical Topology & Working Modes

PV Input (10-55V)

AC Grid Input

Integrated Inverter & BMS

Battery Bank

AC Output

USB Output

The system supports three working modes: Solar Charging, AC Charging, and Battery-to-AC/USB Discharging, with seamless switching managed by the integrated BMS.

❓ Frequently Asked Questions

Q: How long does it take to fully charge the unit?

A: Using both AC and solar input simultaneously, the ESS 1000W+2009Wh can be fully charged in approximately 3-4 hours depending on solar conditions.

Q: Can I use the unit while it’s charging?

A: Yes, the system supports pass-through charging, allowing you to power devices while simultaneously charging the battery via AC or solar input.

Q: What is the lifespan of the battery?

A: The LiFePO4 battery is rated for over 8000 cycles, translating to more than 10 years of typical use with proper care and maintenance.

Q: Is the unit suitable for indoor use?

A: Yes, the unit operates silently (under 40dB) and produces no emissions, making it safe for indoor use during power outages or as a backup power source.
