Description

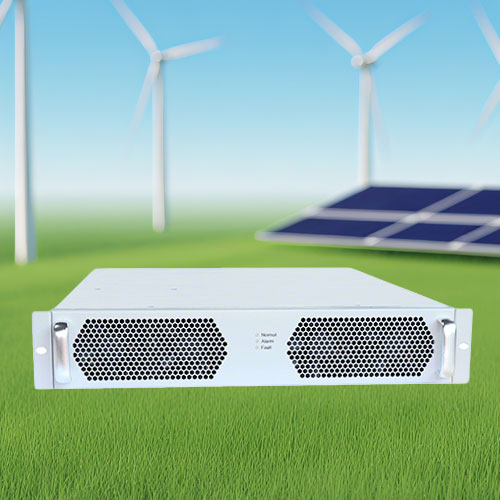

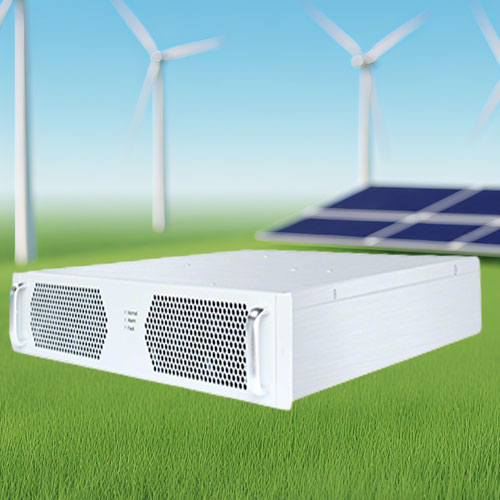

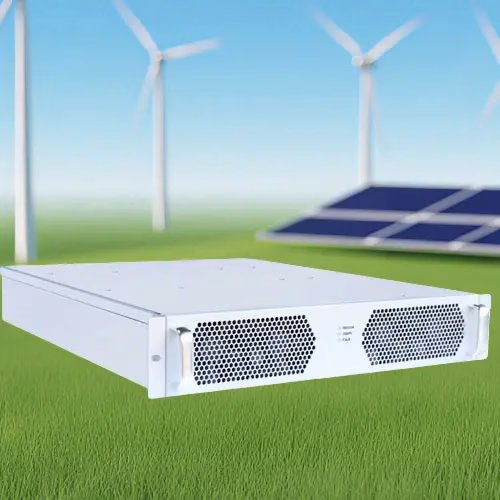

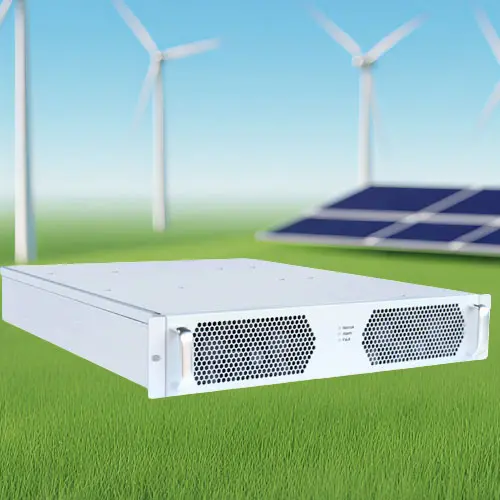

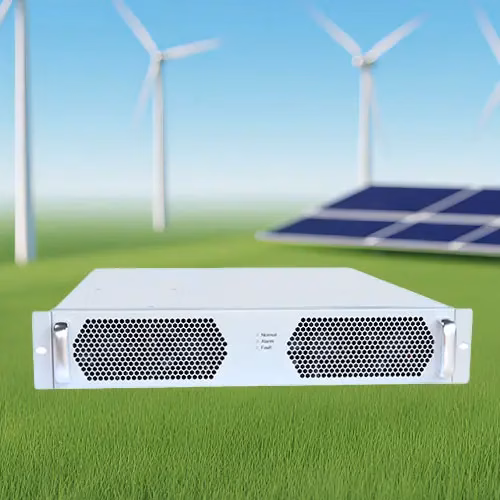

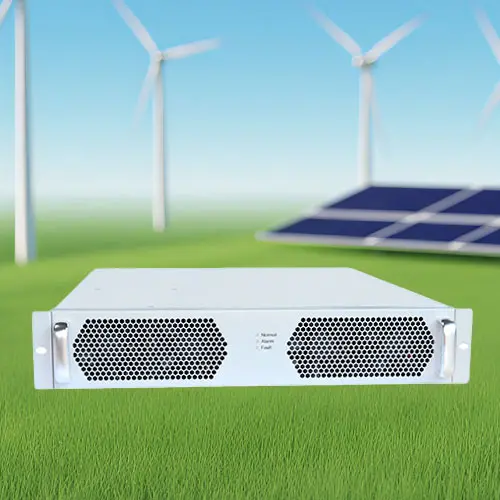

Product Description
The core of V2G (Vehicle to Grid) technology enables bidirectional interaction between electric vehicles (EVs) and the power grid. By leveraging EVs’ energy storage systems as a supplement to the grid and renewable energy sources, it utilizes peak-valley electricity price differences. EVs charge during low-demand periods and feed energy back to the grid during peak-demand periods, optimizing storage utilization.
The product’s power section employs advanced three-level technology in the AC/DC conversion stage for efficient bidirectional AC-DC transformation. In the DC/DC stage, high-frequency isolated bidirectional conversion (soft-switching resonant technology) ensures high efficiency and automatic energy flow reversal during charging/discharging. A dual-DSP architecture guarantees stable AC/DC and DC/DC performance. It supports module paralleling and includes CAN/RS485 communication interfaces for third-party device integration.
This power solution is widely applied in energy storage, battery formation/grading, emergency power supplies, and equipment aging tests, making it the top choice for industries requiring bidirectional energy flow.
Product Advantages
Safer and More Reliable
- Full high-frequency isolation design ensures electrical safety between batteries and the grid/loads, reducing risks.
- DSP+CPLD digital control with multi-level hardware/software protections (overcurrent, overvoltage, overtemperature) ensures system reliability.
- Dual-DSP architecture guarantees stable performance under all operating conditions.
- Reliable paralleling capability supports up to 12 modules for flexible power scaling.
Higher Efficiency
- Eliminates bulky line-frequency transformers via high-frequency isolation, boosting system efficiency to over 95%.
- AC/DC three-level technology achieves up to 98% conversion efficiency, minimizing energy loss.
- DC/DC soft-switching resonant technology also reaches 98% efficiency.
Smarter and User-Friendly
- Seamless grid/off-grid switching with STS modules ensures uninterrupted power during grid failures.
- Wide battery voltage range (100V–750Vdc for passenger vehicles) accommodates diverse battery types.
- Adapts to global grid voltage ranges (304Vac–485Vac) and frequencies (50/60Hz ±5%).
Lower Costs
- High-frequency isolation removes line-frequency transformers, reducing system costs.
- Integrated charging/inverting circuits cut hardware expenses and complexity.
Flexible Configuration
- 19-inch rack-mountable design saves space and simplifies deployment.
- Hot-swappable modules allow dynamic system reconfiguration without downtime.
- Facilitates custom energy storage or battery formation systems for system integrators.
Applications
Energy Storage (EV V2G)

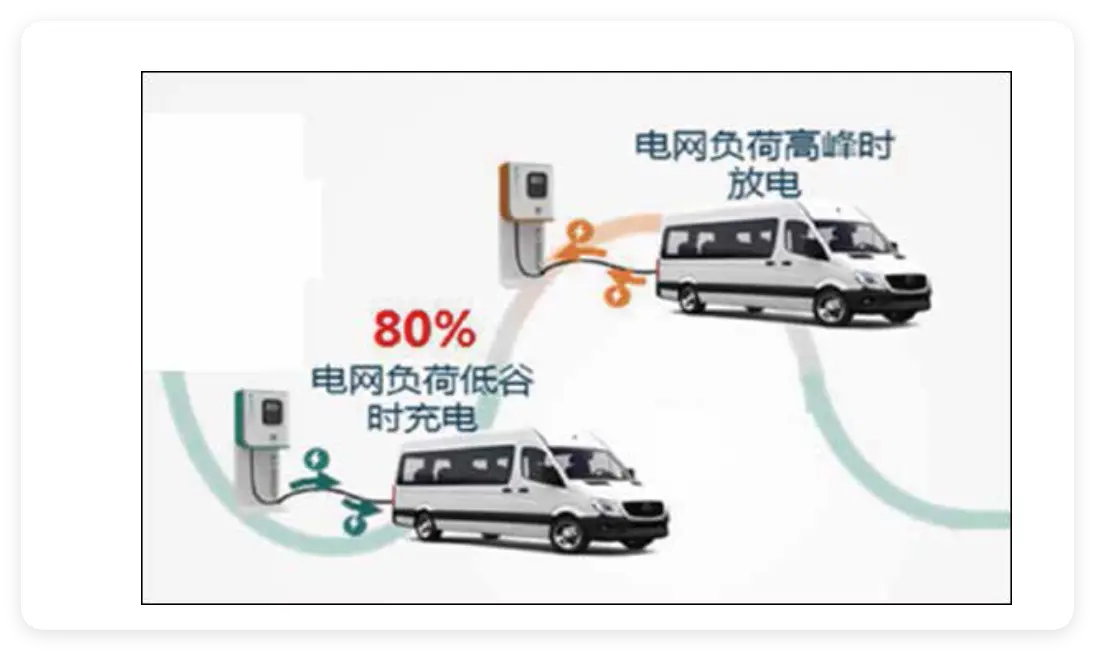

With EV adoption projected to reach 80 million units by 2030, EVs can serve as flexible loads and distributed energy resources. V2G enables cost-effective charging during off-peak hours and revenue generation via peak-hour discharging. It enhances grid flexibility, reduces infrastructure investments, promotes clean energy integration, and accelerates EV industry growth while minimizing public charging footprint.

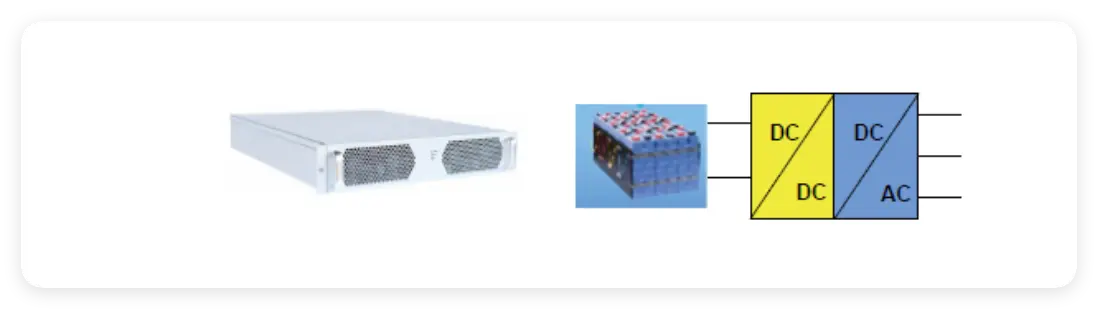

Energy Storage (Battery Repurposing)
The product offers embedded PCS solutions for flexible energy storage system design. Isolated bidirectional AC/DC converters improve safety, efficiency, and compactness. Grid-tied/off-grid hybrid units support microgrids (e.g., islands, remote villages) and mobile storage for events like G20 summits, Boao Forums, or exams.
Battery Formation & Grading

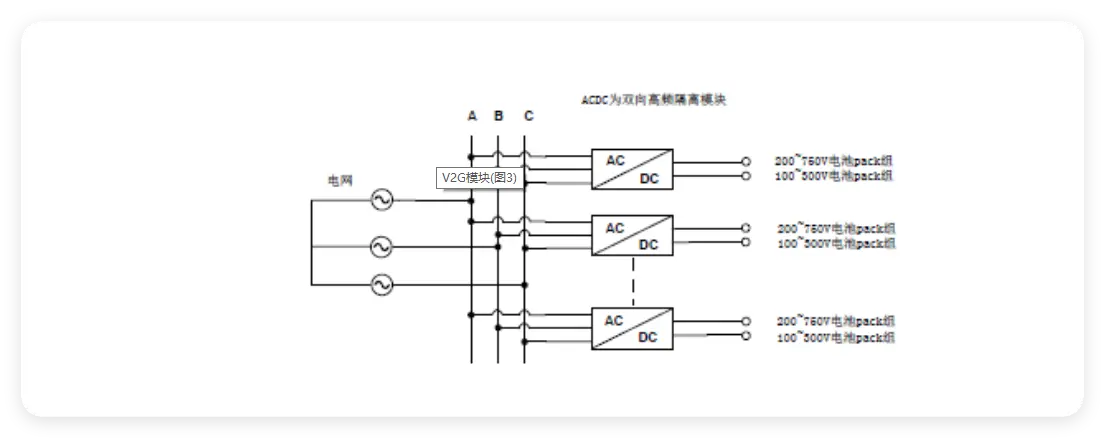

High-frequency isolation replaces bulky line-frequency transformers, boosting efficiency, cutting costs, and reducing footprint. Battery packs connect directly to modules, streamlining systems
DC Power Aging
Integrating V2G modules during DC power aging recycles at least 95% of energy back to the grid, slashing electricity costs and production expenses.
【Product Parameters】
| Product Name | Bidirectional Power Module |
|---|---|
| Product Model | IBG75027, IBG30050 |
| Charging Section | |
| AC Side Parameters | |
| Rated Grid Voltage | 400Vac (380/400/415Vac configurable) |
| Grid Voltage Range | 304Vac – 485Vac |
| Grid Voltage Frequency | 50/60 ± 5% (50Hz/60Hz dual-mode adaptive) |
| Voltage System | Three-phase four-wire (3W+PE) |
| Input Current | ≤ 38A (IBG75027), ≤ 29A (IBG30050) |
| Power Factor | ≥ 0.99, full load |
| Current Harmonic | <3%, full load |
| Battery Side Parameters | |
| Output Voltage | 200 – 750VDC, rated 500VDC (IBG75027); 100 – 300VDC, rated 150VDC (IBG30050) |
| Rated Output Current | 40A (IBG75027), 100A (IBG30050) |
| Rated Power | 20kW (IBG75027), 15kW (IBG30050) |
| Charging Efficiency | 95max (using SiC devices), 94% (using Si devices) |
| Voltage Stabilization Accuracy | ± 0.5% |
| Current Stabilization Accuracy | ± 1% |
| Ripple Coefficient | <1%Vo |
| Discharging Section | |
| Battery Side Parameters | |
| Battery Voltage Range | 200 – 750VDC (IBG75027); 100 – 300VDC (IBG30050) |
| Discharging Current | 40A Max (IBG75027), 100A Max (IBG30050) |
| AC Side Parameters | |
| V2G (Grid-connected Discharging) | |
| Grid Voltage Range | 304Vac – 485Vac |
| Grid Voltage Frequency | 50/60 ± 5% (50Hz/60Hz dual-mode adaptive) |
| Rated Power | 20kW (IBG75027), 15kW (IBG30050) |
| Efficiency | 95max (using SiC devices), 94% (using Si devices) |
| Other Performances | |
| Protection Functions | |
| Over-voltage Protection | Equipped |
| Over-current Protection | Equipped |
| Short-circuit Protection | Equipped |
| Over-temperature Protection | Equipped |
| Other Parameters | |
| Working Temperature | -30 – 65 ℃, output power derating above 55 ℃ |
| Storage Temperature | -40 – 75 ℃ |
| Noise | <60dB |
| Dimensions (Width * Depth * Height) | 44257586mm |
| Weight | 19Kg (IBG75027), 17Kg (IBG30050) |
| Protection Level | IP20 (single module) |
| Cooling Method | Intelligent speed regulation, forced air cooling |
| Certification Standards | |
| Performance/Safety/Environment | Meet the standards of charging piles and energy storage converters, i.e.:<GB/T 34120-2017 Technical specifications for energy conversion systems in electrochemical energy storage systems><GB/T 34133-2017 Technical regulations for energy storage converter testing><NB/T 33001-2018 Technical conditions for non-vehicle-mounted conductive chargers for electric vehicles><NB/T33008-2018 Inspection test specifications for electric vehicle charging equipment> |
| EMC | Meet the following Class A technical conditions, i.e.:<NB/T 33001-2018 Technical conditions for non-vehicle-mounted conductive chargers for electric vehicles><NB/T33008-2018 Inspection test specifications for electric vehicle charging equipment> |
