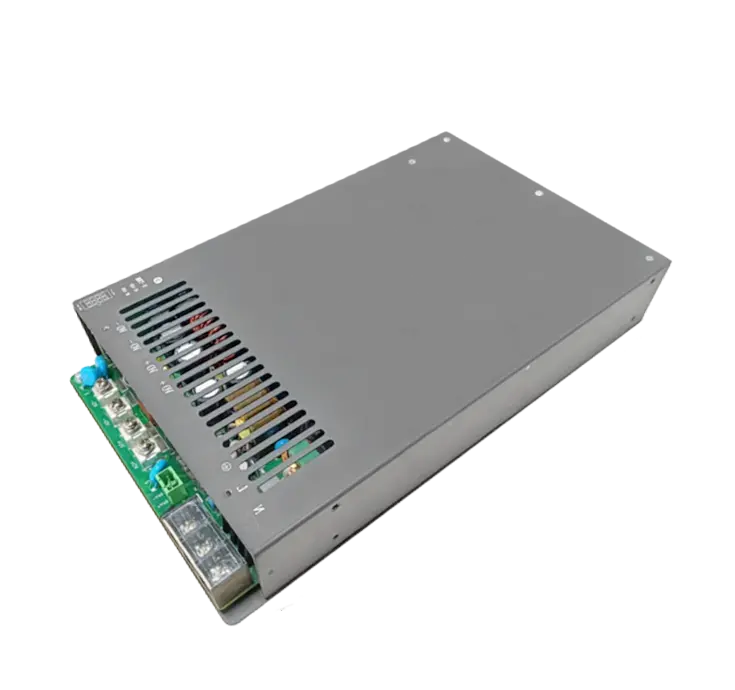

Description
The IM-4K/5K/5.5K/6K series are AC/DC switching power supplies developed for industrial equipment. The power topology adopts an active PFC with BOOST boost, and the DC/DC at the rear stage uses soft-switching technology. Forced air cooling for heat dissipation Multiple protection functions; The module features high power density, high power factor and other characteristics.
Features
- 180Vac ~ 265Vac AC input range
- Built-in active PFC function
- High efficiency, high reliability, high power density
- Equipped with remote control function/DCOK signal output
- Equipped with triple protection functions
Application Fields
- Industrial control
- Automation devices
- Test and measurement instruments
- Laser equipment
- Aging equipment
[For more series of products, please refer to the following selection table. We specialize in customizing power supply products tailored to different equipment needs for our customers. We look forward to your inquiry.]
Customization hotline: +86 180 187 52807 Customization email: info@imaxpwr.com
| Product Model | Rated Input Voltage | Output Voltage | Output Current | Power | Efficiency | External Dimensions (LengthWidthHeight) |
|---|---|---|---|---|---|---|
| IM-48-6K | 220Vac | 48Vdc | 125A | 6KW | ≥92% | 300mm×180mm×49mm |
| IM-48-9K | 220Vac | 90Vdc | 67A | 6KW | ≥91% | 300mm×180mm×49mm |
| IM-65-5.5K | 220Vac | 48Vdc | 100A | 5KW | ≥92% | 300mm×180mm×49mm |
| IM-48-5K | 220Vac | 48Vdc | 100A | 5KW | ≥92% | 300mm×180mm×49mm |
| IM-105-5K | 220Vac | 105Vdc | 48A | 5KW | ≥91% | 300mm×180mm×49mm |
