Description

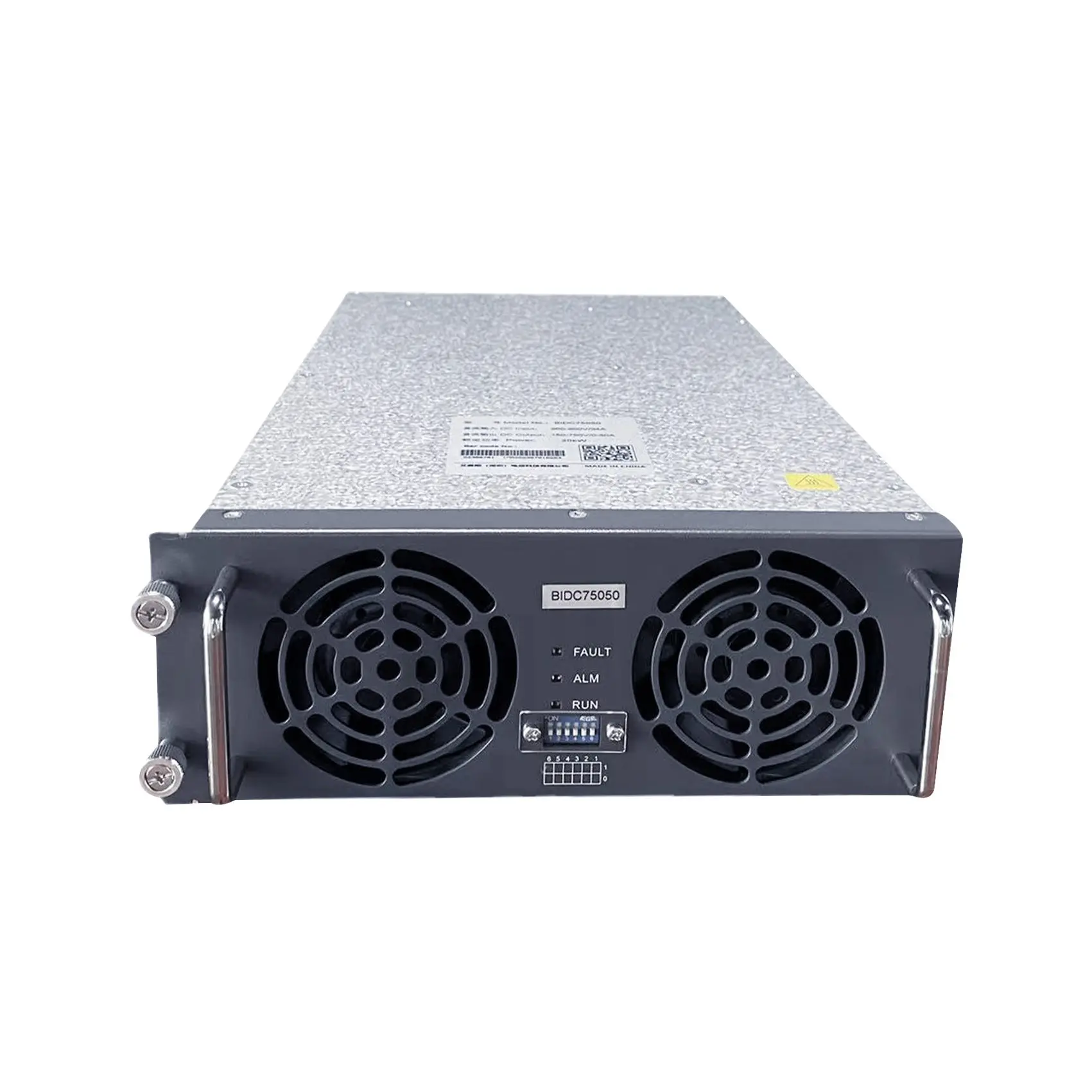

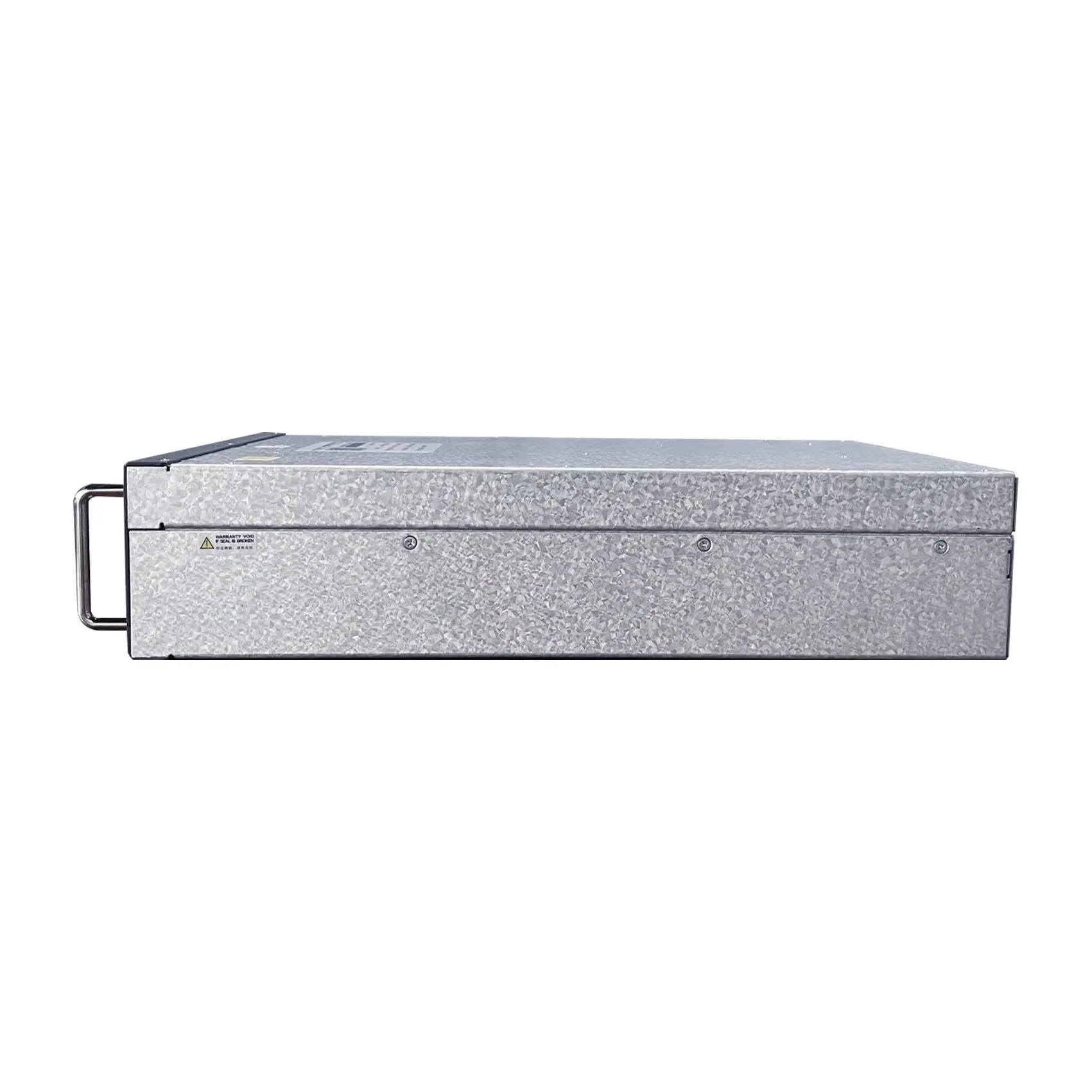

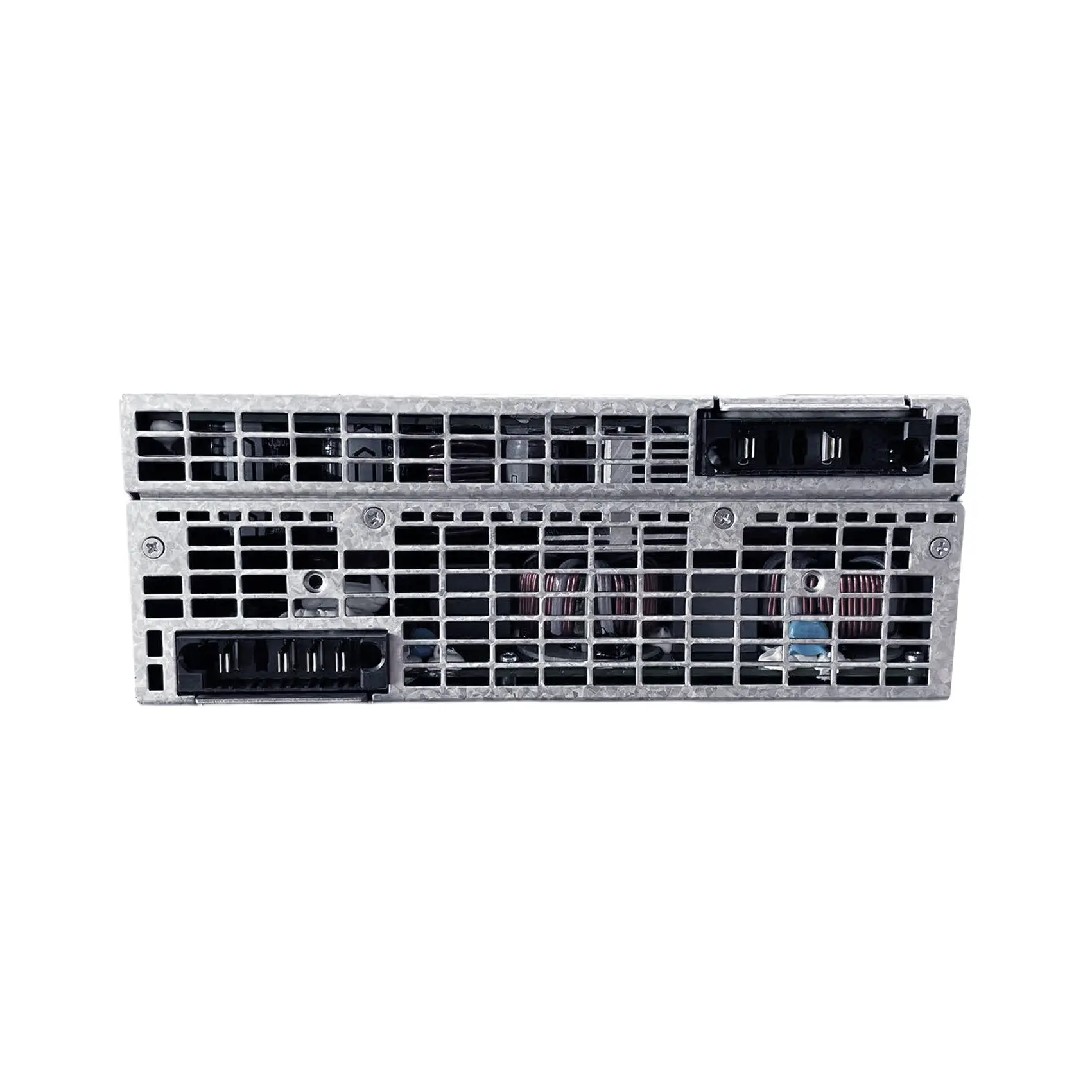

| Product name | 20kW DC/DC charger power Module | |
| Product model | BIDC75050 | |
| DC input | Rated voltage | 710Vdc |
| Input voltage range | 260Vdc~900Vdc | |
| Input current range | 35A (Maximum output current at full load)； 40A (Maximum current) | |
| DC output | Voltage range | 150Vdc~750Vdc |
| Current range | 0~50A (current limit point can be set) | |
| Rated current | 26A (Set the current limit point required) | |
| Voltage regulation accuracy | <±0.5% | |
| Current regulation accuracy | ≤±1％ (Output load 20% ~ 100% rated range) | |
| load regulation | ≤±0.5% | |
| load regulation | ≤±3% | |
| Noise | Peak-to-peak noise | ≤1% (150~750V, 0~20MHz) |
| EMC | surge | Meet the general technical specifications of electric vehicle DC charger， NB/T 33001-1-2018， NB/T 33008-1-2013 |
| EFT | Input and output： 4kV；signal wire：1kV | |
| Reference standard： NB/T 33001-1-2018， NB/T 33008-1-2013 | ||
| ESD | 8kV/15kV | |
| Reference standard： NB/T 33001-1-2018， NB/T 33008-1-2013 | ||
| CS | 3Vrms，0.15~80MHz | |
| Reference standard： NB/T 33001-1-2018， NB/T 33008-1-2013 | ||
| RS | 10V，80~2GHz | |
| Reference standard NB/T 33001-1-2018， NB/T 33008-1-2013 | ||
| Magnetic Emission | 30A/m | |
| Reference standard： NB/T 33001-1-2018， NB/T 33008-1-2013 | ||
| CE | Class A，Meet the general technical specifications of electric vehicle non-vehicle DC charger, NB/T 33001-1-2018， | |
| Mechanical | Dimension | 84mm (H) ×226mm (W) ×395mm (D) |
| Environmental conditions | Weight | ≤11kg |
| Working Temp. | -40℃~＋75℃ , >50℃ Derating. | |
| Storage Temp. | -40℃~＋70℃ | |
| Humidity | ≤95％RH，non-condensing | |
| Cooling method | Forced air | |
| Altitude | 2000m, >2000m Derating | |
