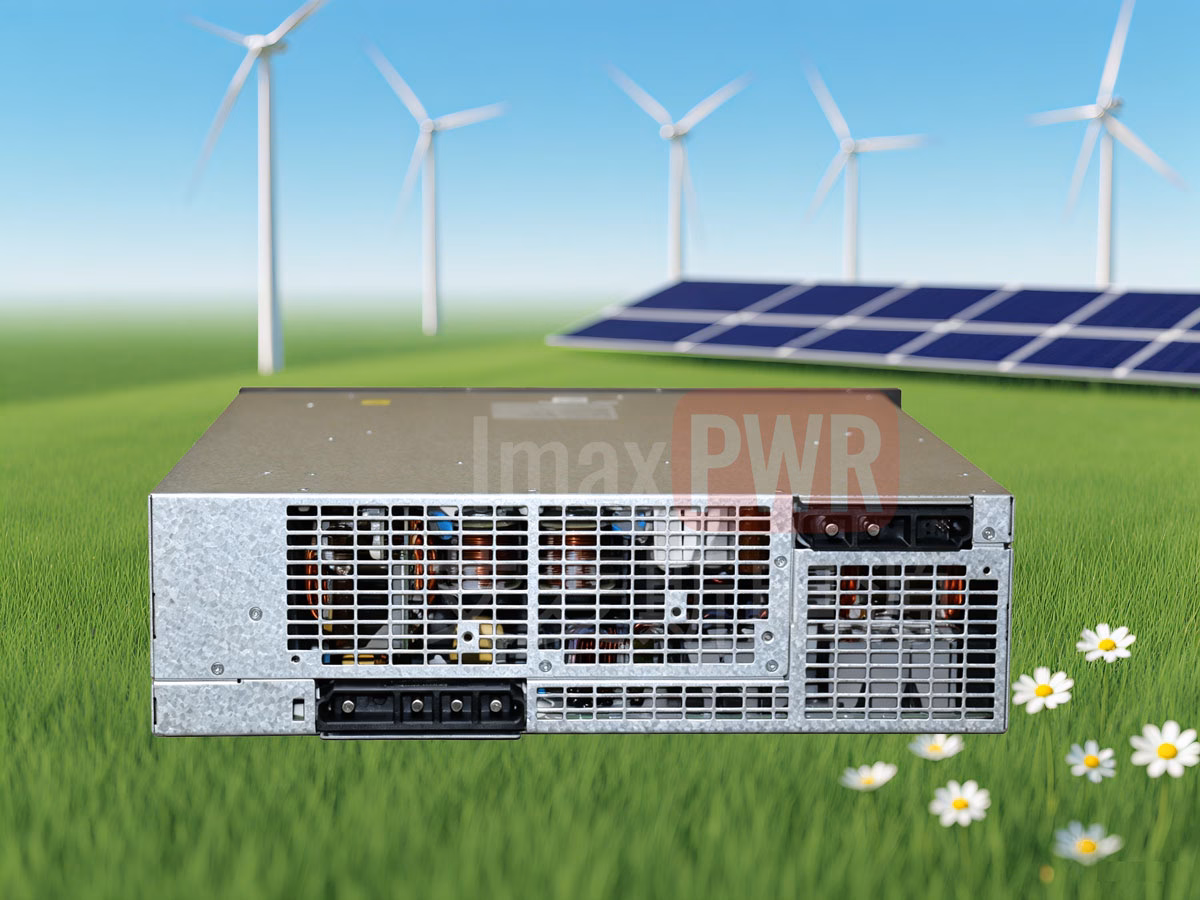

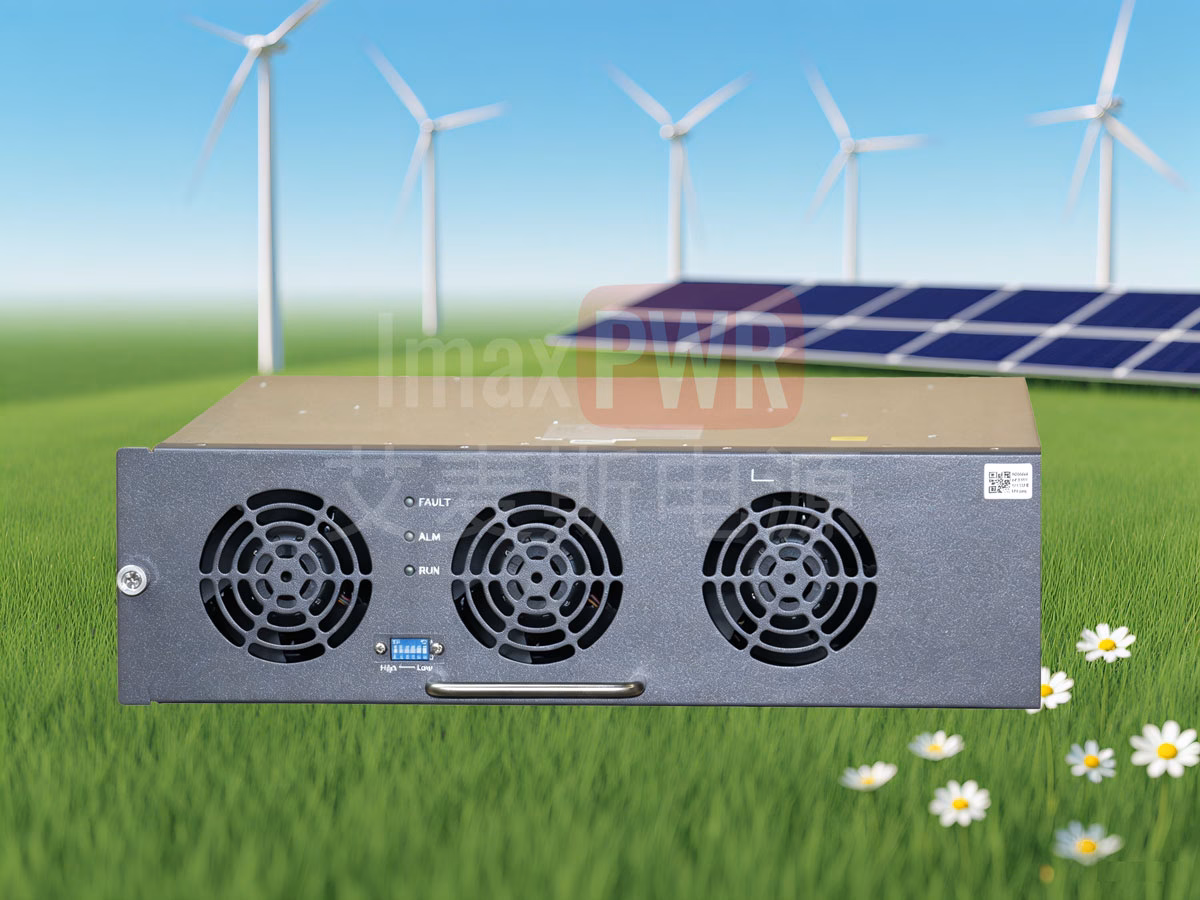

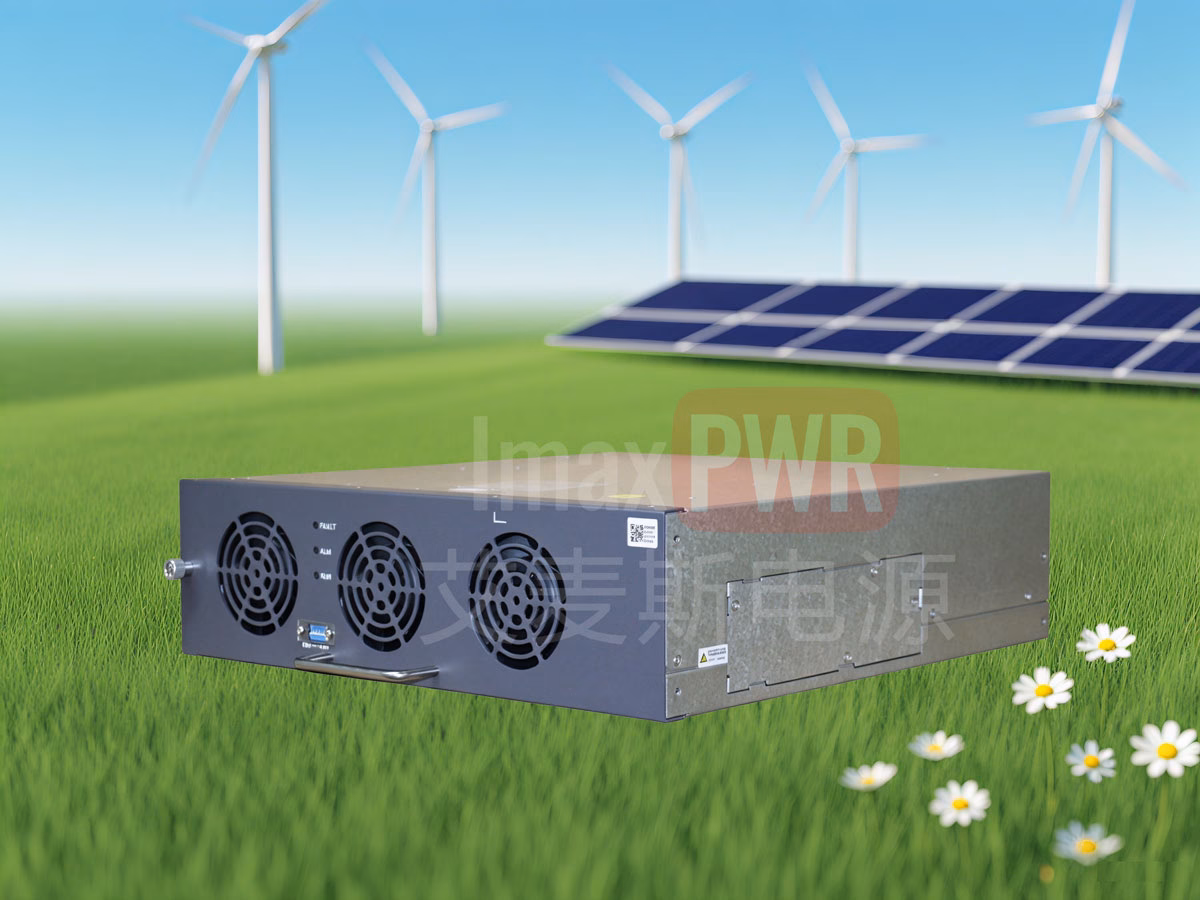

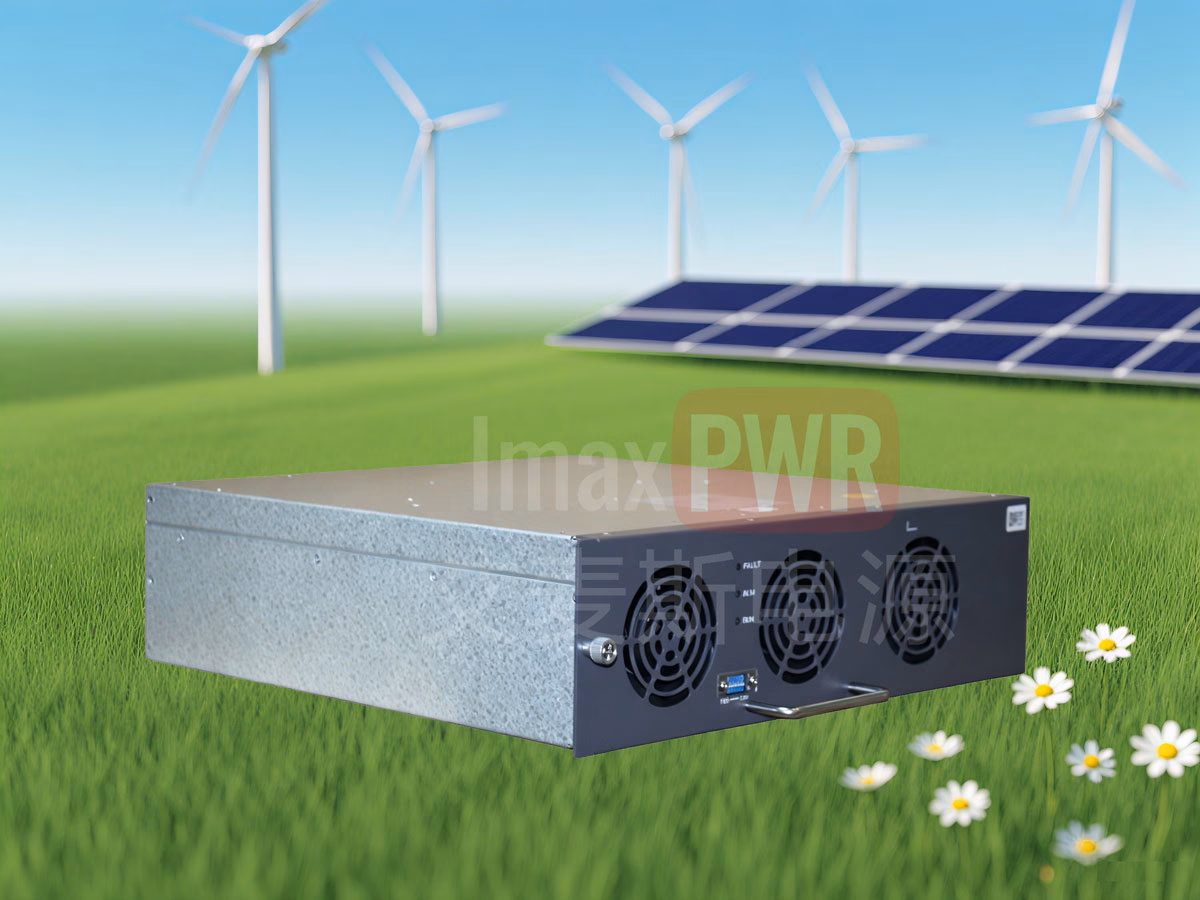

🔧 Technical Architecture

The SEG1K0100 adopts a patented three-level topology combined with high-frequency isolation and soft-switching resonant technology, enabling efficient AC-DC conversion with automatic charge control. The fully digital control architecture features dual DSPs for high-reliability real-time regulation. Up to 20 units can be paralleled with active current sharing, delivering scalable power up to 600kW. Standard CAN bus communication ensures seamless integration with battery management systems and charging station controllers.

🎯 Application Positioning

Engineered for high-power DC fast charging infrastructure, the SEG1K0100 excels in public EV charging stations, solar-storage supercharging systems, and heavy-duty truck battery-swap equipment. Its wide voltage range (50–1000Vdc) and robust low-voltage high-current capability make it ideal for charging both passenger EVs and commercial vehicles. With IP20-rated construction and isolated air-duct potting, it performs reliably in coastal, construction-site, and mining environments.

🛡️ Safety & Reliability

• ▸ Isolated air-duct potting design for superior heat dissipation
• ▸ Built-in intelligent discharge circuit for residual charge removal
• ▸ Battery anti-reverse irrigation protection for long-term safety
• ▸ Failure rate only 1/10 of conventional modules

⚡ High Efficiency

• ▸ Patented topology ensures efficient operation across full load range
• ▸ Peak efficiency 95% at full load
• ▸ Ultra-low standby power <12W with sleep mode support
• ▸ Power factor ≥0.99, THD <5%

🧠 Intelligent Control

• ▸ Full digital control with dual DSP architecture
• ▸ Non-destructive hot-swapping for plug-and-play maintenance
• ▸ Universal mechanical design compatible with DCDC & PCS modules
• ▸ CAN bus communication for easy system integration

🔧 Flexible Integration

• ▸ Wide input voltage 260–530Vac, adaptable to various grids
• ▸ Wide output voltage 50–1000Vdc, covers all battery types
• ▸ Wide temperature range -40°C to +75°C for diverse scenarios
• ▸ 19-inch rack-mount design, easy for system integrators

🚗 Public EV Charging Stations

The SEG1K0100 delivers 30kW of reliable DC power for public charging infrastructure. Its wide voltage range (50–1000Vdc) accommodates all passenger EV battery architectures, while the 100A output ensures fast charging for both 400V and 800V platforms.

☀️ Solar-Storage Supercharging

Integrated with photovoltaic and energy storage systems, the module enables ultra-fast charging with peak power from solar+battery hybrid sources. The wide DC input range supports direct connection to battery storage, reducing grid demand and operational costs.

🚛 Heavy-Duty Truck Battery Swap

With strong low-voltage load capacity (50V high-current output) and a wide constant-power range, the SEG1K0100 is ideal for commercial vehicle battery-swap stations, ensuring rapid and safe charging of large-capacity truck batteries in demanding logistics environments.

🌊 Seaside & Harsh Environments

The isolated air-duct potting design provides excellent heat dissipation and corrosion resistance, making the SEG1K0100 suitable for coastal, construction-site, and mining applications. Its failure rate is only 1/10 of conventional modules, ensuring long-term reliability.

📋 Routine Maintenance

1. Check operating conditions: temperature, humidity, I/O voltage, frequency, LED indicators, alarms
2. Check for abnormal noise; inspect fans and modules
3. Inspect AC/DC terminals for tightness, cables for integrity
4. Verify system monitoring panel: all units normal, no faults or alarms
5. Clean dust from equipment as needed
6. Record ambient temperature and humidity
7. Verify module parameter configuration

🔄 Replacement Procedure

1. Remove the faulty module (caution: high internal temperature or residual voltage)
2. Confirm the new module is intact
3. Shut down all running modules in the system
4. Open AC/DC breakers of the faulty module; loosen fixing screws
5. Grasp the handle and slowly pull out
6. Align the new module with the slot and push it in slowly until firmly seated
7. Secure with fixing screws
8. Close AC/DC breakers
9. Verify monitoring panel recognizes the new module, communication is normal, current sharing is balanced
