100KW non-isolated bidirectional DCDC module M100KDC1 M100KDC4

100KW non-isolated bidirectional DCDC module M100KDC1 M100KDC4

M100KDC1 / M100KDC4 — 105 kW non-isolated bidirectional DC/DC module for 200-900 V battery systems.

  • Rated power: 105 kW
  • Battery voltage: 200-900 V, 525 V rated
  • Maximum current: 180 A
  • Maximum efficiency: 99%
  • Protection: IP5X for core control part
  • Temperature range: -30 to 60 degC
  • Dimensions: 440 x 183 x 560 mm

PRODUCT DOCUMENTATION

System Selection Guide 2026View online | Download PDF
Module Selection Guide 2026View online | Download PDF
Company Profile 2026View online | Download PDF

Contact: info@imaxpwr.com | +86-13760212825 (WhatsApp)

Description

100KW bidirectional DCDC module, mainly using third-generation semiconductors, is small in size and high in efficiency. Air duct isolation ensures good environmental adaptability. It is mainly applied to small and medium-sized industrial and commercial energy storage DC-coupled microgrids.

■ Function Description:

  • High Efficiency and High Reliability:
    • Low power consumption: standby power consumption ≤15W, no-load operating loss <50W;
    • High efficiency: maximum conversion efficiency 99.3%;
    • High protection: adopts air duct isolation design scheme, core control part has a protection rating of IP5X;
    • High reliability: supports complete disconnection between the converter and battery in case of battery or converter abnormalities.
  • Functions:
    • Parallel operation: supports parallel use of up to 15 units, each unit can be independently controlled;
    • Seamless switching: seamless switching between charging and discharging states, and seamless switching between various operating modes.
  • Ease of Use:
    • High universality: supports multiple communication protocols, compatible with mainstream BMS protocols, can be connected to EMS systems for remote monitoring and management;
    • High maintainability: easy wiring and maintenance;
    • Fault protection: comprehensive fault protection and fault recording functions;
    • Wide input voltage: suitable for voltage inputs of various battery configurations, with strong adaptability to meet the power demands of different capacities.



■ Product Specification Parameters:

Specification Parameters M100KDC1 M100KDC4
Battery Parameters
Rated Power 105kW
Battery Voltage Range 200V-900V
Rated Voltage 525V
Battery Input Circuit Number 1 4
Maximum Battery Current 200A 50A+50A+50A+50A
High-Voltage Side Parameters
Voltage Range 500V-900V
Rated Voltage 680V
Maximum Current 180A
System Parameters
Communication Port EMS: RS485
Battery: CAN or RS485
DIDO DI: 2 channels, DO: 2 channels
Maximum Efficiency 99%
Installation Method Plug-in frame
Loss Standby <10W, No-load <100W
Weight TBD

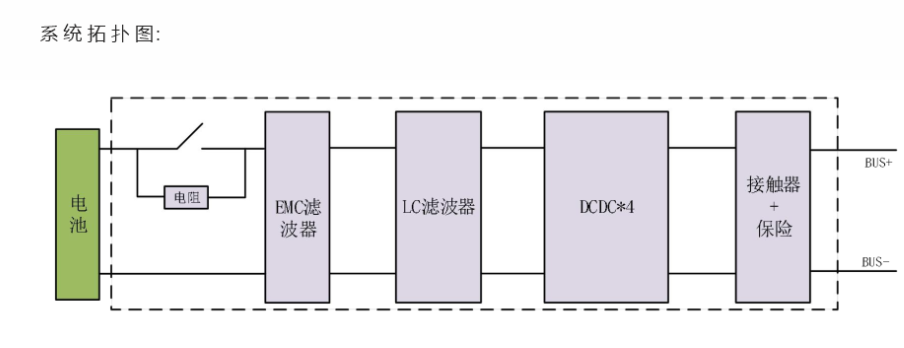

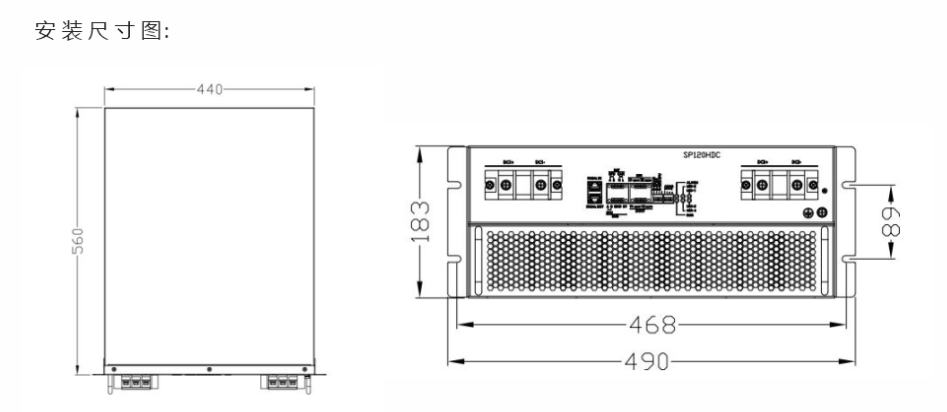

Dimensions WHD: 440183560mm
Protection IP5X (core control part)
Temperature Range -30~60°C
Humidity Range 5%~95%
Cooling Method Intelligent forced air cooling
Noise 50dB
Altitude 4000m (>2000m derating)
Protection Features Over-temperature protection, over-current protection, over-voltage protection, ground fault protection
Certification CE, IEC62477, IEC62019, IEC6100
Soft-start Circuitry Yes
