Description
BIPV320K6 – 320kW MPPT Controller
Category: DC/DC MPPT Controller
Application: Solar-Storage Systems · Microgrids
Manufacturer: Imax Power Technology Co., Ltd.
🔋 What this product does: The BIPV320K6 MPPT Controller maximizes PV energy harvest and efficiently charges battery banks in DC-coupled systems, reducing energy conversion losses and improving system reliability for commercial and industrial storage projects.
⚙️ Technical Architecture

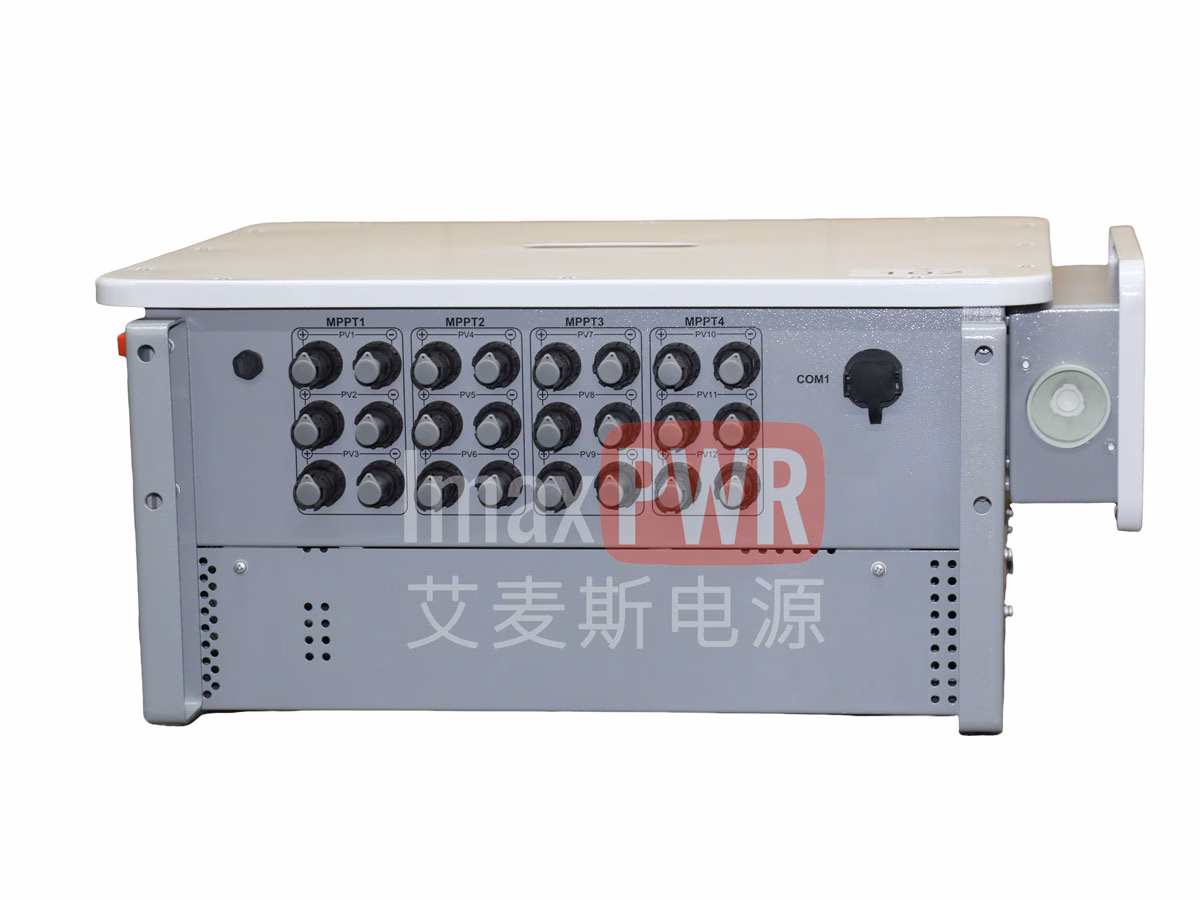

The BIPV320K6 integrates six independent MPPT channels, each capable of tracking the maximum power point of individual PV sub‑arrays with different orientations. The DC output is directly connected to the battery bus (1330 V DC nominal), eliminating the need for separate PV inverters and AC distribution. This DC‑coupled architecture minimizes conversion steps, increasing overall system efficiency by 5–8% compared to AC‑coupled designs.
🎯 Application Positioning
- Commercial & industrial PV + storage
- Island and coastal high‑salt environments
- Off‑grid renewable systems
- EV charging stations with solar integration
- Microgrid backup and peak shaving
Product Advantages
Safety & Reliability
Built‑in short‑circuit, reverse polarity, over‑temperature, and surge protection. IP66 + C5 corrosion resistance for harsh outdoor conditions.
High Efficiency
Maximum efficiency of 99.4% minimizes energy loss during DC/DC conversion, maximizing PV yield and reducing system operating costs.
Intelligent Control
RS485 communication enables seamless integration with EMS and BMS. Real‑time monitoring, anti‑reverse current, and fast response to load changes.
Flexible Integration

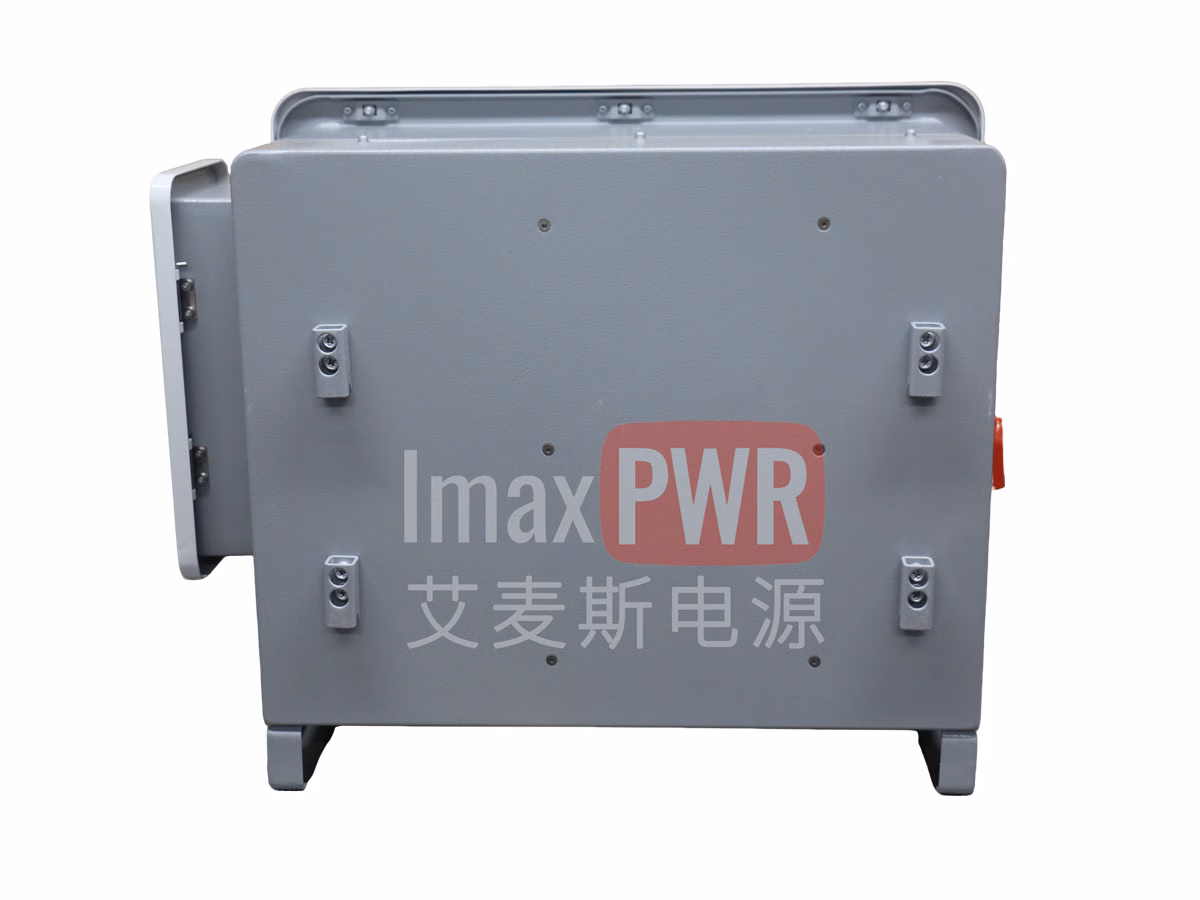

Wall‑mounted compact design, supports multiple installation methods. Six MPPT channels adapt to various PV array orientations without extra optimizers.
📋 Technical Specifications
| Parameter Category | BIPV60K2 | BIPV120K4 | BIPV320K6 |
|---|---|---|---|
| PV Input Parameters | |||
| Max PV Array Voltage | ≤1500 V (also ≤ battery max voltage) | ||
| MPPT Voltage Range | 200–900 V | 500–1460 V | |
| Full‑Load MPPT Range | — | 900–1266 V | |
| Max Input Current per String | 20 A | 30 A | 30 A |
| Number of PV Inputs | 6 | 12 | 24 |
| Output Parameters | |||
| Output Voltage Range | 600–950 V | 950–1500 V | |
| Rated Output Voltage | 716.8 V (adjustable) | 1331.2 V (adjustable) | |
| Rated Output Current | 80 A | 160 A | 240 A |
| Rated Output Power | 60 kW | 120 kW | 320 kW |
| System Parameters | |||
| Max Efficiency | 99.4% | ||
| Enclosure Rating | IP66 | ||
| Corrosion Protection | C5 | ||
| Cooling Method | Forced air, intelligent fan | ||
| Dimensions (W×D×H) | 610×480×260 mm | 800×500×300 mm | |
| Weight | 25 kg | 30 kg | 60 kg |
| Operating Temperature | -30 to +55 °C | ||
| Communication Interface | RS485 | ||
🌐 Application Areas
⚡ Electrical Topology
6 Independent MPPT · 320 kW
LFP · 4 MWh
2 MW · AC/DC
AC/DC conversion
↔ Communication & control with PCS, BMS, MPPT
🛡️ Protection & Safety
- Electrical Protection: Short‑circuit, reverse polarity, over‑temperature, and over‑current protection.
- Surge Protection: Built‑in Class II surge protection on PV input.
- PV Reverse Polarity: Prevents damage from incorrect connection.
- Insulation Monitoring: Integrated insulation impedance detection (optional PID function).
- Environmental: IP66 enclosure (dust‑tight, powerful water jets) and C5 corrosion protection (high salt‑spray resistance).
- Safe Operation: After power‑off, wait 5 minutes for internal capacitors to discharge before servicing.
🔧 Maintenance & Service
Routine Checks
Semi‑annual cleaning of heatsink and air inlets; annual visual inspection; check electrical connections and ground integrity.
Troubleshooting
Refer to user manual for fault codes. Common issues: PV voltage out of range, fan failure, communication errors. Contact support if persistent.
Technical Support
IMAXPWR provides remote diagnostics, on‑site service, and spare parts. OEM/ODM customization available for volume projects.
