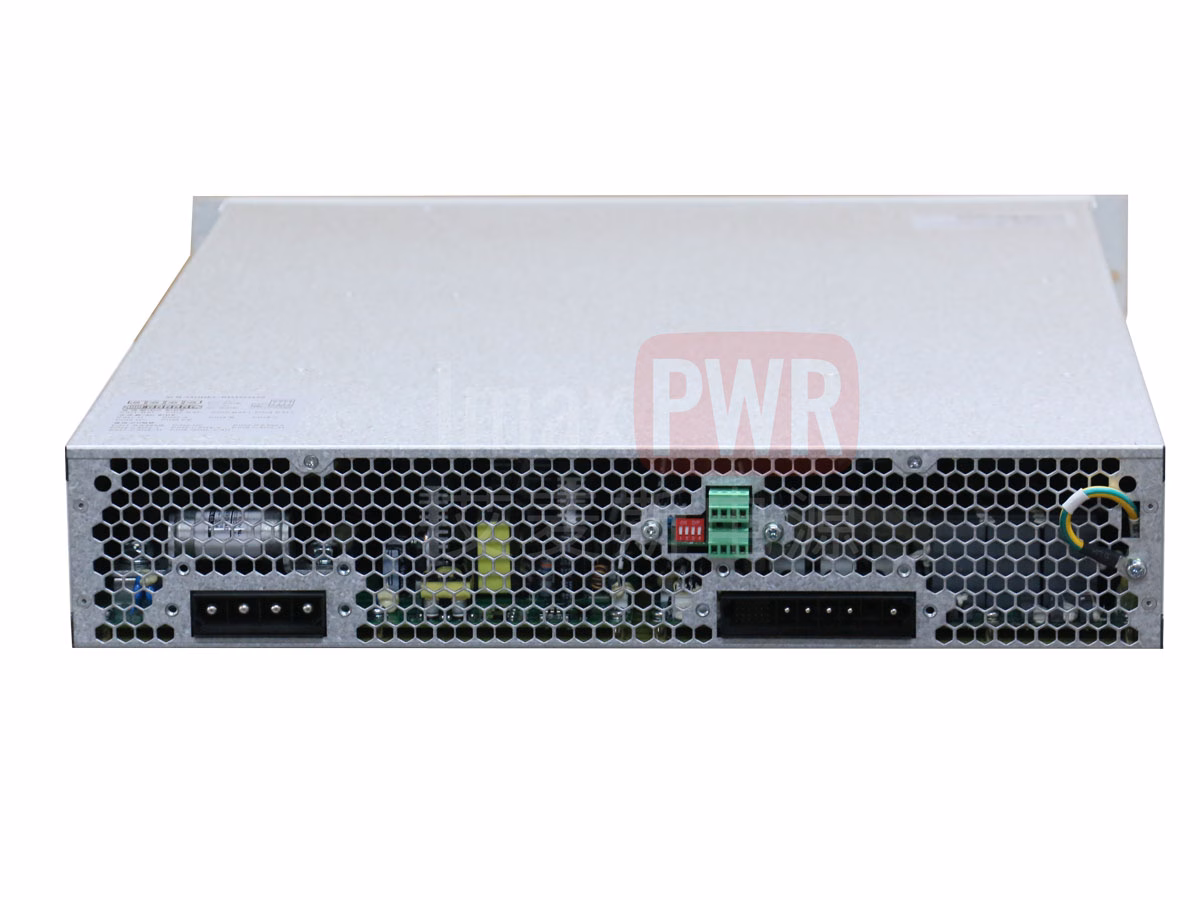

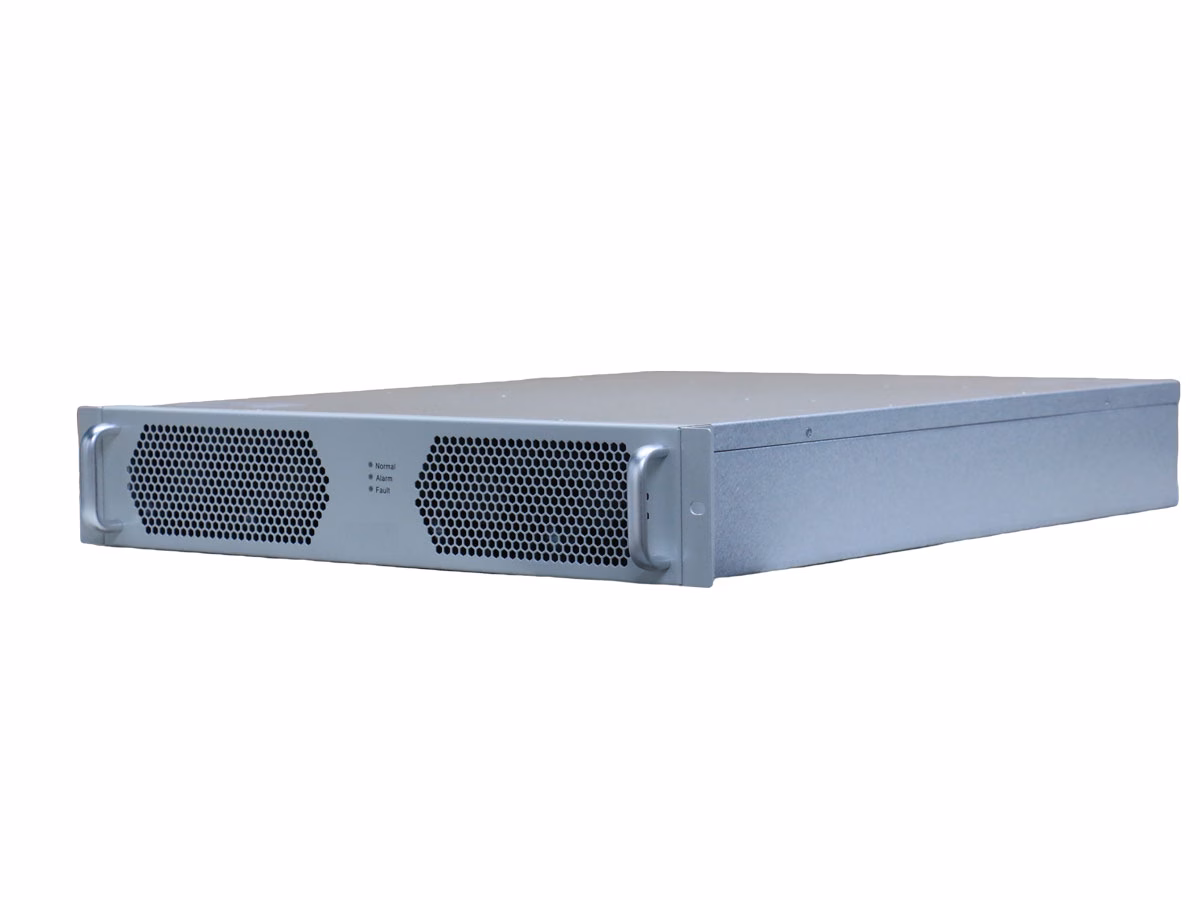

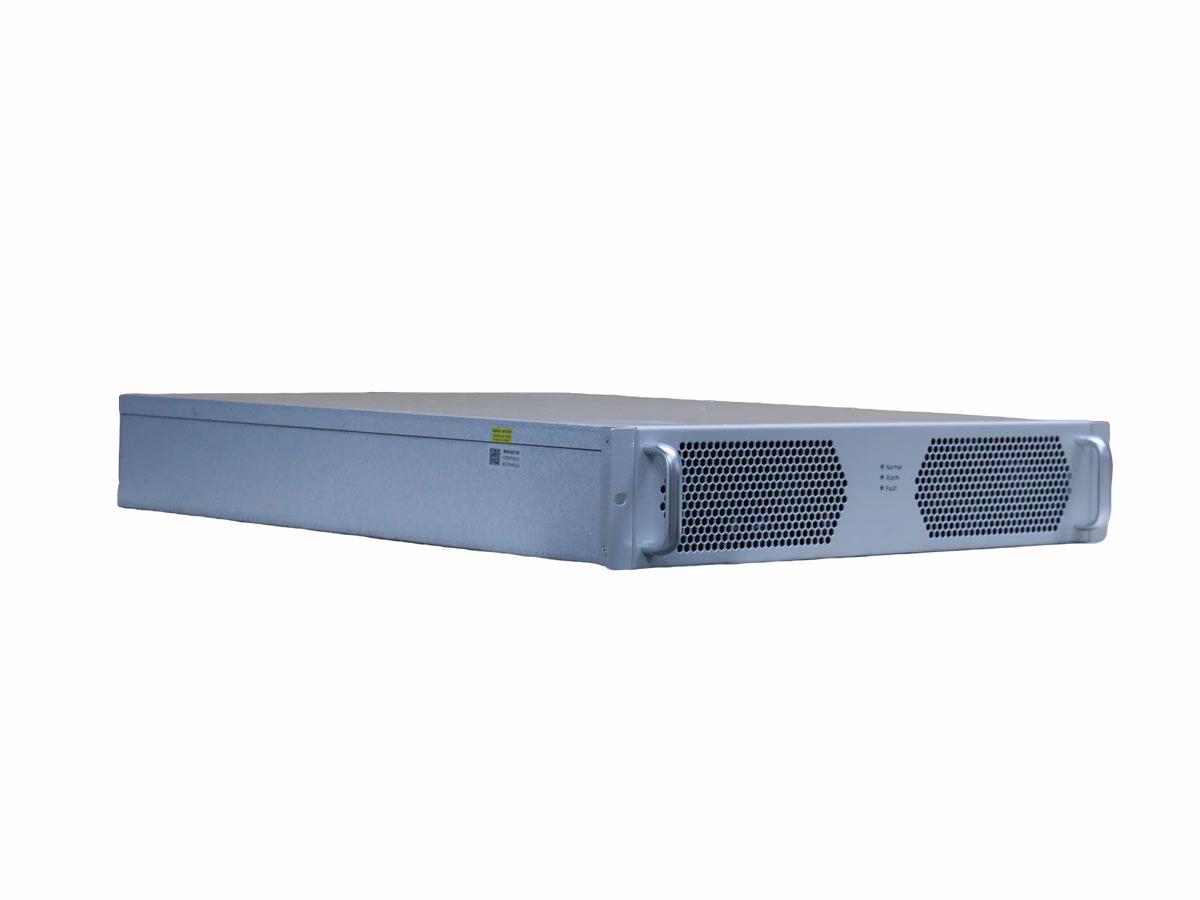

⚡ BAC300100 / BAC75040 Series

15kW – 20kW PCS Energy Storage Converter
AC/DC Bidirectional Power Module

The most distinctive feature of this energy storage converter is its low voltage and high current. It can support a minimum voltage of 40V and has an output rated current of 100A. It is widely applied in many fields such as photovoltaic storage and charging, charging and discharge, emergency disaster relief power supply and equipment aging, and is the first choice for industries that require bidirectional energy flow.

🔁 Full Bidirectional Energy Flow
⚙️ High-Frequency Isolation
📦 Hot-swappable & Parallel

Document Date: 2026-07-08 | Imax Power Official Datasheet

📊 Product Specification Parameters

Parameter	BAC75040 (20kW)	BAC300100 (15kW)
⚡ Charging Section – AC Side
Rated grid voltage	400Vac (380/400/415Vac configurable)
Grid voltage range	304Vac ~ 485Vac
Power factor	≥0.99, full load
Current harmonic	<3%, full load
🔋 Charging Section – Battery Side
Output voltage	60 ~ 750VDC (rated 500VDC)	40 ~ 300VDC (rated 150VDC)
Output rated current	40A	100A
Rated power	20kW	15kW
Charging efficiency	95%max (SiC), 94% (Si devices)
Voltage stabilization accuracy	±0.5%
Current stabilization accuracy	±1%
🔁 Discharging Section (V2G / Grid-tied)
Battery voltage range (Discharge)	60~750VDC	40~300VDC
Discharging current	40A Max	100A Max
AC side grid voltage range	304Vac ~ 485Vac
Output power / Efficiency	20kW / 95%max(SiC)	15kW / 95%max(SiC)
🌡️ Environmental & Mechanical Parameters
Operating temperature	-30 ~ 65°C (derating above 55°C)
Protection grade	IP20 (single module)
Dimensions (W/D/H)	442×575×86mm
Weight	19kg	15kg
Cooling method	Intelligent speed regulation, forced air cooling

✨ Core Features & Advantages

🔒

More Secure & Reliable

Full high-frequency isolation design
DSP+CPLD full digital control
Dual DSP design, stable & reliable
Parallel up to 12 modules
Multiple overcurrent/overvoltage/over-temperature protection

⚡

Higher Efficiency

Eliminates line-frequency transformer → efficiency >95%
AC/DC three-level technology → max 98%
DC/DC soft-switching resonant technology → max 98%
Significant energy savings for aging & formation lines

🧠

More Intelligent & User-Friendly

STS module supports seamless grid-connected/off-grid switch
Wide battery voltage: passenger vehicles 100V~750Vdc
Wide grid voltage & 50/60Hz global adaptive

💰

Lower System Cost

High-frequency isolation cancels heavy line-frequency transformer
Single circuit integrates charging & inverting bidirectional function
Lower BOM & installation cost than traditional bidirectional power supply

🧩

More Flexible Configuration

19-inch standard rack mount, compact size
Module hot-swappable without system shutdown
Easy integration for custom energy storage & battery formation systems

🏭 Typical Application Scenarios

🌞

Photovoltaic Storage & EV Charging

PV + Energy Storage + EV public charging integrated infrastructure

🚨

Emergency & Disaster Relief Power

Mobile energy storage, off-grid backup power supply

🔋

Battery Formation & Aging Test

High-current bidirectional battery cycle test equipment

⚡

V2G Vehicle-to-Grid Interaction

Peak shaving, valley filling, electricity arbitrage for EV fleets

🏭

Industrial Microgrid & UPS

Island-mode off-grid energy storage system for factories & remote areas

🧪

DC Microgrid & Fuel Cell Integration

Common DC bus energy storage & new energy hybrid system

🔌 Electrical Topology & Working Modes

⚡ AC Grid

380-415Vac / 304~485V
50/60Hz adaptive

↔️

🔁 AC/DC Three-Level

Bi-directional
Max η 98%

↔️

🔗 HF Isolation + DC/DC Resonant

Soft-switching galvanic isolation
Max η 98%

↔️

🔋 Battery Bank

40~750Vdc
Rated 150V / 500V

⚡ OPTIONAL MODULE

STS – Seamless Transfer Switch

Grid-connected ⇄ Off-grid islanding seamless transition
<100ms switching speed

⟷

🏭 Critical Load / Off-Grid Load

Backup power · V2G discharge supply

Island capable

🔁 Grid-tied (V2G / G2V)

🌲 Off-grid with STS seamless switch

⚡ Full duplex bidirectional power flow

📈 Peak shaving & load shifting

⚙️ Full digital control (DSP + CPLD) | Soft-switching resonant technology | Seamless grid-connected & off-grid (STS) | Max efficiency: AC/DC 98% + DC/DC 98% | Overall system efficiency >95% (SiC)

Bidirectional energy flow between AC grid and battery with high-frequency isolation & Three-level topology – ideal for V2G, PV-storage-charging, and microgrids.

🛡️ Protection & Safety Architecture

✅ Overvoltage Protection (OVP)
✅ Overcurrent Protection (OCP)
✅ Short-circuit Protection (SCP)

🌡️ Over-temperature Protection (OTP)
⚡ Software & Hardware redundant dual protection
🛡️ Anti-islanding & GFCI grid safety
