Description
Grid-connected Inverter | Three-phase Independent Regulation | Zero-millisecond Switching | Efficient Solution |
|---|---|---|---|
|
|
|
|

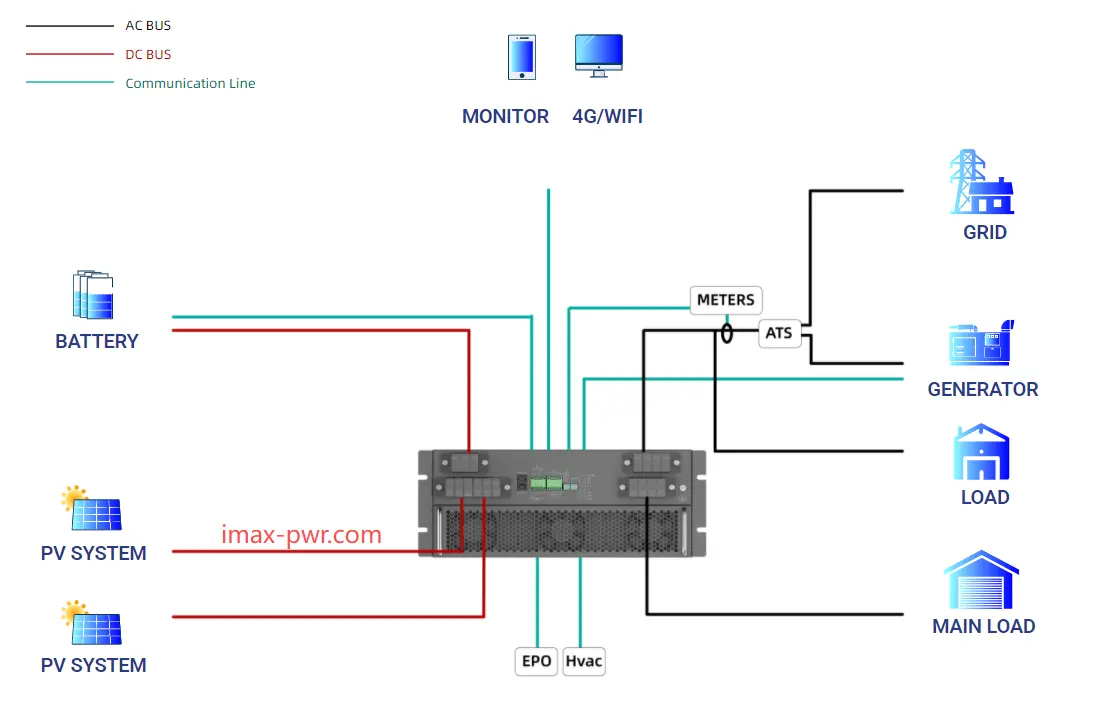

System Overview
- Industrial and Commercial Energy Storage + Emergency Power Supply:
This system is designed to provide backup power for industrial and commercial facilities during outages, integrating energy storage solutions to ensure continuous operation. - Small and Medium-sized Optical Storage-Diesel Microgrid:
A hybrid system combining solar power, energy storage, and diesel generation, tailored for small to medium-sized applications, ensuring reliable and sustainable energy access. - Mobile Energy Storage:
Portable energy storage units designed for flexibility and ease of transport, suitable for temporary power needs or remote locations without fixed infrastructure. - Optical Storage Microgrid:
A self-contained energy system that utilizes solar power and storage to provide electricity in areas with limited or no access to the main grid, ideal for urban microgrids and similar settings.
This product is a high-efficiency, highly reliable energy storage inverter primarily developed for small and medium-sized energy storage microgrids. It supports photovoltaic access, includes grid-connected and off-grid switching devices, supports multi-unit parallel operation, oil-electric hybrid operation, and rapid switching between grid-connected and off-grid modes. It is applicable to various scenarios such as small-scale industries and commerce, small island microgrids, farms, villas, and battery step-by-step utilization, meeting the needs of different users.
Product Highlights
| 01. Grid-connected Inverter | 04. Seamless Switching Function |
| 02. 150% Overload Capacity | 05. Three-phase Independent Grid-connection Control Technology |
| 03. Oil-electric Hybrid Mode | 06. Microgrid Battery Heterostructure |
Alternatively, if you prefer a list format instead of a table:
Product Highlights
- 01. Grid-connected Inverter
- 02. 150% Overload Capacity
- 03. Oil-electric Hybrid Mode
- 04. Seamless Switching Function
- 05. Three-phase Independent Grid-connection Control Technology
- 06. Microgrid Battery Heterostructure
Product Parameters
| Parameters | MSP30HBG2 | MSP25HBG2 | MSP15HBG2 |
|---|---|---|---|
| Battery-side Parameters | |||
| Maximum Battery Voltage | 850V | 850V | 850V |
| Rated Battery Range | 200V | 200V | 200V |
| Rated Battery Voltage Range | 320V-820V | 320V-820V | 200V-820V |
| Maximum Battery Current | 100A | 80A | 80A |
| PV Parameters | |||
| Maximum Power | 19.2 KW+19.2 KW | 15 KW+15 KW | 15 KW+15 KW |
| Maximum PV Voltage | 850V | 850V | 850V |
| PV Starting Voltage | 250V | 250V | 250V |
| MPPT Voltage Range | 200V-800V | 200V-800V | 200V-800V |
| Maximum PV Current | 32A+32A | 25A+25A | 25A+25A |
| AC Side (Grid-connected) | |||
| Rated Power | 30kVA | 25kVA | 15kVA |
| Rated Current | 43.5A | 36.2A | 22A |
| Rated Grid Voltage | 400V/230V | ||
| Grid Voltage Range | -20% ~ 15% | ||
| Starting Surge Current | 8.5A | ||
| Grid Frequency Range | 50Hz(47Hz ~ 52Hz) or 60Hz(57Hz ~ 62Hz) | ||
| Current Harmonic | < 3% | ||
| Power Factor | -1 ~ 1 | ||
| AC Side (Off-grid) | |||
| Rated Output Power | 30kVA | 25kVA | 15kVA |
| Maximum Output Power | 33kVA | 27.5kVA | 16.5kVA |
| Maximum Output Current | 43.5A | 40A | 24.2A |
| Rated Voltage | 400V/230V | ||
| Output Voltage Harmonic | < 3% | ||
| Unbalance Degree | 100% | ||
| Output Overload | 1.1 times long-term / 1.25 times 100S / 1.5 times 100ms | ||
| System Parameters | |||
| Grid/Off-grid Switching Time | < 10 ms | ||
| Maximum Efficiency | 97.80% | ||
| Power Consumption | Standby < 20W / No-load < 100W | ||
| Protection Grade | IP20 (Core control part IP5X) | ||
| Dimensions | W*L*H: 440*560*183mm | ||
| Weight | 35kg | ||
| Temperature Range | -25 ~ 60°C (Derating used above 45°C) | ||
| Humidity | 5 ~ 95% | ||
| Cooling Method | Intelligent forced air cooling | ||
| Altitude | 4000m (2000m above derating used) | ||
