Description

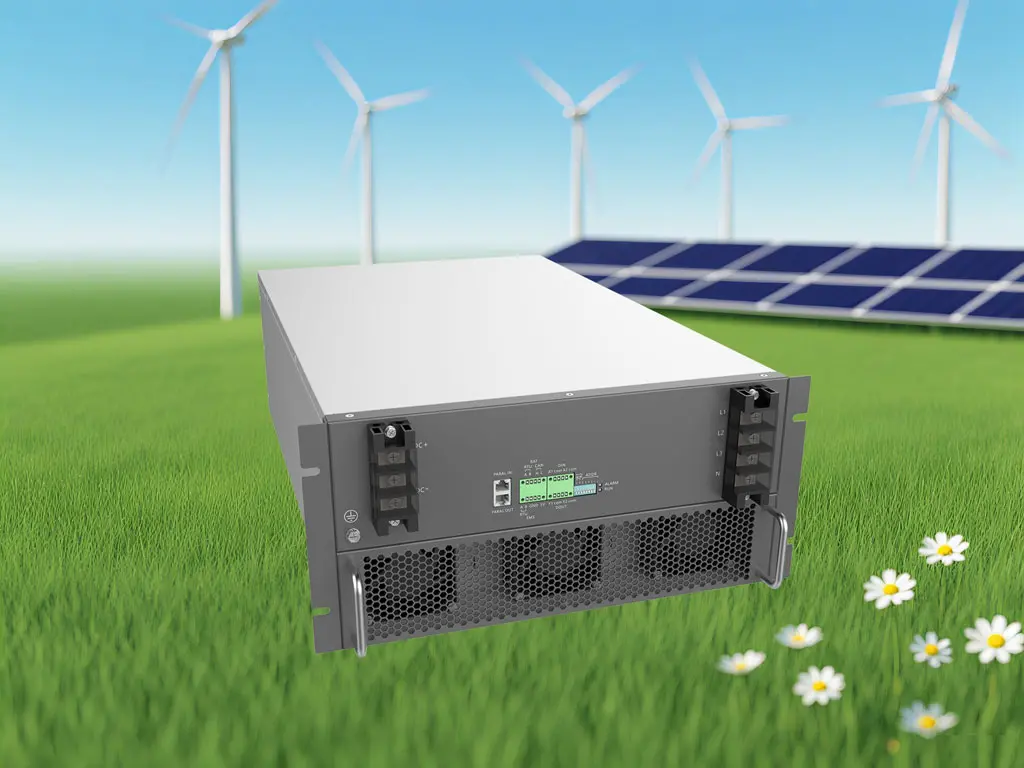

This is a highly efficient and reliable energy storage inverter mainly developed for small and medium-sized energy storage microgrids. It is equipped with a grid-connected and off-grid switching device, supporting multiple units to operate in parallel, oil-engine hybrid operation, and rapid grid-connected and off-grid switching. It is applicable to various scenarios such as small-scale industrial and commercial enterprises, small island microgrids, farms, villas, and battery secondary utilization, meeting the needs of different users.
System Overview
Industrial and Commercial Energy Storage + Emergency Power Backup
This system combines energy storage solutions with emergency power backup capabilities to ensure uninterrupted power supply for industrial and commercial applications.
Small and Medium-Sized Optical Storage-Diesel Microgrid
A microgrid system that integrates optical energy storage and diesel power generation, suitable for small and medium-sized applications to provide reliable and sustainable energy.
Mobile Energy Storage
Portable energy storage units that can be easily transported and deployed to provide power where and when it is needed.
Optical Storage Charging Station
Charging stations equipped with optical energy storage technology to efficiently store and utilize solar energy for charging purposes.
Product Highlights
- 01. Grid-connected inverter: A type of inverter designed to connect to the electrical grid, enabling the flow of power between the local power generation system and the grid.
- 02. 125% overloading capacity: This feature allows the system to handle loads that are 25% higher than its rated capacity for certain durations, offering flexibility during peak demand.
- 03. Oil-electric hybrid mode: Combines oil-based and electric power sources to create a more efficient and reliable power solution, taking advantage of both energy forms.
- 04. Seamless switching function: Enables smooth transition between different power sources or operating modes without interruption to the power supply.
- 05. Three-phase independent grid-connection control technology: Allows independent control and management of each of the three phases in a three-phase electrical system, improving overall system performance and stability.
- 06. Microgrid battery heterostructure: Refers to a specialized structure used in microgrid batteries, which can enhance battery performance, storage capacity, and overall efficiency within a microgrid system.
Product Parameters
| Parameter | MSP100HC |
|---|---|
| Battery-side Parameters | |
| Maximum Battery Voltage | 950V |
| Rated Battery Range | 600V |
| Rated Battery Voltage Range | Grid-connected: 600V-950V / Off-grid: 650V-950V |
| Maximum Battery Current | 180A |
| AC Side (Grid-connected) | |
| Rated Power | 100kVA |
| Rated Current | 152A |
| Rated Grid Voltage | 400V/230V |
| Grid Voltage Range | -20% ~ 15% |
| Grid Frequency Range | 50Hz(47Hz ~ 52Hz) or 60Hz(57Hz ~ 62Hz) |
| Current Harmonic | < 3% |
| Power Factor | -1 ~ 1 |
| AC Side (Off-grid) | |
| Rated Output Power | 100kVA |
| Maximum Output Power | 110kVA |
| Maximum Output Current | 152A |
| Rated Voltage | 400V/230V |
| Output Voltage Harmonic | < 1.5% |
| Unbalance Degree | 100% |
| Output Overload | 1.1 times long-term / 1.25 times 100S / 1.5 times 100ms |
| System Parameters | |
| Grid/Off-grid Switching Time | < 10 ms |
| Maximum Efficiency | 98.50% |
| Power Consumption | Standby < 15W / No-load < 130W |
| Protection Grade | IP20 (Core control part IP5X) |
| Dimensions | W*L*H: 440*720*220mm |
| Weight | 48kg |
| Temperature Range | -30 ~ 60°C (Derating used above 45°C) |
| Humidity | 0 ~ 100% |
| Cooling Method | Intelligent forced air cooling |
| Altitude | 4000m (Derating used above 3000m) |
