Description
The IM100-10K series high-frequency switching rectifier module is an AC-DC module with adjustable AC voltage input and DC voltage output. The module adopts DSP digital control, resonant soft switching, active PFC technology, and is protected by multiple patents. The module features high power density, high power factor, low harmonics and high efficiency, and has the performance of allowing multiple modules to be paralleled.
Application Fields
Logistics forklift charging
Automation devices
Aging equipment
Industrial control
Instrumentation
Functional Features
High efficiency, high power density
Supports hot-swapping and parallel operation
DSP digital control
Comprehensive fault detection and prompts
Low input harmonic
Features triple-proof protection
Wide operating temperature
● High efficiency
Reduces energy consumption, complies with energy-saving and emission-reduction requirements, saving customers electricity costs.
● High power density
Saves customer space and reduces system costs.
● DSP digital control
Fewer components, higher environmental stability, higher reliability, and more convenient expansion.
● Low input harmonic
Reduces pollution to the power grid and improves grid adaptability.
● Wide input voltage range, wide output voltage range
Suitable for most different input and output voltage scenarios.
● Wide operating temperature range
Meets the requirements of most harsh working environments.
● Hot-swapping
Convenient for use and reduces maintenance costs.
● Comprehensive fault self-detection and prompts
Rich fault detection, facilitating customer maintenance.
Detailed Parameters
| Project | Parameter Index |
|---|---|
| Module Type | IM48-9K, IM100-10K, IM150-10K |
DC Output
| IM48-9K | IM100-10K | IM150-10K | |
|---|---|---|---|
| Rated Output Power | 9kW | 10kW | |
| Rated Output Current | 150A | 100A | 75A |
| Output Voltage Range | 20VDC ~ 60VDC | 30VDC ~ 100VDC | 50VDC ~ 150VDC |
| Current-limiting Adjustable Range | 10% ~ 110% stepless adjustable | ||
| Peak-to-peak Noise | ≤1% | ||
| Telephone Weighting Noise | No requirement | ||
| Voltage Stabilization Accuracy | ≤±0.5% | ||
| Current Stabilization Accuracy | ≤±1% | ||
| Average Current | ≤±5% | ||
| Efficiency | ≥95% |
AC Input
| Rated Input Voltage | Three-phase 380Vac/480Vac |
| Input Voltage Range | 323Vac ~ 520Vac (full load), 323Vac ~ 260Vac (linear down to half load) |
| Input Current | <20A |
| Frequency | 45Hz ~ 65Hz |
| Power Factor (PF) | ≥0.99 |
| Total Harmonic Distortion (THD) | ≤5% |
| Input Protection | Fuse; lightning protection circuit |
Working Environment Conditions
| Working Environment Temperature | -40°C ~ 50°C normal operation; 50°C ~ 75°C derating output |
| Storage Temperature | -40°C ~ 75°C |
| Relative Humidity | 0 ~ 95% |
| Altitude | 2000m full-load output |
Product Safety and Reliability
| Insulation Strength | Input to chassis can withstand 50Hz effective value 2500VAC or equivalent 3535VDC withstand voltage for 1 minute; input to output can withstand 50Hz effective value 3000VAC or equivalent 4242VDC withstand voltage for 1 minute |
| MTBF | >120000 hours |
Appearance Size and Weight

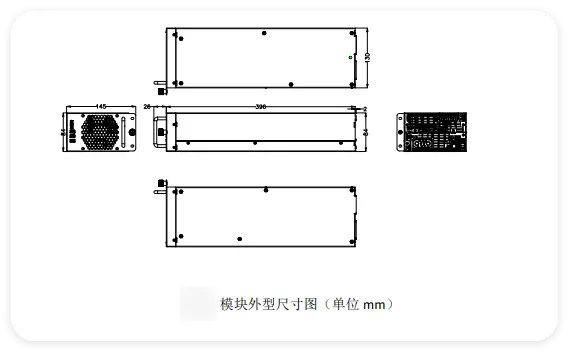

| Appearance Size | 130 (width) × 84 (height) × 396 (depth) mm |
| Module Net Weight | 7kg |
Communication and Alarm

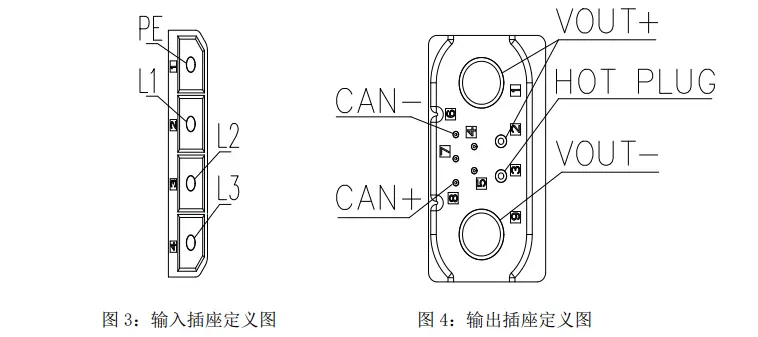

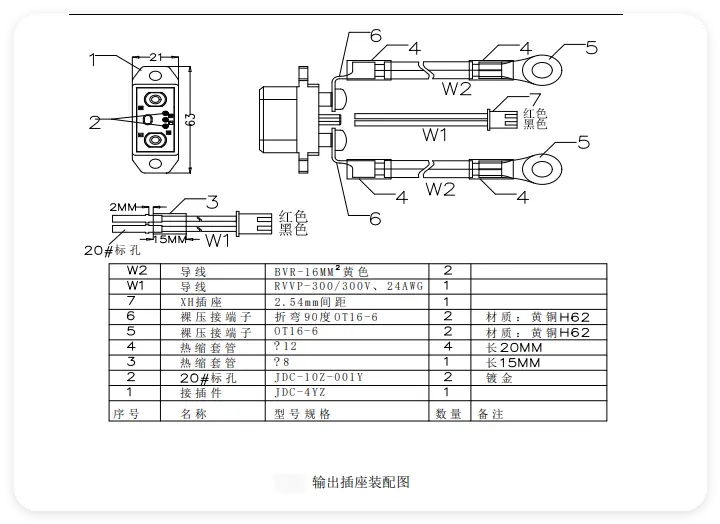

| Communication Interface | CAN |
| Maximum Parallel Quantity | 60 |
| Output positive and negative insurance protection | |

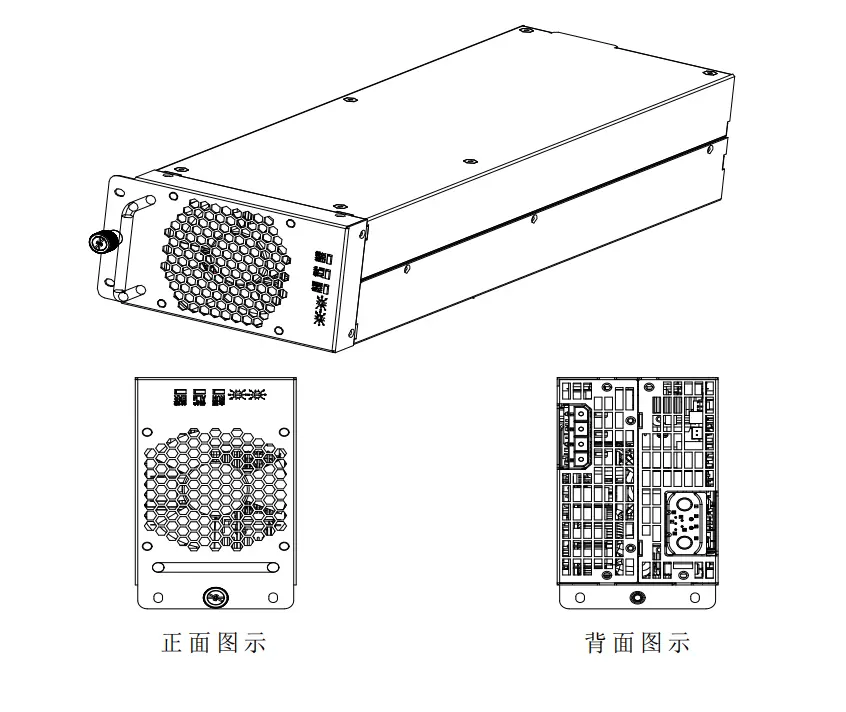

| Alarm and status are monitored through the CAN communication interface, and indicated by three panel LEDs |
