Description

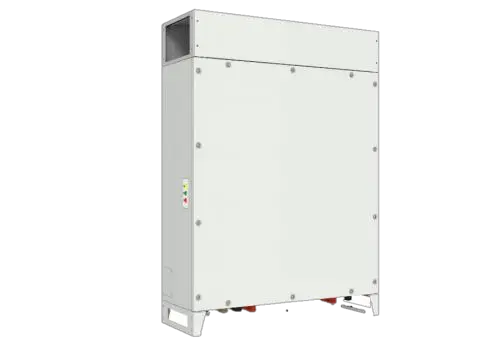

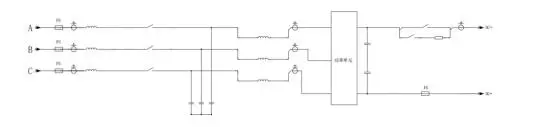

215kW modular power conversion system (PCS)
Modular Converter for 5MW (24 DC Circuits) String-type Boost Integrated Machine & 314Ah Distributed Energy Storage System
This product is a modular converter specifically designed for 5MW (24 DC circuits) string-type boost integrated machines and 314Ah distributed energy storage systems. With a rated power of 215kW, it offers a wide battery voltage range of 1000~1500V and an IP66 high protection rating. It can be flexibly adapted to both centralized energy storage power stations and user-side distributed energy storage cabinets.
Product Features
- 26 AC-side Direct Parallel Connections: Supports up to 26 AC-side direct parallel connections, enabling flexible system expansion and high system availability. This feature simplifies system design and enhances reliability.
- Grid-Forming Function: Equipped with grid-forming capabilities, allowing it to operate stably in various grid conditions and support grid stability during fluctuations.
- Integrated Three-Drawer and Cube Design: Combines three drawers and a cube into one unit, offering flexible installation options and saving space. This design facilitates easy maintenance and replacement.
- IP66 High Protection Rating: With an IP66 rating, it can withstand harsh environments, including dust, moisture, and extreme temperatures, ensuring reliable operation in diverse conditions.
- Maximum Efficiency > 99%: Achieves a maximum efficiency greater than 99%, minimizing energy losses and maximizing system performance. This high efficiency contributes to lower operating costs and higher returns on investment.
- High/Low Voltage Ride-Through and Continuous Fault Ride-Through: Meets the requirements of GB/T34120-2023, providing high/low voltage ride-through and continuous fault ride-through functions. This ensures stable operation during grid disturbances and enhances system resilience.
Technical Parameters
- DC Voltage Range: 1000~1500V (full load: 1050~1500V)
- Maximum DC Side Current: 245A
- Allowable AC Voltage Range: 690V (-15% to +15%)
- Operating Temperature: -25~60°C (full load operation above 45°C)
- Protection Class: IP66
- Noise Level: ≤75dB
- Maximum Conversion Efficiency: ≥99%
- Weight: 90kg
- Altitude: <4000m (derating above 2000m)
- Dimensions (WidthDepthHeight): 750820275mm

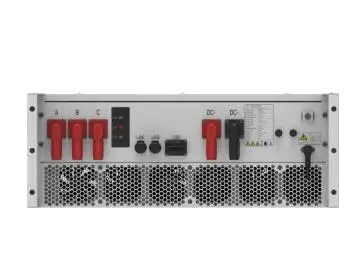

- Structural Wiring: Primary and secondary front, front air intake and rear air outlet
