1MWp PV + 750kW/1MWh Storage Hybrid System for a West African Industrial Plant — Zero-Export with Grid/Diesel Dual-Source Switching

Abstract

This case study presents a 1,000.16 kWp rooftop PV array paired with a 750 kW / 1,000 kWh liquid-cooled containerized battery energy storage system (BESS) deployed at an industrial manufacturing facility in West Africa (5.3°N). The system is designed for self-consumption with zero-export (anti-reverse power) operation, seamless grid-tied/off-grid switching via static transfer switch (STS) and automatic transfer switch (ATS), and dual AC source integration with a 475 kVA diesel generator. The load profile comprises two 110 kW and two 37 kW variable-frequency drive (VFD) motors plus lighting and HVAC, all soft-starting, which eliminates inrush current concerns. The energy dispatch strategy follows PV > storage > grid > diesel, maximizing solar self-consumption while ensuring uninterrupted power supply in a region characterized by weak grid infrastructure and frequent outages. Per IEC 62619:2022, the lithium battery system meets industrial stationary storage safety requirements including thermal runaway propagation testing and BMS safety analysis.

1. Project Overview

The project is located in West Africa at approximately 5.3°N latitude, a region classified as low-latitude tropical with annual global horizontal irradiation (GHI) ranging from 1,700 to 1,900 kWh/m². According to solar resource assessments across the ECOWAS region, mean daily solar radiation exceeds 5.5 kWh/m² across most of West Africa, with the Sahel and Sudan zones receiving 5.0 to 6.5 kWh/m²/day. The site benefits from 1,640 to 1,900 actual sunshine hours annually, with an average effective daily sunshine duration of 4.5 to 5.2 hours — significantly higher than temperate regions. A well-optimized 1 kWp PV installation at this latitude yields approximately 1,400 to 1,600 kWh per year.

The client operates a manufacturing facility with three production plants served by a single 1,000 kVA distribution transformer (33 kV / 0.416 kV, Dyn11, 50 Hz). The existing electrical infrastructure includes a three-phase automatic compensation voltage regulator (SBWF-1500 kVA), a GGD-type incoming cabinet with manual diesel generator bypass, a compensation cabinet with 150 kvar collective compensation and 30 kvar branch compensation, and an outgoing cabinet equipped with molded case circuit breakers (800 A ×1, 630 A ×2, 400 A ×1, 160 A ×1). A 475 kVA diesel generator is connected to the incoming cabinet via a manual disconnect switch for backup power during grid outages.

The PV+storage system is dedicated to supplying one of the three production plants. The dedicated load consists of two 110 kW motors and two 37 kW motors, all equipped with variable-frequency drives (VFDs) for soft starting, plus lighting, air conditioning, and auxiliary loads. Because all large motors use VFD startup, inrush current is not a design concern, allowing the PCS to be sized for steady-state load rather than peak starting current. The client’s core requirements are: (1) self-consumption of PV generation with surplus energy stored in the battery; (2) zero-export (anti-reverse power) to prevent any feedback into the utility grid; (3) uninterrupted grid-tied/off-grid switching capability; and (4) dual AC source integration with the existing diesel generator.

2. Project Challenges

2.1 Weak Grid and Frequent Outages

West African power grids are characterized by limited generation capacity, aging transmission and distribution infrastructure, and frequent unplanned outages. According to the International Energy Agency (IEA), nearly half of the population in sub-Saharan Africa lacks access to electricity, and those connected often experience unreliable supply with voltage fluctuations and frequency deviations. The existing 1,000 kVA transformer at the site is already loaded by three production plants, leaving limited headroom for additional load. The client relies on a 475 kVA diesel generator for backup, but diesel fuel costs in West Africa are among the highest globally, making generator-only backup economically unsustainable for continuous operation.

2.2 Zero-Export (Anti-Reverse Power) Requirement

The utility prohibits any reverse power flow from the client’s PV system into the grid. This zero-export requirement is common in regions where net metering policies are absent or where the grid infrastructure cannot accommodate distributed generation feedback. As documented in zero-export system design guidelines, the control strategy must continuously monitor power at the point of common coupling (PCC) using smart meters and current transformers, and dynamically curtail inverter output or redirect surplus generation to battery storage within milliseconds when reverse power is detected. The four-quadrant metering capability tracks both active and reactive power in both directions, providing precise data to verify that zero grid feed-in is maintained under all operating conditions.

2.3 Tropical Climate and High Ambient Temperatures

The site experiences tropical climate conditions with high ambient temperatures, high humidity, and a distinct rainy season from June to October characterized by heavy cloud cover and frequent rainfall. PV module performance is affected by temperature coefficients: the selected 560 Wp N-type modules have a PMPP temperature coefficient of -0.29%/°C, Voc coefficient of -0.26%/°C, and Isc coefficient of +0.045%/°C, with a nominal operating cell temperature (NOCT) of 45±2°C. At high ambient temperatures, actual PV output can be 10-15% below STC ratings. For the battery energy storage system, liquid cooling is essential to maintain optimal cell operating temperature (25-35°C) and prevent accelerated degradation in the tropical environment. The rainy season reduces effective sunshine hours, requiring the battery and diesel generator to compensate for reduced PV generation during extended cloudy periods.

2.4 Non-Standard Battery Configuration

The client’s battery configuration is non-standard: the system is designed with 6 battery clusters of 209 kWh each (total 1,254 kWh nominal, usable capacity configured to approximately 1,000 kWh), paired with 6 PCS units of 125 kW each (total 750 kW). This results in a discharge rate below the conventional 0.5C benchmark — the effective C-rate is approximately 0.375C based on usable capacity. The client is fully aware that this configuration is not optimally balanced and may require customization based on field conditions. As the system integrator, ImaxPWR respects the client’s field-based decisions and designs the PCS, EMS, and thermal management to accommodate the specified battery configuration rather than imposing a standard 0.5C architecture. The PCS is sized to match the battery’s safe discharge capability, and the EMS implements conservative charge/discharge rate limits to protect battery health over the project lifecycle.

3. Engineering Analysis

3.1 Load Analysis

The dedicated load for the PV+storage system consists of two 110 kW VFD motors, two 37 kW VFD motors, plus lighting, HVAC, and auxiliary loads. The total connected motor load is 294 kW, with estimated auxiliary loads of 30-50 kW, yielding a total peak load of approximately 325-344 kW. Because all motors are VFD-controlled, starting current is limited to 1.2-1.5 times rated current (compared to 5-7 times for direct-on-line starting), eliminating the need for PCS overload capability to handle motor inrush. The load profile follows typical industrial production schedules with two-shift operation, resulting in a relatively flat daytime load curve that aligns well with PV generation hours. Nighttime loads are lower, primarily lighting and security systems, allowing the battery to discharge during evening peak hours and charge during off-peak grid hours when available.

3.2 PV Resource and Generation Estimate

The PV array comprises 1,786 modules of 560 Wp N-type bifacial lightweight modules, totaling 1,000.16 kWp. Under STC conditions (1,000 W/m², 25°C cell temperature, AM 1.5 spectrum), each module produces 560 W with a maximum power voltage (Vmp) of 45.29 V, maximum power current (Imp) of 12.37 A, open-circuit voltage (Voc) of 53.05 V, and short-circuit current (Isc) of 12.96 A. Under NOCT conditions (800 W/m², 20°C ambient, 1 m/s wind), output drops to 421.68 Wp per module. Accounting for system losses (inverter efficiency 97%, cable losses 2%, temperature derating 8-12%, dust/soiling 3-5%, mismatch 2%), the practical performance ratio (PR) is estimated at 0.75-0.80. Based on the site’s annual GHI of 1,700-1,900 kWh/m² and 1,400-1,600 kWh/kWp specific yield, the annual PV energy production is estimated at 1.4-1.6 GWh.

3.3 MPPT and PV Integration Design

The PV array is divided into 6 MPPT channels, each with 180 kW capacity, totaling 1,080 kW MPPT capacity — providing a 1.08:1 PV-to-MPPT ratio for optimal harvesting. Each MPPT channel manages approximately 298 modules (1,786 ÷ 6 ≈ 298), configured in series strings to match the MPPT voltage range. The N-type module’s Voc of 53.05 V at STC and 50.40 V at NOCT, combined with the -0.26%/°C temperature coefficient, requires careful string sizing to ensure that the maximum series voltage (at lowest ambient temperature) does not exceed the MPPT input voltage limit, while the minimum voltage (at highest cell temperature) remains above the MPPT minimum operating voltage. The 6 MPPT channels feed into a common DC bus, which is shared with the battery clusters through DC/DC converters, enabling flexible power routing between PV generation, battery charging/discharging, and the PCS inversion stage.

4. Solution Design

4.1 System Architecture

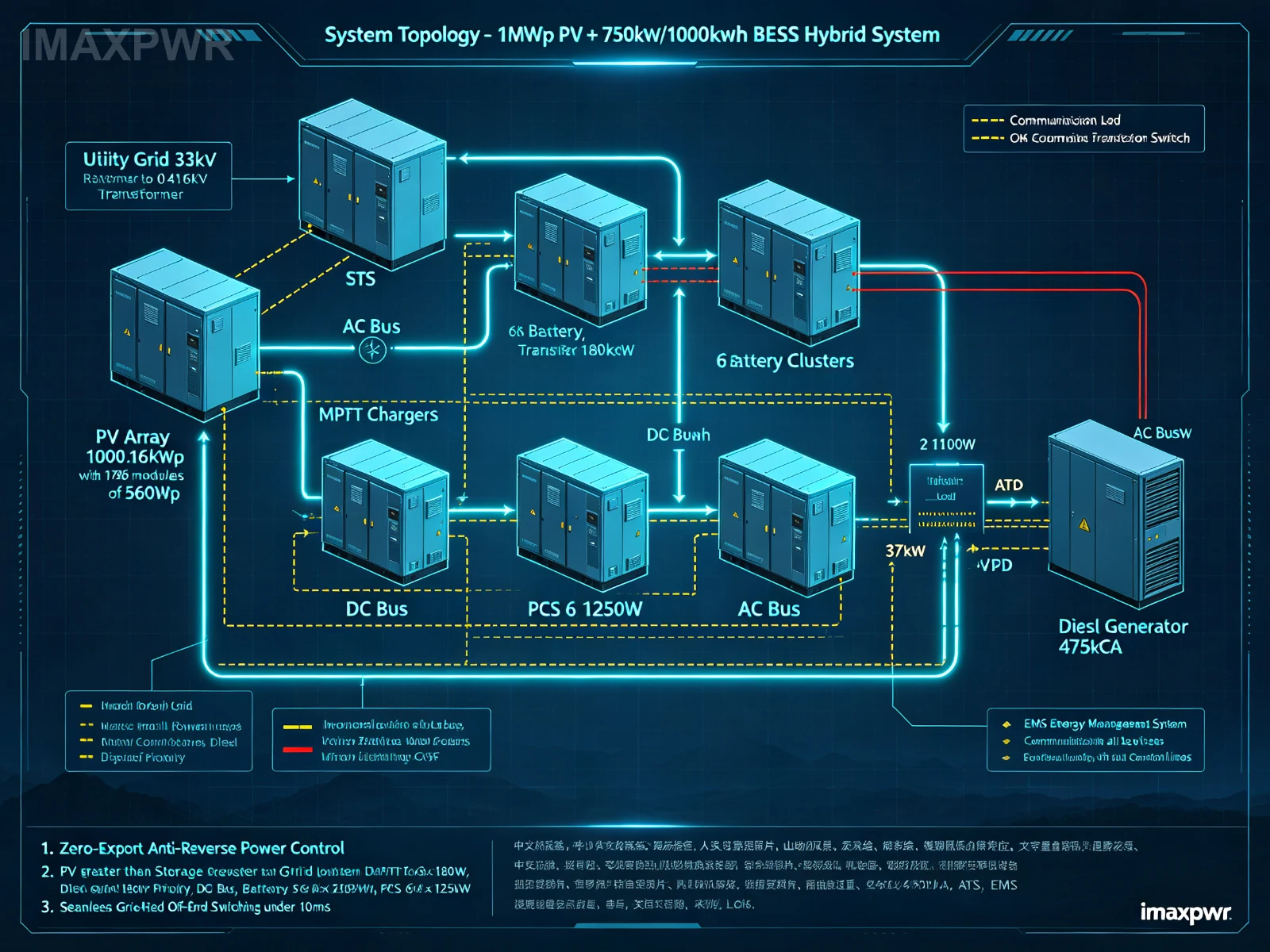

The solution is an all-in-one containerized PV+storage hybrid system integrated into a standard shipping container. The container houses all critical components: 6 battery clusters (209 kWh each), 6 PCS units (125 kW each), 6 MPPT channels (180 kW each), AC incoming unit, PV incoming unit, STS unit, ATS unit, EMS communication unit, auxiliary power distribution unit, liquid cooling unit with piping, fire suppression system, and ventilation fans. The container is designed for plug-and-play deployment, with pre-wired internal connections and external quick-connect terminals for PV array, grid, diesel generator, and load connections.

The power flow architecture follows a DC-coupled hybrid topology: PV arrays → MPPT DC/DC converters → common DC bus → battery clusters via bidirectional DC/DC → PCS (DC/AC inversion) → AC bus → load. The AC bus is connected to the utility grid through an STS (static transfer switch) for seamless grid-tied/off-grid transition, and to the diesel generator through an ATS (automatic transfer switch) for backup power integration. The PCM600 power conversion modules (×2) and 1600 A ATS manage the AC-side switching and protection, ensuring safe transition between grid and diesel sources without interrupting the critical load.

4.2 Energy Dispatch Strategy: PV > Storage > Grid > Diesel

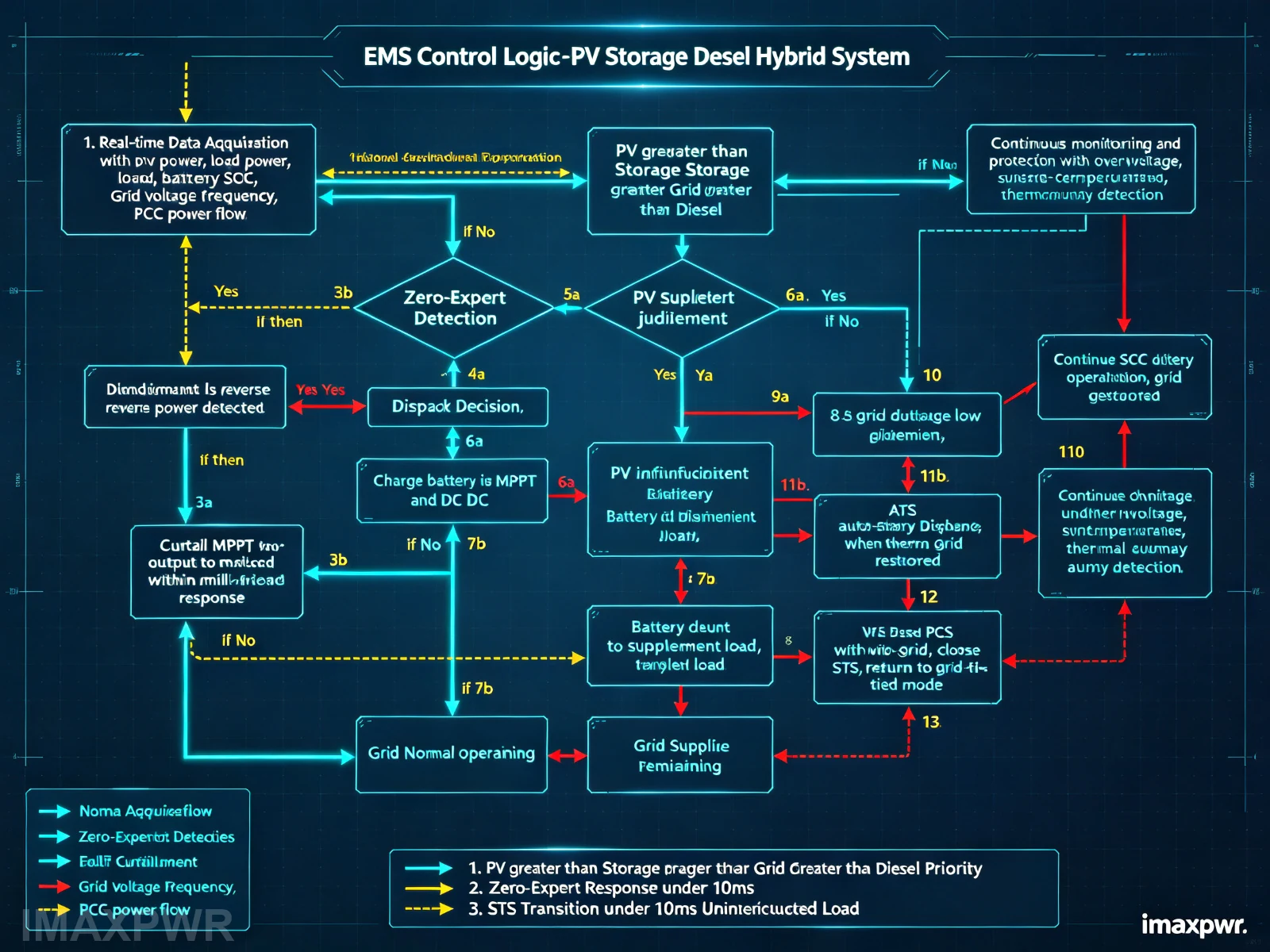

The EMS implements a hierarchical energy dispatch strategy with the priority order PV > storage > grid > diesel. During daylight hours, PV generation is first directed to supply the local load. Any surplus PV generation charges the battery through the MPPT and DC/DC converters. When PV generation is insufficient to meet the load, the battery discharges to supplement. If the battery is depleted and PV remains insufficient, the system draws power from the utility grid. Only when the grid is unavailable (outage) and the battery is depleted does the ATS automatically start and connect the diesel generator. This priority hierarchy maximizes solar self-consumption, minimizes grid purchases, and eliminates unnecessary diesel runtime — directly addressing the client’s self-consumption and cost-reduction objectives.

4.3 Zero-Export (Anti-Reverse Power) Control

The zero-export function is implemented through a combination of smart metering, real-time EMS monitoring, and dynamic power curtailment. A bidirectional smart meter installed at the PCC continuously measures active and reactive power flow in both directions. When the EMS detects that PV generation exceeds load consumption and the battery is fully charged (or charging power is limited), it immediately reduces the MPPT output power to match the load demand, preventing any reverse power flow into the grid. The response time from detection to curtailment is within milliseconds, ensuring that grid feed-in remains at or near zero at all times. This approach is consistent with industry best practices for zero-export systems, as documented in commercial PV+storage design guidelines, which recommend RS485 wired anti-reverse flow control for medium-sized commercial and industrial solar PV systems with centralized grid connection points. The EMS also implements a four-quadrant metering verification function, logging all power flow data for compliance reporting and performance analysis.

4.4 Grid-Tied/Off-Grid Switching with STS+ATS

The system supports seamless transition between grid-tied and off-grid operating modes through the coordinated action of STS and ATS. In grid-tied mode, the PCS operates in current-controlled mode, synchronized with the grid voltage and frequency. When the EMS detects a grid outage (voltage loss or frequency deviation beyond acceptable limits), the STS rapidly disconnects from the grid within milliseconds (<10 ms typical), and the PCS transitions to voltage/frequency (V/F) control mode to establish a stable microgrid for the local load. If the battery SOC is insufficient to sustain the load in off-grid mode, the ATS automatically starts the diesel generator and synchronizes it with the PCS output, transferring load power to the generator while the battery charges or remains on standby. When grid power is restored, the EMS verifies voltage and frequency stability, then synchronizes the PCS with the grid and closes the STS to return to grid-tied mode. The entire transition process is automated and requires no manual intervention, ensuring uninterrupted power supply for critical industrial processes.

4.5 Key Equipment Specifications

5. Implementation and Expected Results

5.1 Deployment and Commissioning

The containerized system is delivered as a fully integrated, pre-tested unit, significantly reducing on-site installation time. The deployment process involves: (1) site preparation and foundation construction for the container; (2) PV array mounting and string wiring on the factory rooftop; (3) container placement and external connection of PV cables, grid cables, diesel generator cables, and load cables via quick-connect terminals; (4) liquid cooling system commissioning, including coolant filling, pump calibration, and flow rate verification; (5) fire suppression system testing, including smoke detector calibration and extinguishing agent discharge test; (6) EMS configuration, including setting dispatch parameters (PV > storage > grid > diesel priority), zero-export thresholds, battery charge/discharge limits, and STS/ATS switching logic; (7) grid-tied operation testing, including synchronization verification, power quality monitoring, and zero-export compliance testing; (8) off-grid operation testing, including grid outage simulation, STS transition time measurement, diesel generator auto-start and synchronization testing, and load continuity verification; and (9) final performance validation and handover with client training on the EMS monitoring platform.

5.2 Expected Performance Metrics

Note: Performance metrics are engineering estimates based on site solar resource data, system configuration, and load profile analysis. Actual performance will be validated during commissioning and ongoing operation. The client has been informed that the non-standard battery configuration (below 0.5C discharge rate) may result in reduced peak power output compared to a standard 0.5C system, and the PCS has been sized accordingly.

6. Key Takeaways

• Containerized all-in-one design minimizes deployment time — integrating PV MPPT, battery, PCS, STS, ATS, EMS, cooling, and fire suppression into a single container reduces on-site installation from weeks to days, critical for remote West African sites with limited local technical resources.
• DC-coupled hybrid topology enables efficient PV-storage integration — the shared DC bus allows direct PV-to-battery charging without double conversion losses, improving overall system efficiency by 3-5% compared to AC-coupled alternatives, while maintaining flexible power routing.
• Zero-export control is essential for grid compliance in emerging markets — where net metering policies are absent and grid infrastructure cannot accommodate reverse power flow, real-time PCC monitoring with millisecond-scale MPPT curtailment ensures compliance while maximizing self-consumption through battery storage.
• STS+ATS dual-source architecture provides uninterrupted power — the sub-10ms STS transition ensures no load interruption during grid outages, while the ATS-managed diesel generator provides extended backup when battery capacity is exhausted, creating a three-tier redundancy (grid + battery + diesel).
• VFD motor loads simplify PCS sizing — because all large motors use variable-frequency drives with soft starting, inrush current is eliminated, allowing the PCS to be sized for steady-state load rather than peak starting current, reducing system cost without compromising reliability.
• Liquid cooling is mandatory for tropical BESS deployment — in West Africa’s high-temperature, high-humidity environment, liquid cooling maintains battery cell temperature within the optimal 25-35°C range, preventing accelerated degradation and ensuring safe operation per IEC 62619:2022 thermal runaway propagation requirements.

7. Frequently Asked Questions (FAQ)

Q1: Why is a DC-coupled topology chosen over AC-coupled for this West African industrial PV+storage project?

The DC-coupled hybrid topology was selected because it enables direct PV-to-battery charging through a shared DC bus, eliminating the double conversion losses (DC→AC→DC) inherent in AC-coupled systems. This improves overall round-trip efficiency by 3-5%, which is significant for a 1 MWp PV + 1 MWh storage system. Additionally, the DC-coupled architecture allows the MPPT, battery DC/DC, and PCS to be integrated into a single container, reducing footprint and simplifying deployment at remote sites. The system also supports grid-tied and off-grid operation through the PCS, which can switch between current-controlled (grid-tied) and V/F-controlled (off-grid) modes seamlessly.

Q2: How does the zero-export (anti-reverse power) system prevent PV feedback into the utility grid?

The zero-export function uses a bidirectional smart meter at the point of common coupling (PCC) to continuously monitor active and reactive power flow in both directions. When the EMS detects that PV generation exceeds load consumption and the battery is fully charged or charging power is limited, it immediately sends curtailment commands to the MPPT controllers to reduce PV output power, matching it to the load demand. The response time from detection to curtailment is within milliseconds, ensuring that reverse power flow remains at or near zero at all times. The four-quadrant metering capability logs all power flow data for compliance verification. This approach follows industry best practices for commercial and industrial zero-export systems, which recommend wired RS485 anti-reverse flow control for centralized grid connection points.

Q3: What happens during a grid outage, and how is uninterrupted power maintained for the industrial load?

When the EMS detects a grid outage (voltage loss or frequency deviation beyond acceptable limits), the static transfer switch (STS) disconnects from the grid within less than 10 milliseconds, and the PCS transitions from current-controlled grid-tied mode to voltage/frequency (V/F) off-grid mode, establishing a stable microgrid for the local load. If the battery state of charge (SOC) is sufficient, the system continues operating on battery power alone. If the battery SOC drops below a predefined threshold, the automatic transfer switch (ATS) automatically starts the 475 kVA diesel generator, synchronizes it with the PCS output, and transfers load power to the generator while the battery charges or remains on standby. When grid power is restored and verified stable, the EMS synchronizes the PCS with the grid and closes the STS to return to grid-tied mode. The entire process is fully automated with no manual intervention required, ensuring uninterrupted operation for critical industrial processes.

Q4: Why is the battery discharge rate below the standard 0.5C, and how does this affect system performance?

The client specified a non-standard battery configuration with 6 clusters of 209 kWh each (nominal 1,254 kWh, usable approximately 1,000 kWh) paired with 6 PCS units of 125 kW each (total 750 kW), resulting in an effective discharge rate of approximately 0.375C based on usable capacity — below the conventional 0.5C benchmark. The client is fully aware that this configuration is not optimally balanced and may require field customization. As the system integrator, ImaxPWR respects the client’s field-based decisions and has designed the PCS, EMS, and thermal management to accommodate the specified battery configuration. The PCS is sized to match the battery’s safe discharge capability, and the EMS implements conservative charge/discharge rate limits to protect battery health. While this results in lower peak power output compared to a standard 0.5C system, it is sufficient for the client’s load profile (approximately 325-344 kW peak) and aligns with the client’s specific site conditions and budget considerations.

Q5: How does the liquid cooling system protect the battery in West Africa’s tropical climate?

The containerized BESS is equipped with a liquid cooling system consisting of coolant distribution units (CDU), piping manifolds, and cell-level cooling plates. The system maintains battery cell temperature within the optimal range of 25-35°C even when ambient temperatures reach 40-45°C, which is common in West Africa’s tropical climate. The liquid cooling provides uniform temperature distribution across all battery cells (maximum cell-to-cell temperature differential ≤3°C), preventing localized hotspots that can accelerate degradation and create safety hazards. The cooling system is integrated with the BMS and EMS, which continuously monitor cell temperatures and adjust cooling capacity accordingly. This thermal management design is essential for compliance with IEC 62619:2022, which requires thermal runaway propagation testing — the liquid cooling system helps contain and dissipate heat in the event of a cell thermal runaway, preventing propagation to adjacent cells.
