Description
【Overview】

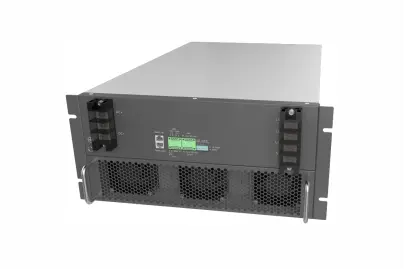

The STS module for grid-connected/off-grid switching employs static switch seamless switching technology, enabling uninterrupted transitions between grid-connected and off-grid modes. It features a DSP-based design and supports CAN/RS485 communication. This module finds extensive applications in scenarios requiring grid-connected/off-grid switching, such as weak grid areas and microgrid energy storage, ensuring continuous power supply to critical loads.
【Product Advantages】
- Three-phase five-wire system (3W+N+PE): Supports unbalanced off-grid loads.
- Compatibility with PCS modules: Achieves seamless grid-connected/off-grid switching, guaranteeing uninterrupted power to critical loads.
- Modular design: Simplifies installation and maintenance.
- Compact module structure: Offers high power density.
【Application Fields】
Weak Grid Areas and Microgrid Energy Storage

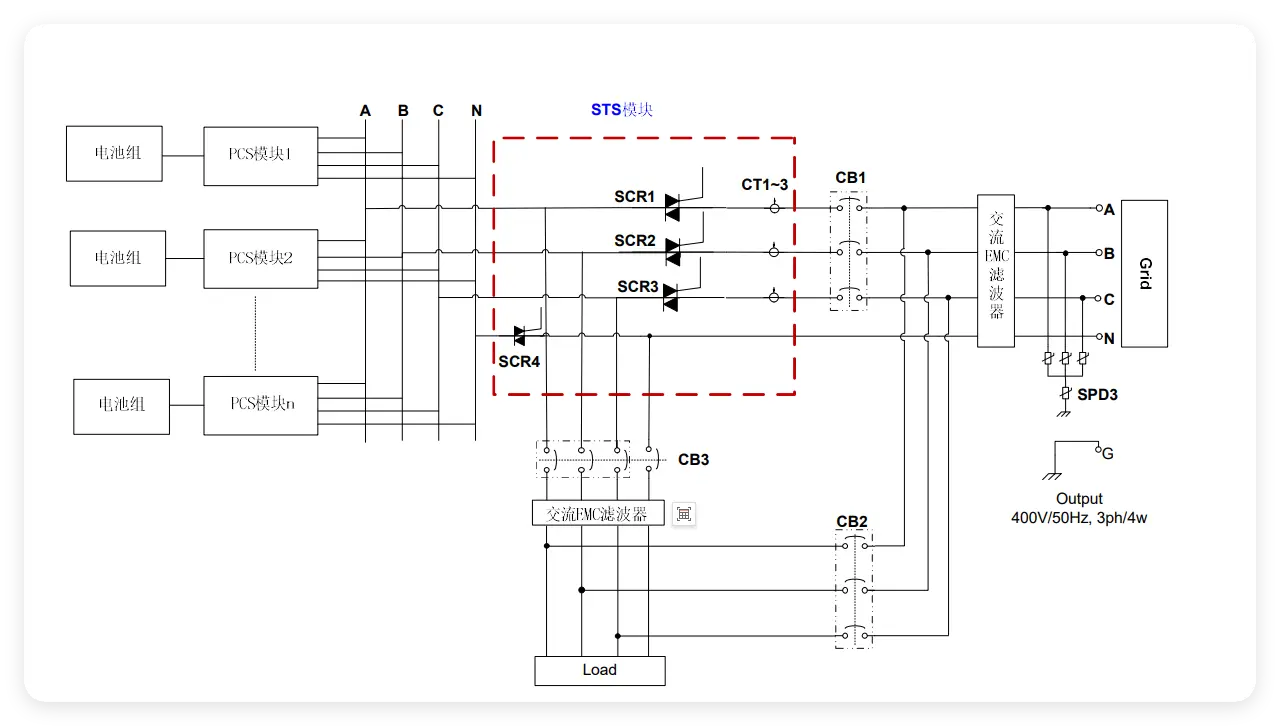

In application scenarios like weak grid areas and microgrid energy storage, when the grid is powered on, power flows bidirectionally between the battery and the grid, enabling charging/discharging functions, peak shaving, and valley filling to capitalize on electricity price differentials. In the event of a grid outage, the grid-connected/off-grid switching STS module switches to battery power, ensuring uninterrupted load
| Technical Specifications | Grid/Off-grid Switching STS Module |
|---|---|
| Product Name | Grid/Off-grid Switching STS Module |
| Product Models | STS-60K, STS-100K, STS-200K, STS-500K |
| Electrical Parameters | |
| System Type | Three-phase five-wire (3W+N+PE) |
| Rated Grid Voltage | 380/400/415Vac |
| Voltage Range | 304～485Vac |
| Rated Frequency | 50Hz |
| Frequency Range | 45～55Hz |
| Rated Current | STS-60K: 92A STS-100K: 152A STS-200K: 304A STS-500K: 760A |
| Rated Power | STS-60K: 60kW STS-100K: 100kW STS-200K: 200kW STS-500K: 500kW |
| Overload Capacity | 110%, long-term overload; 125%, overload for 10 minutes |
| Other Performances | |
| Protection Functions | Overvoltage protection: Available Overcurrent protection: Available Short-circuit protection: Available Over-temperature protection: Available Reverse power protection: Available |
| Operating Temperature | -30～65℃, output power derates above 55℃ |
| Storage Temperature | -40～75℃ |
| Noise | 65dB |
| Dimensions (WHD) | STS-60K: 44086480mm STS-100K: 440132480mm STS-200K: 440200435mm STS-500K: 440200435mm |
| Weight | STS-60K: 11kg STS-100K: 18kg STS-200K: 28kg STS-500K: 28kg |
| Protection Class | IP20 (single module) |
| Cooling Method | Forced air cooling |
