Description
The IBDC10050 power module is a DC/DC bidirectional conversion power module with a battery side voltage range of 30 to 100Vdc and a bus side voltage range of 200 to 420 Vdc. The power module features DC reverse connection protection, overcurrent protection, overvoltage protection, over-temperature protection, short circuit protection, and supports up to 32 units for parallel
expansion.
Features：
Support both charging and discharging working modes.
Support CAN bus/RS485 communication function
Supports 19-inch rack installation
Support LED display alarm
Digital control, multiple and multi-level protection.
Compliant with GB/T 34120-2017,GB /T 34133-2 017,UL1973,UL9540 standards
Application scenarios:
Fuel cell power generation
Integrated Solar-Storage-Charging Station
Vehicle-to-grid (V2G) interaction
Storage-Charging-Battery Testing Station
Battery secondary utilization

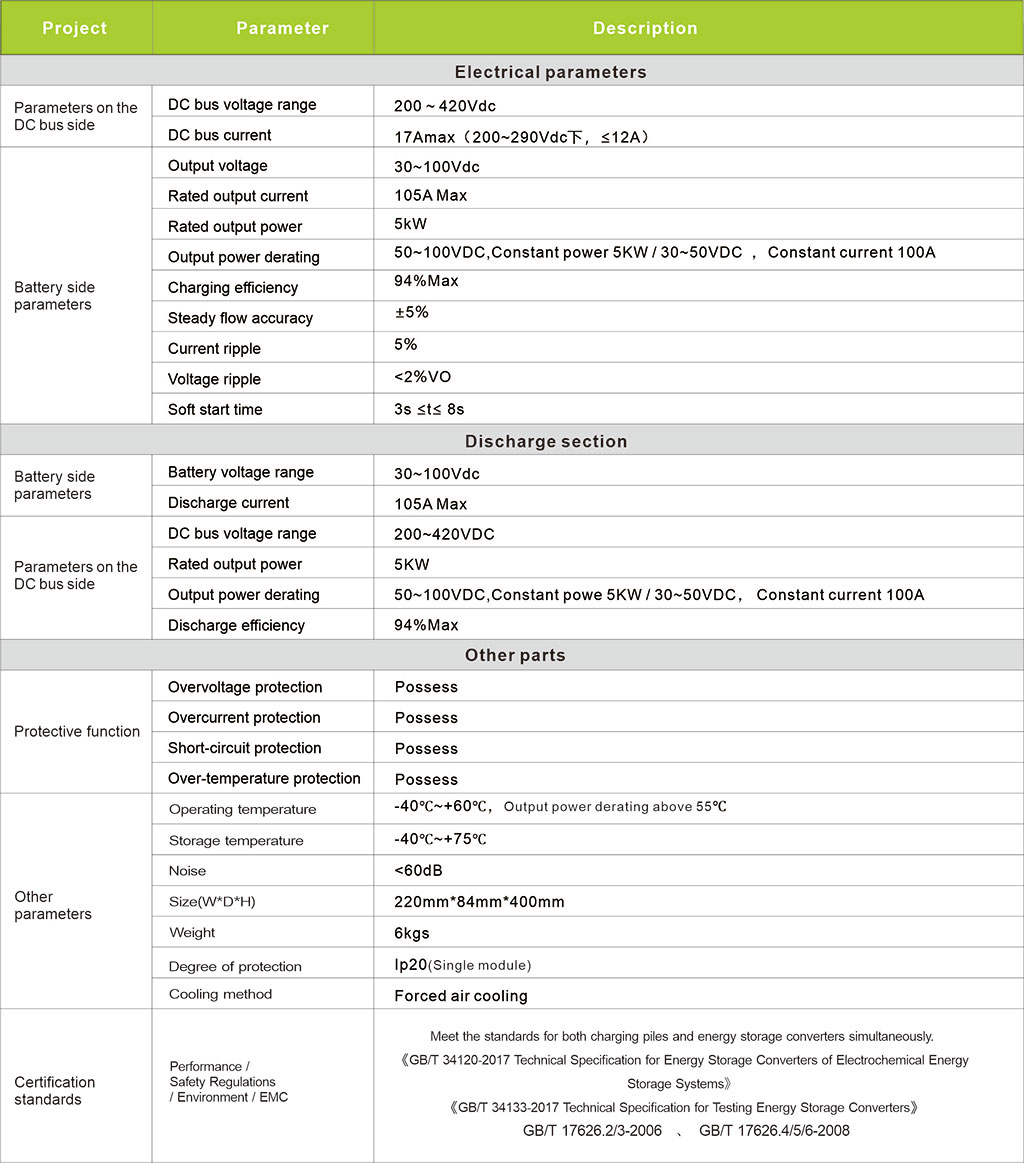

Technical Specifications:
1. Graph of the relationship between output power and battery voltage characteristics
2. Graph of the relationship between battery voltage and battery current characteristics
3. Output power and environmental temperature derating characteristic curve graph
