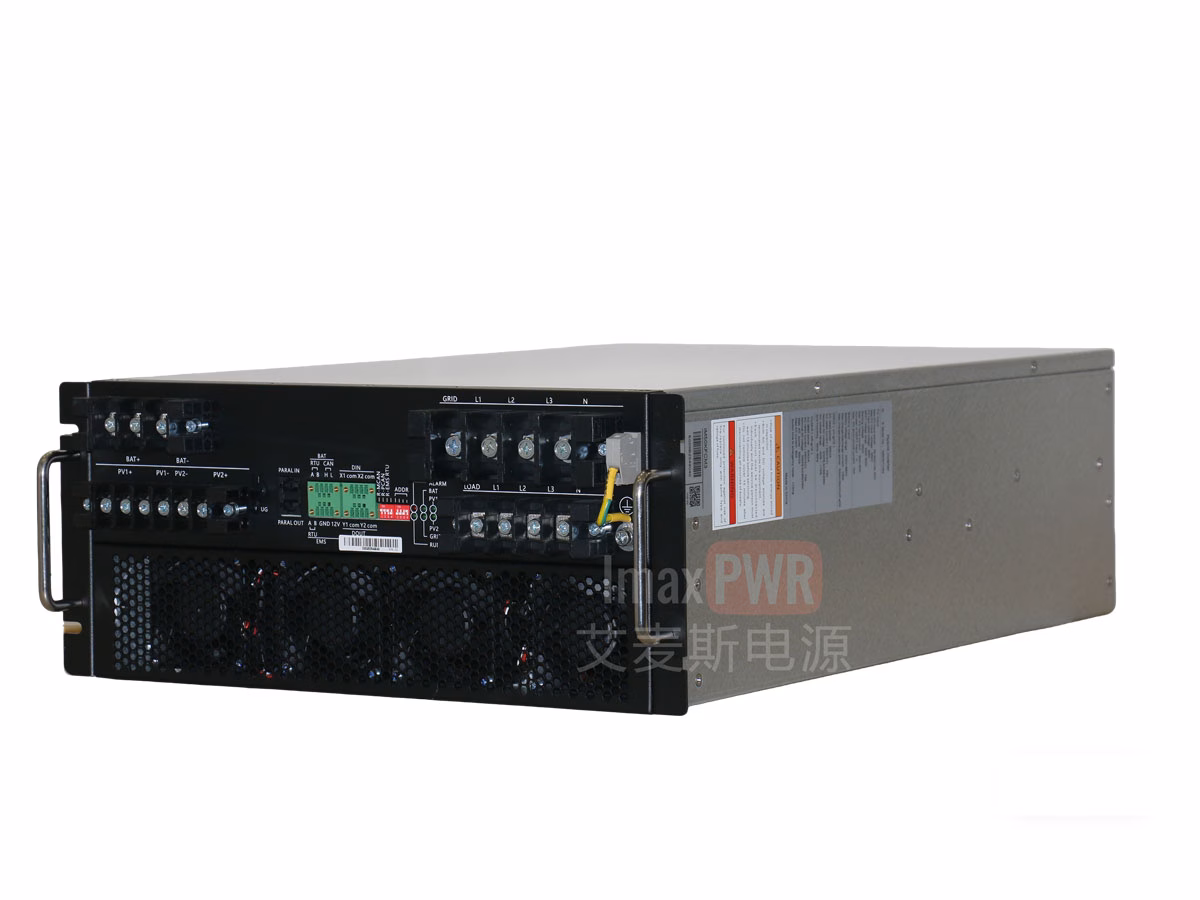

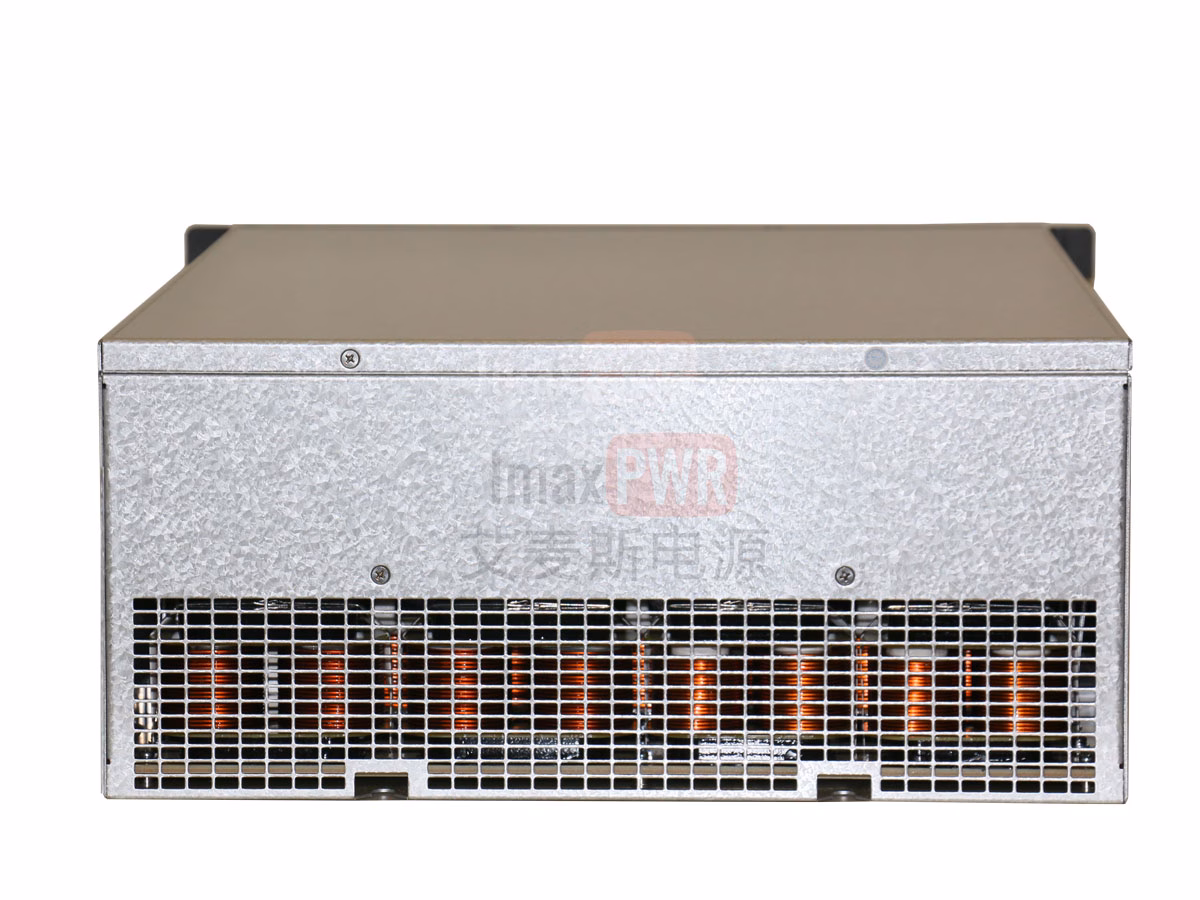

50KW hybrid energy storage inverter

Product Features:

• High efficiency and reliability:
  • Low power consumption: Standby power consumption ≤25W, no-load operating loss less than 160W;
  • High efficiency: Maximum conversion efficiency of 97.8%;
  • High protection: The core control part has an IP5X protection rating, enabling stable operation in harsh environments such as dust and high salt spray;
  • Air duct isolation design: Adopts isolated air duct design, improving product safety and reliability;
  • High overload capacity: Equipped with 150% instantaneous overload capability, enhancing system adaptability and durability;
  • Seamless switching function: Supports seamless switching between grid-connected and off-grid modes, ensuring continuity and stability of power supply.
• Functions:
  • Oil-electric hybrid mode: Supports oil-electric hybrid operation, providing flexible energy combination methods and improving energy utilization efficiency;
  • Three-phase independent grid-connection control technology: Achieves three-phase independent control, optimizing power distribution and improving system flexibility and efficiency;
  • Seamless switching: Grid-connected and off-grid seamless switching (less than 10ms);
  • Grid adaptability: Complete high-low voltage ride-through function, islanding protection, black start, and other functions;
  • Parallel operation function: The AC side supports up to 15 units operating in parallel or in off-grid mode, while the DC side also supports multi-machine parallel operation.
• Convenience:
  • Communication and monitoring: Supports multiple communication protocols and mainstream BMS protocols for convenient remote monitoring and management;
  • High maintainability: Front wiring and front maintenance;
  • Fault protection: Complete fault protection and fault recording functions;
  • Wide voltage range: Suitable for voltage inputs with various battery configurations, with strong adaptability, able to meet energy demands of different capacity requirements;
  • Better battery compatibility, higher cost-effectiveness, as low as 200V, for example, 50kW/100kWh (280AH), 60kW/120kWh (314AH).

Product Specification Parameters:
