Description

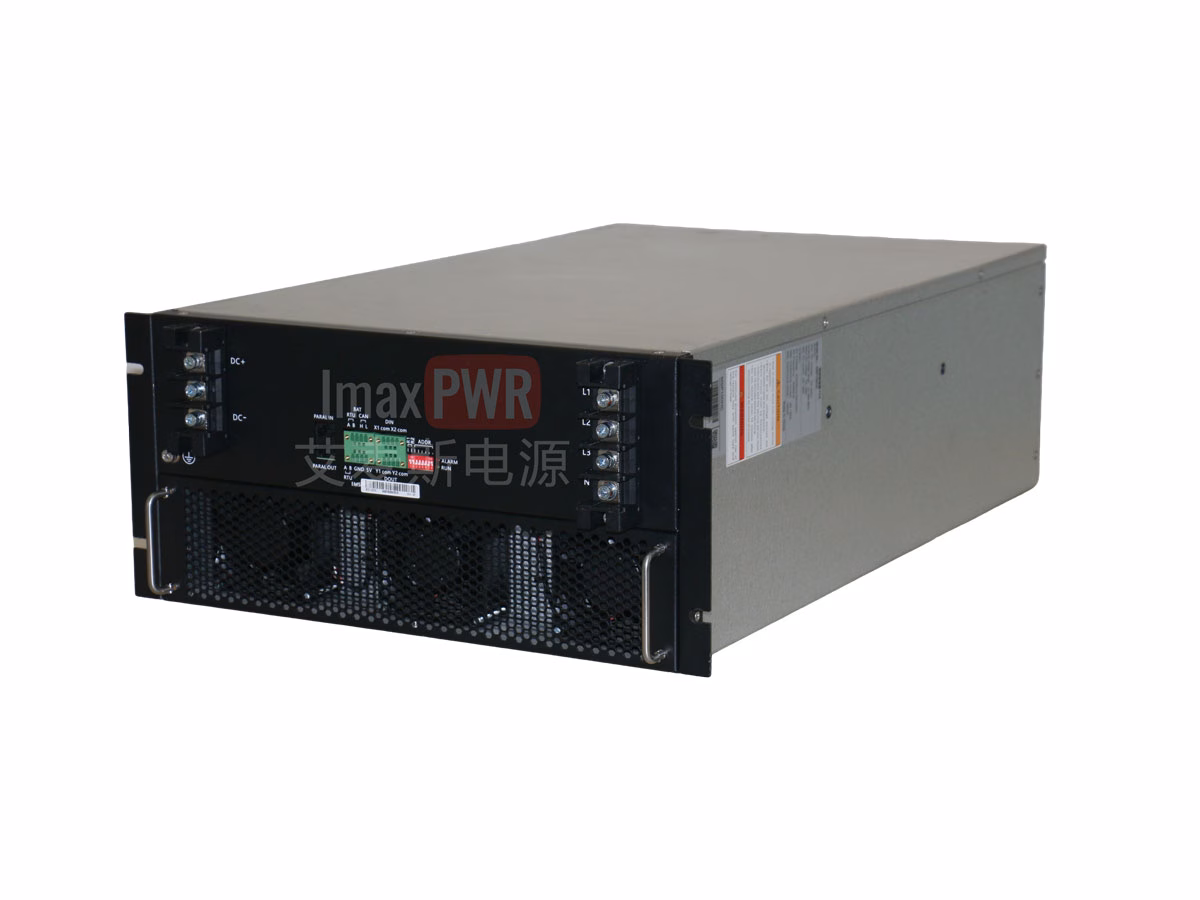

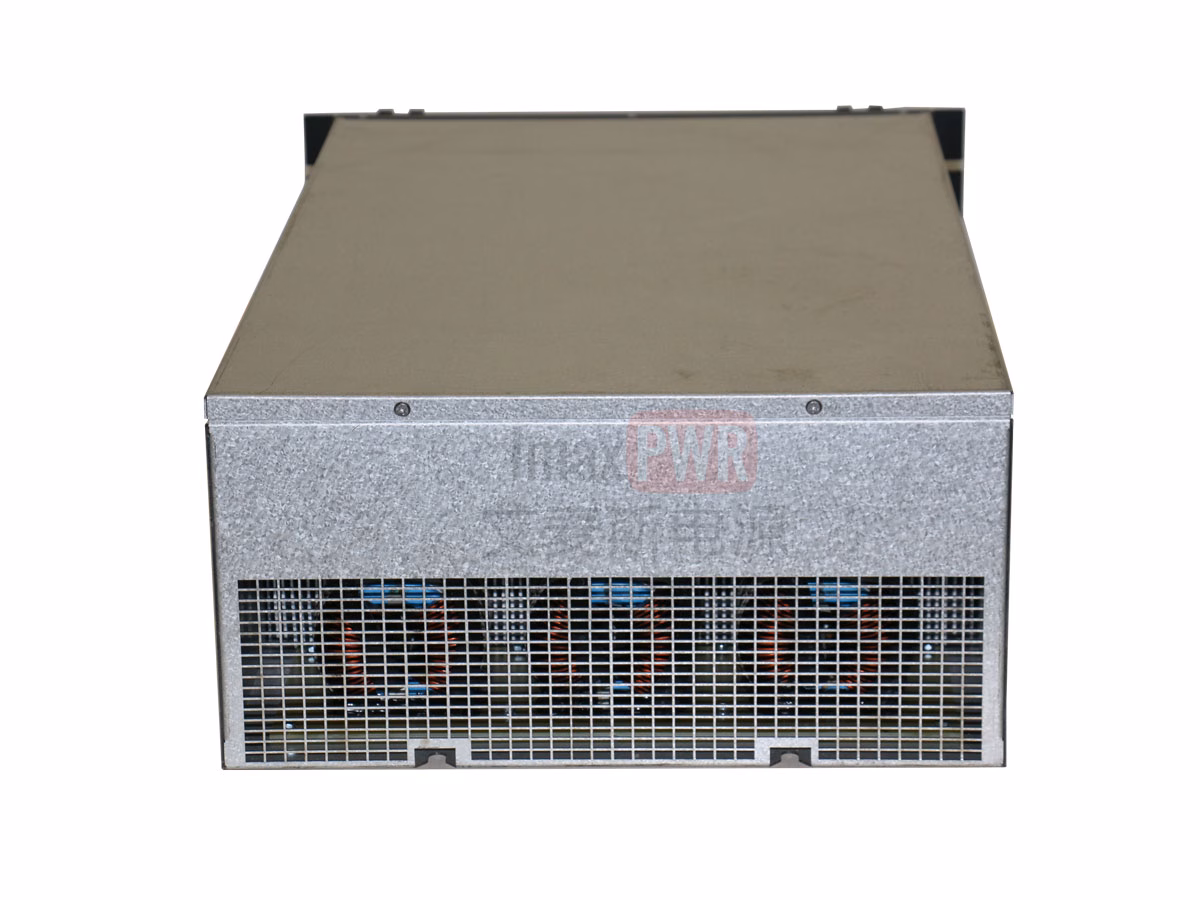

This product is a highly efficient and high-protection energy storage inverter developed for medium and large-scale energy storage microgrids. It supports parallel operation of multiple units, hybrid operation of oil engines, parallel and off-grid modes, as well as DC power dispatching and AC power dispatching.
Function Description:
- High efficiency:
- Standby power consumption ≤ 15W, no-load operating loss less than 130W.
- Charge-discharge conversion time ≤ 20ms.
- Maximum conversion efficiency of 98.7%.
- Functions:
- Compatible with 3P4L and 3P3L application scenarios.
- Supports mainstream BMS protocols.
- Supports grid-connected, off-grid, and grid-connected/off-grid hybrid operation.
- Supports functions such as high-low voltage ride-through, islanding protection, and black start.
- Single-phase 100% load capacity.
- Supports operation of up to 20 units in parallel for grid-connected/off-grid scenarios.
- Supports hybrid operation with diesel generators, with diesel generator as primary, PCS as primary, or hybrid mode.
- Supports VSG mode (for diesel-generator hybrid applications) for inertia support, load support, and voltage support operation.
Product Specification Parameters:
| Specification Parameters | MSP100HC | MSP110HS |
|---|---|---|
| DC Side | ||
| Maximum Voltage | 950V | |
| Minimum Voltage | 600V | |
| Rated Voltage Range | Grid-connected (600V-950V) / Off-grid (650V-950V) | |
| Maximum Input Current | 185A | |
| AC Side (Grid-connected) | ||
| Output Power | 110kVA@40°C 100kVA@45°C | 110kVA |
| Maximum Output Current | 152A | 160A |
| Rated Voltage | 400V/230V | |
| Rated Voltage Range | -20%~15% | |
| Frequency Range | 50Hz/47Hz~52Hz 60Hz/57Hz~62Hz | |
| Harmonic Distortion | <3% (above 30% load) | |
| Power Factor | -100%~100% (see figure below) | |
| AC Side (Off-grid) | ||
| Rated Voltage | 400V/230V | |
| Output Voltage Harmonic Distortion | <1.5% (resistive load) | |
| Imbalance | 100% | |
| Frequency Range | 50/60Hz | |
| System Parameters | ||
| Communication Interface | EMS: CAN\RS485 Battery: CAN\RS485 | |
| DIDO | 2 channels | |
| Maximum Efficiency | 98.78% | |
| Installation Method | Rack-mounted | |
| Loss | Standby <15W No-load power <130W | |
| Weight | 48kg | 52kg |
| Protection | IP5X (control cabinet sealed) | Ip65 |
| Temperature Range | -30–60°C | |
| Humidity Range | 0-100% | |
| Cooling Method | Intelligent forced air cooling | Liquid cooling |
| Altitude | 2000m (derating 90%/80% at 3000/4000m respectively) | |
| Certification | En50549, En62477, ENIEC61000; CQC | |
| Grid Support | LVRT, HVRT, SVG |
