And off-grid switch STS modules 90A, 150A, 300A /60KW, 100KW, 200KW

And off-grid switch STS modules 90A, 150A, 300A /60KW, 100KW, 200KW

STS 60/100/200kW — 60 kW, 100 kW and 200 kW STS modules with 90 A, 150 A and 300 A current ratings.

  • Rating: 60 kW at 90 A, 100 kW at 150 A, 200 kW at 300 A
  • System: three-phase five-wire (3W+N+PE) supporting unbalanced off-grid loads
  • Function: seamless on-grid and off-grid switching with PCS modules

PRODUCT DOCUMENTATION

System Selection Guide 2026View online | Download PDF
Module Selection Guide 2026View online | Download PDF
Company Profile 2026View online | Download PDF

Contact: info@imaxpwr.com | +86-13760212825 (WhatsApp)

Description

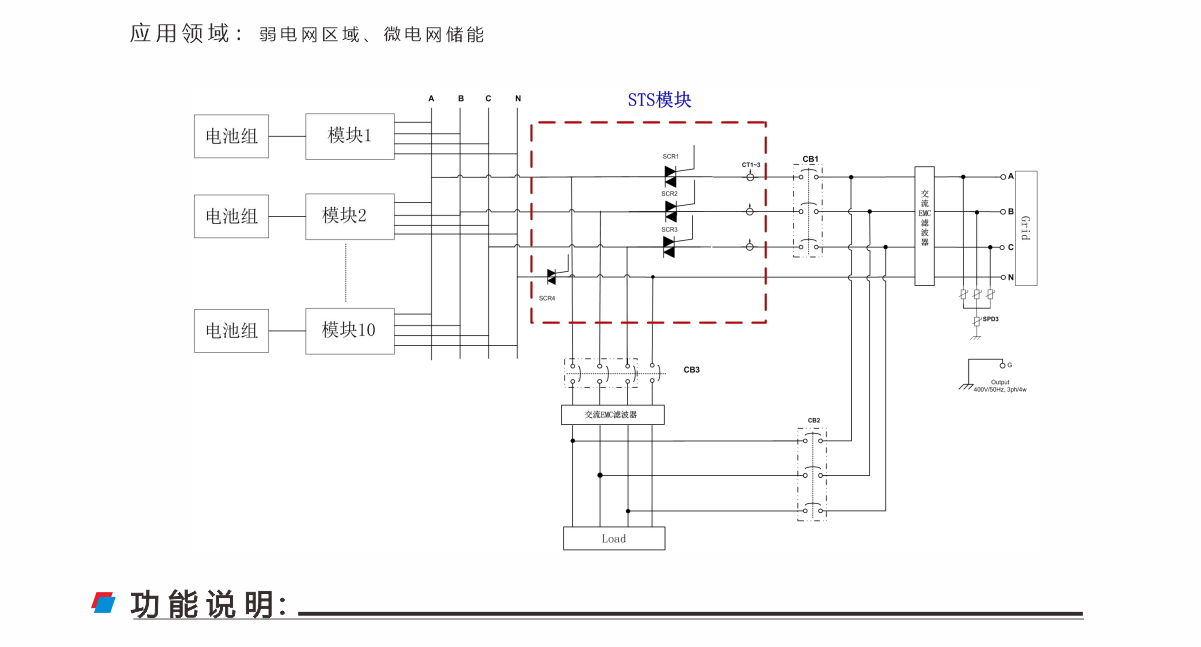

Three-phase five-wire system (3W + N + PE), supporting unbalanced off-grid loads; In combination with the PCS module, seamless on-grid and off-grid switching can be achieved, ensuring continuous power supply to important loads without interruption. Modular design makes installation and maintenance simple and convenient.

GSTS Series Product Parameters

Electrical Parameters

  • Voltage Range: 304~485Vac (applicable to GSTS – 60K, GSTS – 100K, GSTS – 200K)
  • Frequency: 45 – 55Hz (applicable to GSTS – 60K, GSTS – 100K, GSTS – 200K)
  • Rated Current
    • GSTS – 60K: 90A
    • GSTS – 100K: 150A
    • GSTS – 200K: 300A
  • Rated Power
    • GSTS – 60K: 60kW
    • GSTS – 100K: 100kW
    • GSTS – 200K: 200kW
  • Voltage System: Three-phase four-wire + PE (applicable to GSTS – 60K, GSTS – 100K, GSTS – 200K)
  • Switching Time: ≤20ms (applicable to GSTS – 60K, GSTS – 100K, GSTS – 200K)

Protection Functions

  • Over-voltage, over-current, and over-temperature protection: All equipped (applicable to GSTS – 60K, GSTS – 100K, GSTS – 200K)
  • Short-circuit and reverse power flow protection: All equipped (applicable to GSTS – 60K, GSTS – 100K, GSTS – 200K)

Other Parameters

  • Dimensions (Width * Height * Depth)
    • GSTS – 60K: 44287500mm
    • GSTS – 100K: 442130520mm
    • GSTS – 200K: 442130520mm
  • Weight
    • GSTS – 60K: 11kg
    • GSTS – 100K: 18kg
    • GSTS – 200K: 21kg
