Description

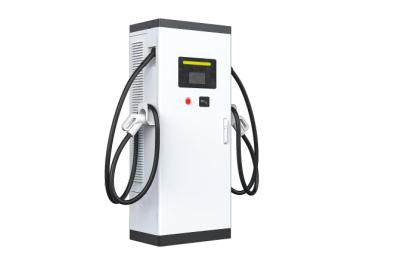

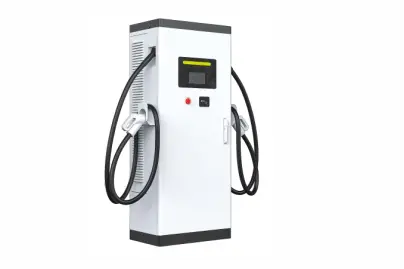

This DC charging pile is mainly composed of a human-machine interaction unit, a control unit, a metering unit and a safety protection unit. The high-integration main control board features a patented three-in-one system for dual-channel insulation detection, module voltage detection, and battery voltage detection. It has outstanding low-temperature characteristics and supports an application environment of -40℃.
Product Overview
The bidirectional AC/DC charging station is primarily designed to facilitate two-way interaction between electric vehicles (EVs) and the power grid, utilizing EV battery storage as a supplementary resource for the grid and renewable energy. By leveraging peak-valley electricity pricing differentials, it enables charging during low-cost off-peak hours and discharging during peak hours, allowing vehicle owners to profit from price arbitrage. Additionally, it enhances load flexibility, facilitates clean energy integration, and supports grid load regulation. This product integrates charging/discharging units, charging/discharging interfaces, human-machine interfaces (HMI), communication modules, and billing systems into a unified structure. Featuring a modular design, it offers advantages such as simplified installation, commissioning, and maintenance.
Product Composition
The bidirectional AC/DC charging station consists of four core components: the HMI unit, control unit, metering unit, and safety protection unit.
- HMI Unit: Includes the charging post, LCD touchscreen, card reader module, and charging connector.
- Control Unit: Comprises the main controller, auxiliary modules, and module management system.
- Metering Unit: Equipped with an energy meter for precise measurement.
- Safety Protection Unit: Incorporates emergency stop switches, overcurrent/short-circuit protection modules, insulation monitoring, and other protective mechanisms.
Product Advantages
- Supports four charging modes: time-based, energy-based, cost-based, and automatic.
- Features an intuitive HMI with a full-color LCD touchscreen.
- Real-time display of charging parameters (mode, duration, energy consumption, billing data, etc.) during operation.
- Advanced module management for precise control of output voltage and current.
- Comprehensive protection functions: overcurrent, short-circuit, overvoltage, undervoltage, emergency stop, and insulation detection.
- Robust safety protocols: charging interface status monitoring, control guidance, and fail-safe mechanisms to ensure reliable operation.
- Integrated communication capabilities for remote monitoring of operational parameters, fault diagnostics, charging metrics, and command execution.
- Equipped with a DC energy meter for accurate power measurement.
- Supports multiple card-based authentication methods (RFID, IC cards, etc.).
- Compliant with advanced technical standards, ensuring stability, reliability, and eco-friendliness.
- Weatherproof design: Printed circuit boards (PCBs) and connectors are treated for moisture, mold, and salt spray resistance, enabling outdoor operation in harsh environments.
- Anti-corrosion measures: Double-layer rust protection applied to iron enclosures and exposed structural components.
- Flame-retardant housing with reinforced construction to prevent accidental contact with live parts.
- Customizable exterior branding and labeling per user specifications.
Product Features:
- Connect to charging pile APP: ● (Connect to charging pile app)
- Search and reserve via mobile phone: ● (Search and reserve via mobile phone)
- Charging monitoring: ● (Charging monitoring)
- Dedicated IC card payment: ● (Dedicated IC card payment)
- Mobile APP payment: ● (Mobile app payment)
- Connect to the Internet: ● (Connect to the Internet)
- Enable charging pile sharing: ● (Enable charging pile sharing)
- Improve utilization rate: ● (Improve utilization rate)
- Operate offline: ● (Operate offline)
- Fast charging intelligent free platform: ● (Fast charging intelligent free platform)
● Product Features:
- It has four charging modes: timed, by电量（改为amount ）[1]、by amount、by sum and automatic.
- It features human-computer interaction and uses a color LCD touch screen.
- During charging, it displays the current charging mode, time,电量（改为amount ）[1]、amount, and billing information, etc.
- It has module management functions to control the output voltage and current of the modules.
- It is equipped with comprehensive protection functions such as overcurrent, short circuit, overvoltage, and undervoltage; it also has safety protection functions such as emergency stop switches and insulation detection.
- It has comprehensive safety protection functions, including connection status judgment of the charging interface and control guidance, to ensure the safe and reliable operation of the charging pile.
- It provides comprehensive communication functions. It can upload the operating status parameters of the DC charging pile as needed, monitor fault types, charging amounts, etc., and accept remote control commands.
- It is configured with a DC electricity meter for DC power measurement.
- It has a card swiping interface and supports common card swiping methods such as RFID cards and IC cards.
- It meets advanced technical standards, with stable performance, high reliability, and compliance with environmental protection and energy-saving requirements.
- The internal circuits of the DC charging pile, such as the printed circuit boards and connectors, are treated for moisture resistance, mildew resistance, and salt spray resistance to ensure normal operation in outdoor humid and salty environments.
- It has rust and oxidation protection functions: the iron shell of the DC charging pile and the exposed iron brackets and parts adopt double-layer anti-rust measures.
- It uses flame-retardant shell materials, with a sturdy shell structure to prevent users from easily touching live parts.
- The design and appearance logos can be customized according to user requirements.
● Product Specification Parameters:
| Specification Parameter | IMCDD-1000/240-C2-F |
|---|---|
| Floor-standing Dimensions | 700mm640mm1700mm |
| Relative Humidity | 5% ~ 95% |
| Operating Temperature | -20°C ~ +50°C |
| Storage Temperature | -40°C ~ +70°C |
| Input Voltage | DC200~850V (full power output when input exceeds 550V) |
| Maximum Output Power | 240KW |
| Output Voltage | DC200V~1000V |
| Maximum Output Current | 500A (maximum 250A per gun) |
| Cooling Method | Air Cooling |
| Communication Interface | CAN communication interface, wireless communication interface (optional) |
| Communication Method | Ethernet, 2G/3G/4G (optional) |
| Billing Interface | Supports RFID cards, IC cards, CPU cards |
| Ambient Temperature | ≤90% non-condensing |
| Charging Interface | 2 |
| IP Protection Rating | IP54 |
| Installation Method | Floor-standing |
| Floor-standing Weight | ≤250kg |
