Description

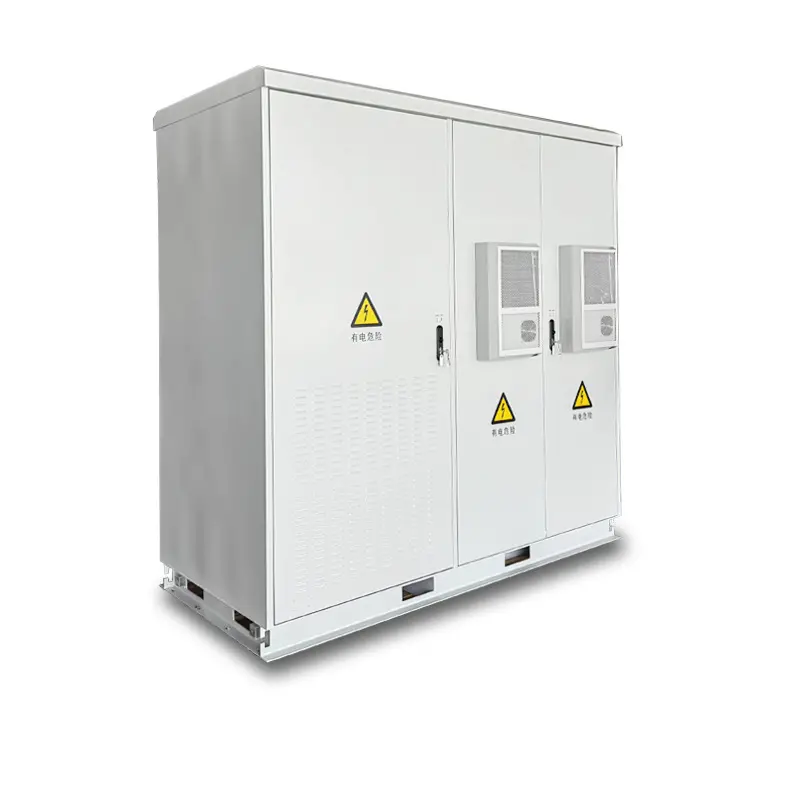

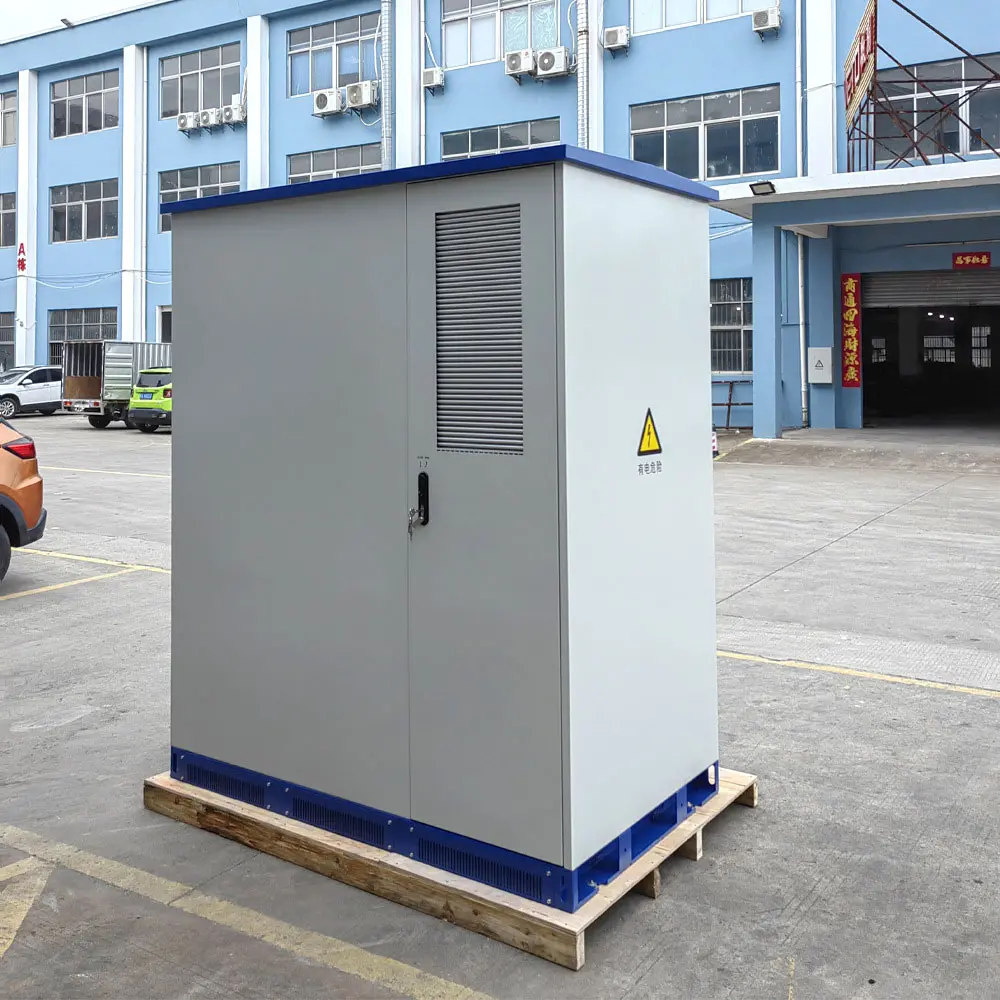

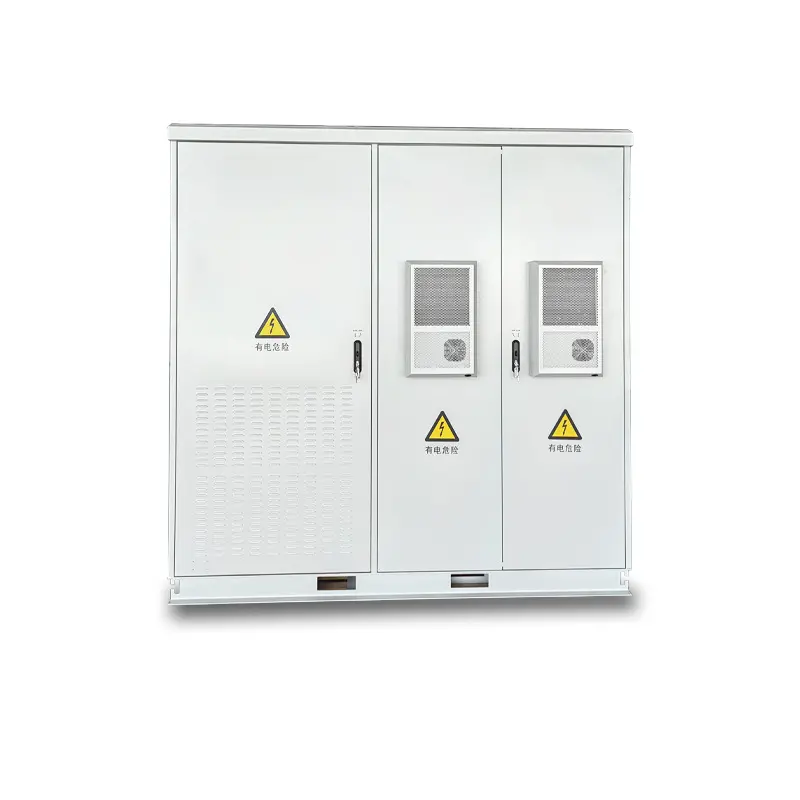

The 215KWh industrial and commercial energy storage cabinet of Aimes Power Supply is composed of a sheet metal cabinet body, internal battery rack, electrical installation board, 3000W AC air conditioner for the battery compartment, cooling fan for the electrical compartment, LED lighting lamp, fire protection device, etc. The whole machine is rainproof, dustproof and corrosion-resistant.
| Project | Energy Storage Iron-Lithium Battery Cabinet (33U) |
|---|---|
| Complete unit model | Imax-170006500850 |
| Cabinet dimensions (height x width x depth) | External dimensions: 1700x650x850mm Internal dimensions: 1550x600x800mm |
| Cabinet material | 1.2mm thick cold-rolled steel plate |
| Thermal insulation material and thickness | 20mm thick PEF thermal insulation cotton |
| Maintenance method | Front and rear doors |
| Installation method | Floor-mounted |
| Internal rack | 19-inch rack (L-type bracket/tray to be selected according to actual needs) |
| Protection grade | IP55 |
| Operating temperature | -40°C ~ +55°C |
| Cooling method | Compressor air conditioning, cooling capacity: 500W, DC48V / 600W, AC220V |

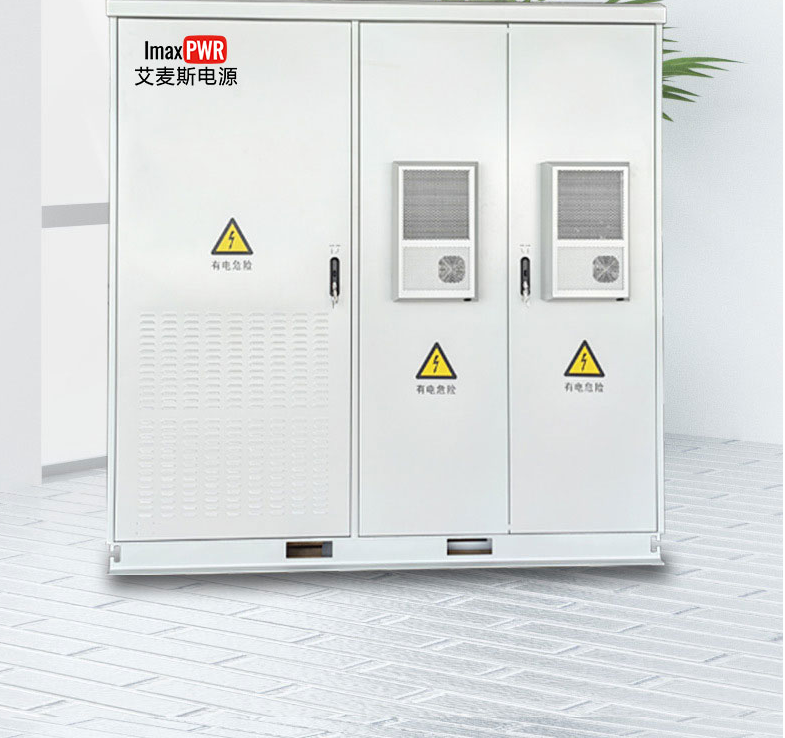

I. Product Overview

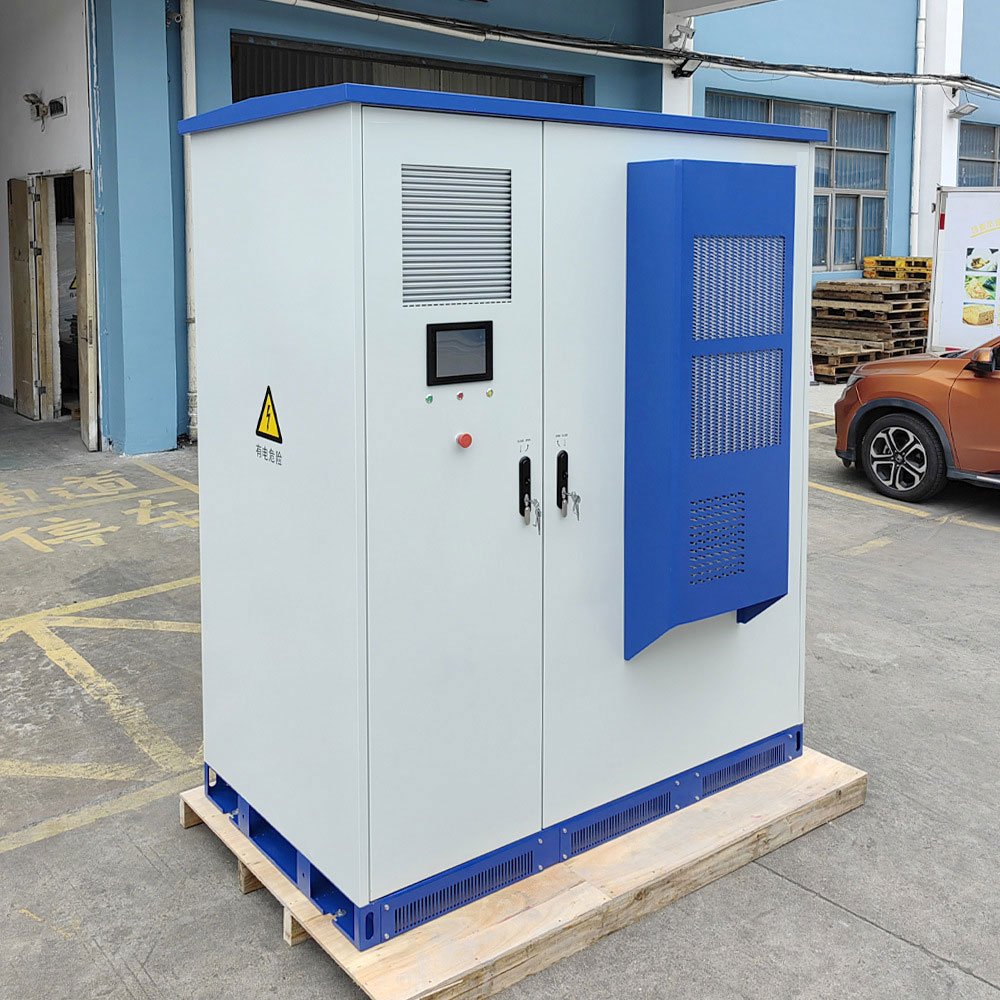

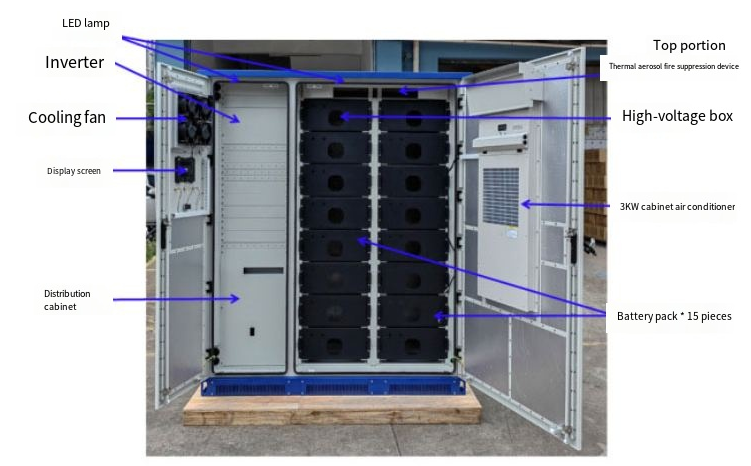

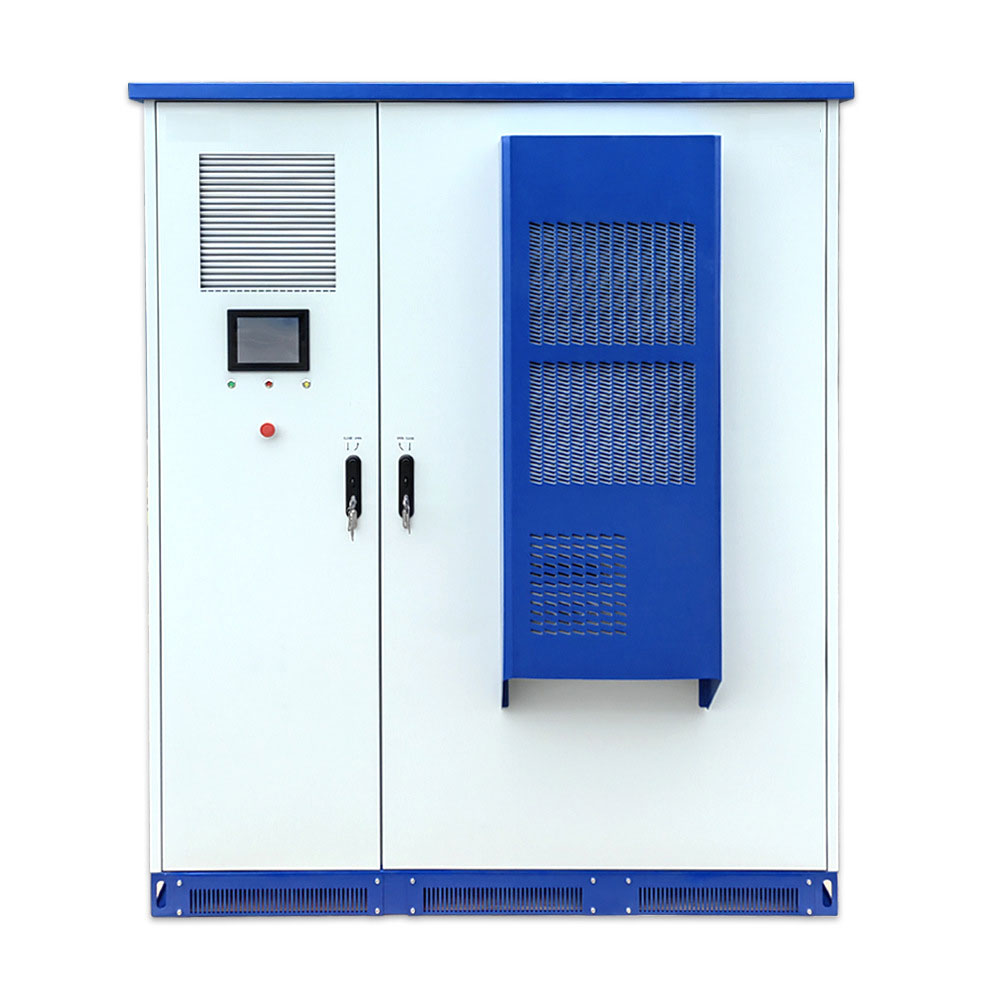

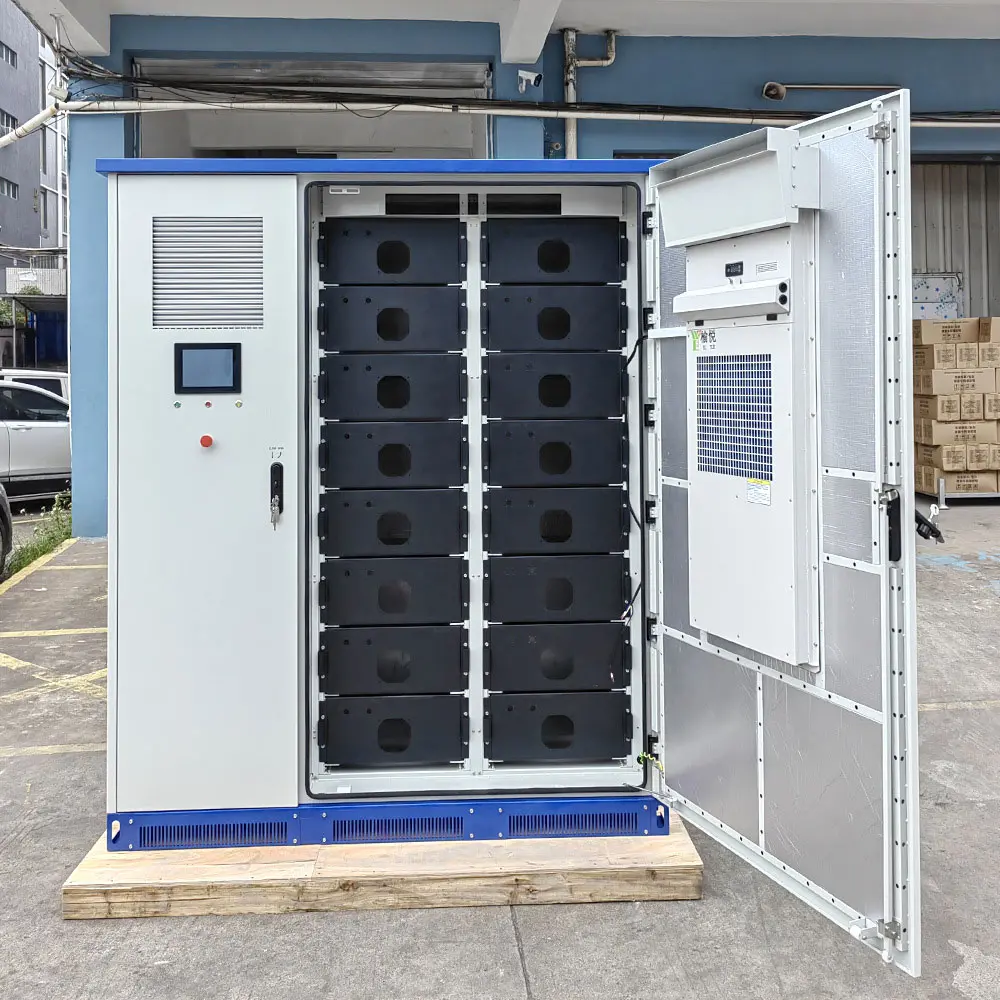

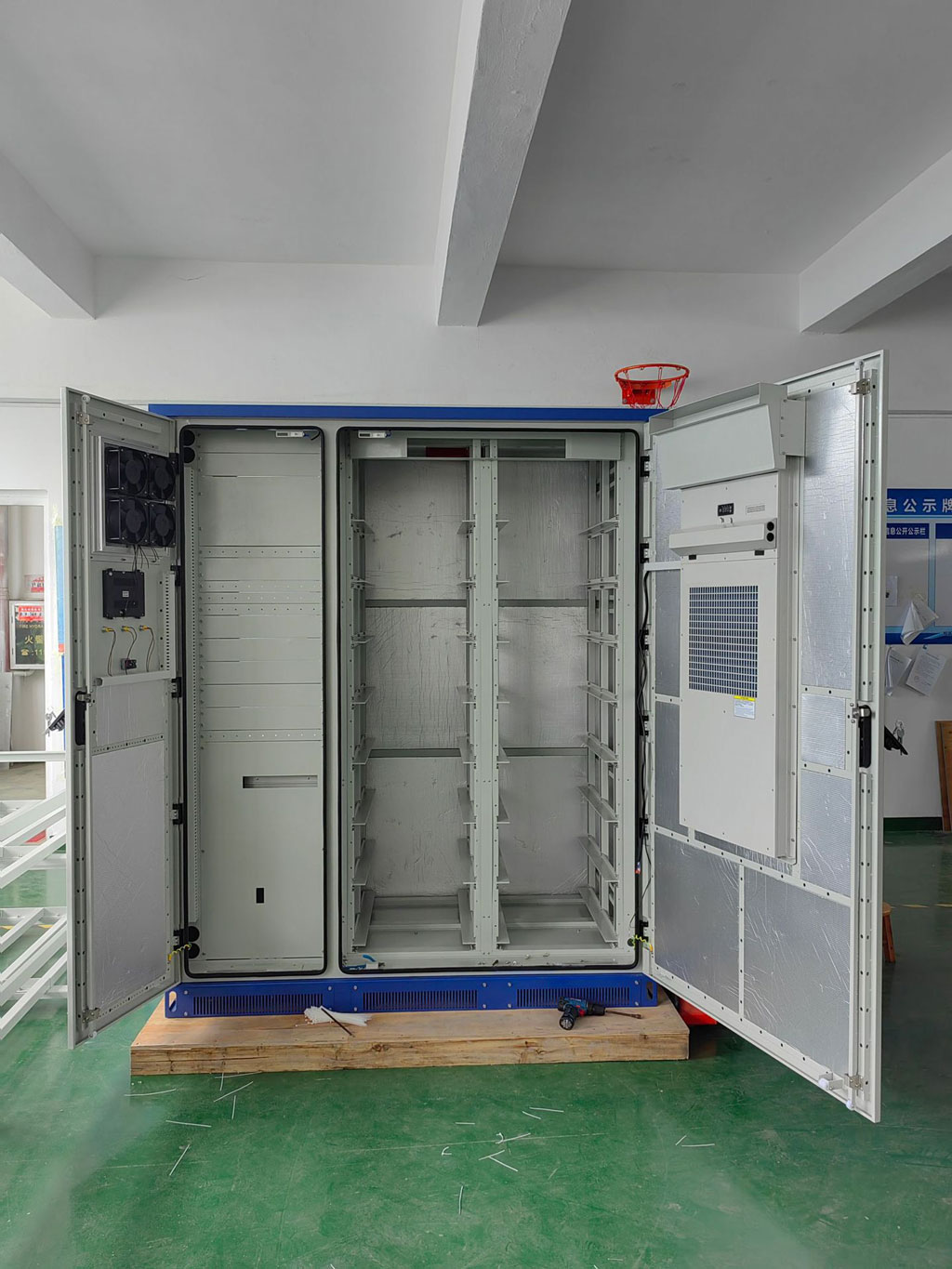

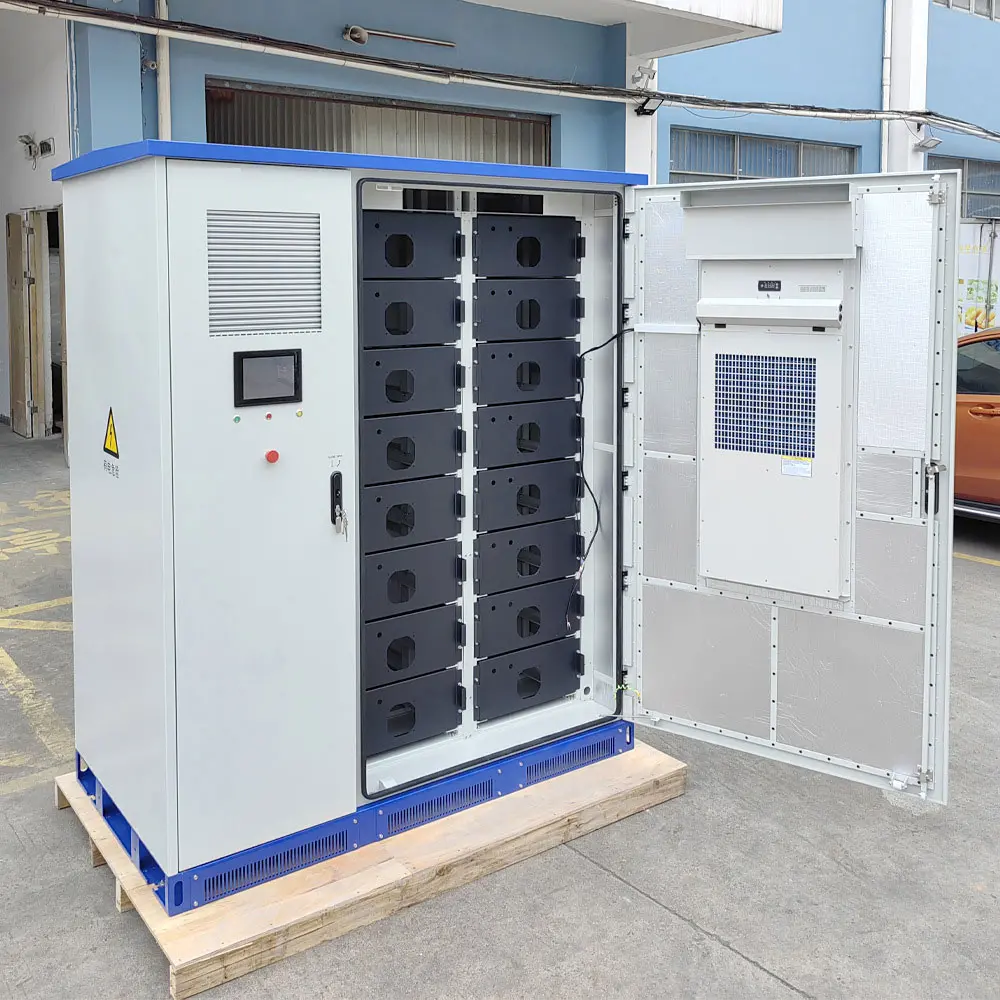

The 215KWh commercial energy storage cabinet from Amais is composed of a sheet metal cabinet body, an internal battery rack, an electrical installation panel, a 3000W AC air conditioner for the battery compartment, cooling fans for the electrical compartment, LED lighting lamps, fire protection devices, etc. The entire unit is rain-proof, dust-proof, and corrosion-resistant.
II. Technical Parameters
| Project | Category | Technical Indicators |
|---|---|---|
| Cabinet | Size | External dimensions HWD: 2265mm1850mm1050mm Internal dimensions HWD: 2060mm1650mm1000mm |
| Layout | 1 unit with 2 compartments (battery compartment + electrical compartment) | |
| Installation Method | Fixed installation on a floor base | |
| Doors | Single door in front of the battery compartment, double doors in front of the electrical compartment | |
| Material | Cold-rolled steel plate (frame, door panel 1.5mm thick; battery bracket 2.5mm thick; load-bearing support 3.0mm thick; base 3.0mm thick) | |
| Insulation Layer | 20mm thick PEF thermal insulation cotton | |
| Overall Structure | Welding + assembly | |
| Protection Grade | IP55 | |
| Temperature Control | Refrigeration | Battery compartment: 3000W AC air conditioner Electrical compartment: 4 17251 axial flow fans |
| Power Supply | AC220V | |
| Lighting | LED Lights | AC220V LED*3 |
| Fire Protection | Hot-melt Adhesive Fire Extinguishing Device | 2 hot-melt adhesive fire extinguishing devices meeting 3 cubic meters + smoke detectors |
| Temperature | Temperature | Operating temperature range: -40°C ~ +55°C Storage temperature range: -50°C ~ +70°C Transportation temperature range: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 95% |
| Pressure | Atmospheric Pressure | 62kpa ~ 101kpa (approximately equivalent to altitude 0m ~ 5000m) |
| Radiation Intensity | Solar Radiation Intensity | 1120×(1±5%)W/m² |
