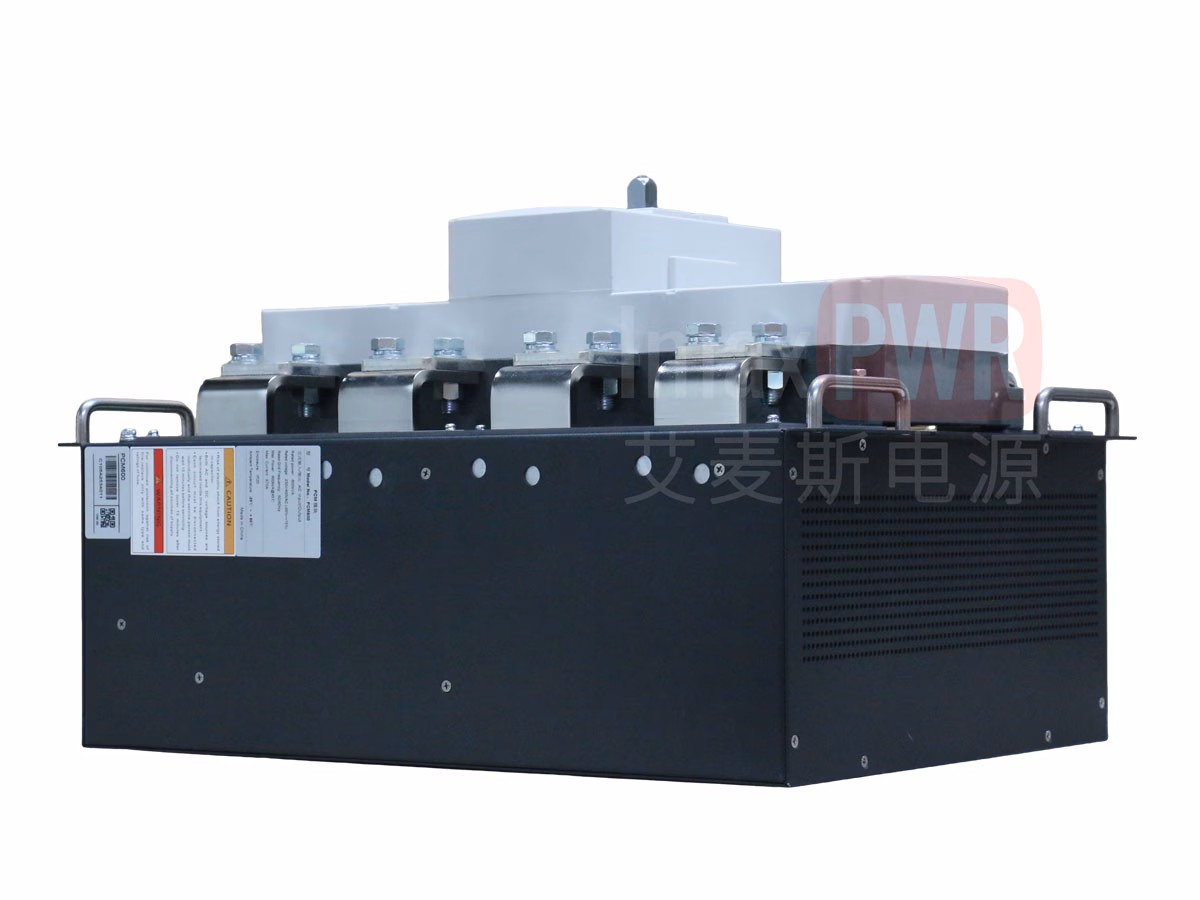

Imax Power MSPCM Series | Core Technical Specifications
Engineered for Global Energy Storage & STS Switching Applications
I. Core Power Parameters
Rated Power: 170KVA
Total Power Control: Advanced total power control system with panoramic detection enables precise power regulation. Adapts to STS-like switching scenarios, optimizes system-level management, and boosts energy utilization efficiency.
II. Core Technical Highlights
Seamless Switching Engine
- Advanced control algorithms enable <10ms grid/off-grid switching
- Meets international standards and matches STS switching performance
- Ensures microgrid stability and prevents load equipment damage from switching interruptions
Panoramic Detection System
- High-precision detection of grid/load voltage, current, and power
- Delivers real-time, reliable data for precise control and energy dispatching
- Builds a solid foundation for consistent system operation
Multi-mode Energy Routing
- Built-in anti-reverse current, self-consumption, and peak shaving/valley filling strategies
- Enables intelligent energy dispatching and improves STS-like switching equipment efficiency
- Adapts to diverse energy utilization scenarios
Transient Power Response
- Strong anti-impact capability and transient power support
- Perfectly adapts to diesel-storage, oil generator hybrid systems
- Rapidly responds to load power fluctuations, reducing voltage instability
Flexible System Expansion
- Supports parallel operation of multiple units
- Scalable capacity based on load requirements
- Ideal for medium/large-scale energy storage and STS-like switching scenarios
III. Functional Configuration Parameters
Energy Management Mode
- Multi-mode energy routing enables anti-reverse current, self-consumption, peak shaving/valley filling
- Intelligently regulates energy flow to maximize utilization efficiency
Multi-machine Parallel Connection
- Multiple devices can be paralleled for flexible system expansion
- Adjust system scale dynamically based on actual load demands
Oil Generator Hybrid Mode
- Compatible with oil generator hybrid operation
- Enhances power supply reliability and endurance
- Ideal for off-grid or unstable grid STS-like switching scenarios
Bypass Switch
- Built-in bypass switch for main/bypass power supply switching
- Facilitates equipment maintenance without power interruption
- Improves system adaptability for STS-like switching applications
IV. Bus Parameters
AC Bus
- Optimized for AC load power supply with high transmission efficiency
- Meets power supply requirements of STS-like switching equipment
- Supports stable operation of core technical functions
DC Bus
- Compatible with DC load power supply
- Improves system compatibility and stability
- Provides flexible support for multi-scenario applications
V. Application Value
High Reliability
- 10ms seamless switching ensures ultra-fast grid/off-grid transition
- Uninterrupted power supply prevents equipment damage and business disruption
- Complies with global industrial reliability standards
High Adaptability
- Integrated bypass switch + oil generator hybrid compatibility
- Flexible expansion capability for diverse scenarios (PV-storage-charging, mobile energy storage, off-grid)
- Performs reliably under complex operating conditions
High Controllability
- Panoramic detection delivers accurate real-time data
- Total power control + multi-mode energy routing enable system-level optimization
- Precise regulation of energy distribution and equipment operation
Imax Power MS.PCM Series – Technical Specifications
1. Grid / Load Parameters
| Parameter | MSPCM170 | MSPCM330 | MSPCM600 |
|---|---|---|---|
| Rated Power | 170kVA | 330kVA | 600kVA |
| AC Voltage Range | 400V/230V (-20% ~ +15%) | 400V/230V (-20% ~ +15%) | 400V/230V (-20% ~ +15%) |
| Frequency Range | 50Hz/60Hz (±5Hz) | 50Hz/60Hz (±5Hz) | 50Hz/60Hz (±5Hz) |
| Max AC Current | 250A | 500A | 870A |
| Manual Bypass Capacity | 250A | 500A | 1000A |
| Dimensions (W×L×H) | 331×268×175mm | 391×265×339mm | 591×375×400mm |
| Weight | 10kg | 18kg | 59kg |
2. Core System Parameters (Universal for All Models)
| Parameter | Details |
|---|---|
| Overload Capacity | Supports 400/230V non-standard voltage operation (-20% ~ +15%) |
| SOC Balancing | Available in off-grid and grid-tied modes |
| Key Functions | Self-consumption, peak shaving, load following, anti-backflow (30ms response) |
| Max Parallel Units | Up to 3 units can operate in parallel |
| Communication Interfaces | CAN, RS485×2, DI:2, DO:2 |
| Communication Protocols | MODBUS RTU, CAN2.0B, cloud platform |
| Grid/Off-grid Switching | Grid→Off-grid: 0ms (active), 10ms (passive); Off-grid→Grid: 0ms |
| Operating Temperature | -40°C ~ 65°C |
| Humidity Range | 5% ~ 95% (non-condensing) |
| Cooling Method | Intelligent forced air cooling |
| Altitude Limit | 4000m (derated operation above 2000m) |
| Protection Features | Over-temperature, over-current, over-voltage, short-circuit to ground protection |
| Power Supply | Self-powered; supports external UPS input |
| Switching Time | <10ms |
| Certification | CE certified |
