Description
Liquid-Cooled Energy Storage Container
Type
Liquid-cooled energy storage container.
Application Solutions
- Off-grid Solutions: Provide stable power in remote areas without grid access.
- Charging Station Solutions: Support the construction of electric vehicle charging infrastructure.
- Industrial and Commercial Solutions: Meet the energy demands of industrial and commercial users, reducing electricity costs.
- Residential Community Solutions: Ensure reliable power supply for residential communities, enhancing living comfort.
- Frequency Regulation Solutions: Help stabilize the power grid frequency, improving power quality.
- New Energy Power Station Solutions: Integrate with new energy sources like wind and solar for efficient power generation.
Benefits
- Enhance Grid Reliability and Flexibility: Ensure a stable power supply and adapt to varying loads.
- Cost Savings: Reduce energy costs through efficient energy management.
- Environmental Benefits: Promote clean energy use, reducing carbon emissions.
- Energy Independence: Decrease reliance on traditional energy sources.
- Improve Power Quality: Provide stable and high-quality electricity.
- Scalability and Flexibility: Easily expand or adjust the system according to needs.
- Support Electrification: Facilitate the transition to electric-powered devices and transportation.
Hardware
- Battery Pack: Store electrical energy for later use.
- BMS (Battery Management System): Monitor and manage battery performance and safety.
- High-Voltage Box: Distribute high-voltage power within the system.
- Power Distribution Box: Allocate electrical power to different components.
- Fire Protection System: Ensure safety by preventing and controlling fires.
- EMS Controller: Manage and optimize energy flow in the system.
- Container: House all the components, providing protection and portability.
Software
- Battery Management System Software: Control and monitor battery status in real-time.
- Energy Management System: Optimize energy usage and distribution.
Cloud Platform
Imaxpwr Cloud: Enable remote monitoring and management of the energy storage system.
Parameter Table

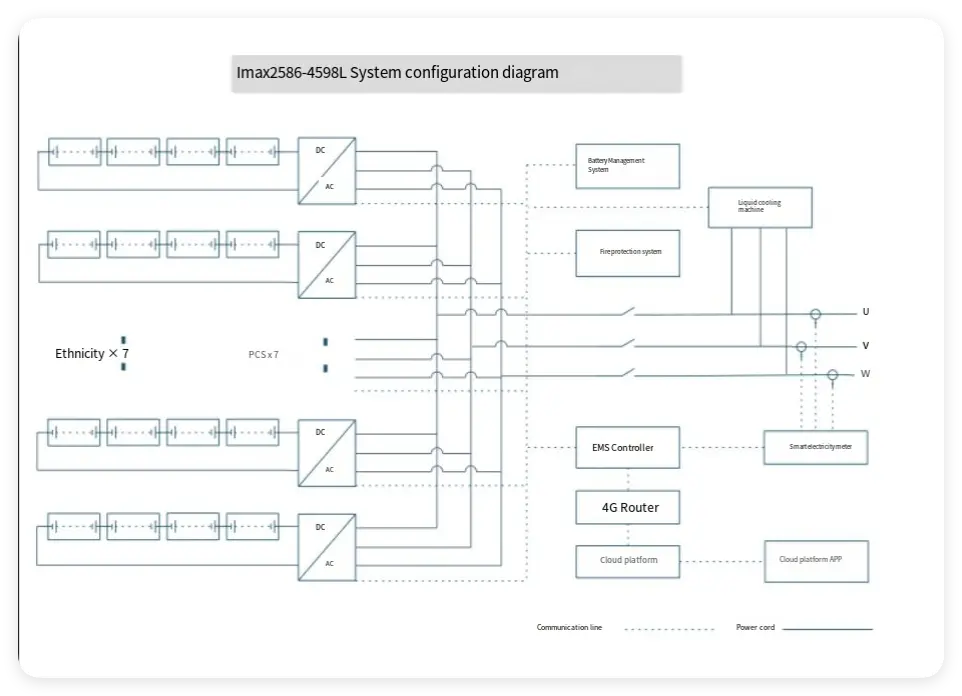

Imax2586-4598L Energy Storage Container Parameter Table.
Technical Parameters
Battery Side
- Rated Battery Side Voltage: 1331.2VDC
- Cell Type: Lithium iron phosphate 3.2V/314Ah
- Battery Pack Configuration: 1P104S/104.4992kWh
- Battery System Configuration: 11P416S
- Battery Capacity: 4597.9648kWh
- Battery Operating Voltage Range: 1164.8~1497.6VDC
- Max Charge/Discharge Current: 1727A(0.5C)
- Battery Circuit Breaker: Already integrated
- Battery Cooling Method: Liquid cooling
General Parameters
- Appearance Dimensions – Width*Depth*Height: 6058*2438*2896mm
- Charge/Discharge Efficiency: 0.5C
- Recommended Discharge Depth: 95%
- System Cycle Times: 6000
- Protection Grade: IP55
- System Efficiency: ~91% (excluding auxiliary equipment energy consumption)
- Coolant: 50% ethylene glycol + 50% water
- Fire Protection System: Gas sol
- Operating Outdoor Temperature: -30 ~ 60°C (>45°C衰减 – >45°C attenuation)
- Operating Environment Relative Humidity Range: 0 ~ 95%
- Operating Environment Altitude: <2000m
- Cabinet Corrosion Protection Grade: C3 (C4/C5 optional)
- Weight: ~40 Tons
- SPD: DC Type II/AC Type II
- Installation Method: Crane
- Expandability: Cabinets can be connected in parallel for expansion
Monitoring System
- Communication Method: RS485/Ethernet
- Communication Protocol: MODBUS-RTU/MODBUS-TCP
- Remote Control Platform: Imaxpwr Cloud
