Description
BIDC1K0100 is a DC charging module developed to meet the application requirements of DC power supply for electric vehicle charging piles. This module features a wide constant power range, high efficiency, high power density, minimal electromagnetic radiation and interference, and high reliability. BIDC1K0100 features DC input and DC output, integrates MPPT function, and is widely used in integrated photovoltaic storage and charging stations.

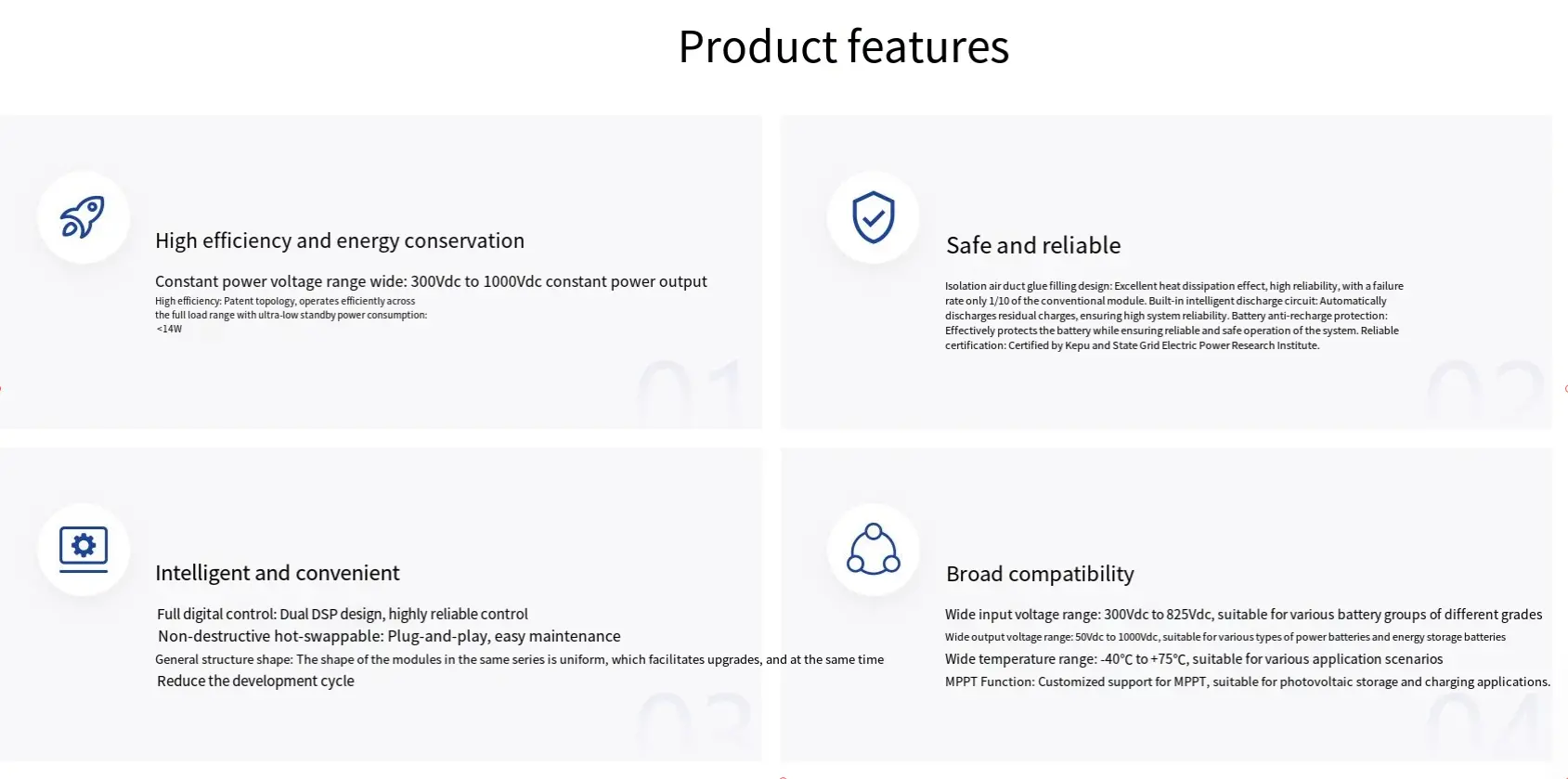

Product Features
High Efficiency and Energy Saving
Wide constant power voltage range: 300Vdc~1000Vdc constant power output
High efficiency: Patented topology, efficient operation across the full load range
Ultra-low standby power consumption: < 14W
Safe and Reliable
Isolated air duct potting design: Good heat dissipation, high reliability, with a failure rate only 1/10 of that of conventional modules
Built-in intelligent discharge circuit: Automatically discharges residual charge, ensuring high system reliability
Battery anti-reverse charging: Effectively protects the battery while ensuring safe and reliable system operation
Reliability certification: Certified by China National Quality Supervision and Testing Center for Renewable Energy Sources (CQST) and China Electric Power Research Institute
Intelligent and Convenient
Fully digital control: Dual DSP design, highly reliable control
Non-destructive hot-swapping: Plug-and-play, easy maintenance
Universal structural design: The external structure of modules in the same series is unified, facilitating upgrades and saving development cycles
Wide Compatibility
Wide input voltage range: 300Vdc ~ 825Vdc, suitable for various battery packs
Wide output voltage range: 50Vdc~1000Vdc, compatible with various power batteries and energy storage batteries
Wide temperature range: -40℃~ +75℃, suitable for various application scenarios
MPPT function: Non-standard support for MPPT, applicable to photovoltaic energy storage application scenarios
Application Scenarios
Energy storage charging pile
Mobile charging vehicle
Photovoltaic energy storage equipment
Repurposing of retired batteries
Parameters
Basic Parameters
Model: BIDC1K0100
Input Voltage Range: 300Vdc~825Vdc
Output Voltage Range: 50Vdc~1000Vdc, with voltage adjustment step of 0.1Vdc
Constant Power Output Voltage Range: 300Vdc~1000Vdc
Output Power: 30kW
Maximum Output Current: 100A
Dimensions: 110mm (height) × 385mm (width) × 390mm (depth) (excluding handles and protruding parts of terminals)
DC Input
Rated Input Voltage: 700Vdc
Input Voltage Range: 300Vdc~825Vdc
Maximum Input Current: 50A
Efficiency (full load): >95.5%
DC Output
Voltage Stability Accuracy: < ±0.5%
Current Stability Accuracy: ≤ ±1% (within 20% – 100% of rated output load range)
Ripple: Unbalance < ±5%
Output Current Limiting: 0.2~100A continuously adjustable
Output Current: 0~100A
Constant Power Output Voltage Range: 300Vdc~1000Vdc
Voltage Range: 50Vdc~1000Vdc, with voltage adjustment step of 0.1Vdc
Output Power: 30kW
Working Environment
Relative Humidity: ≤95%RH, non-condensing
Altitude: For altitudes above 2000m, derating should be considered
Cooling Method: Forced air cooling
Operating Temperature: -40°C ~ +75°C, derating used above +55°C
Other Parameters
Dimensions: 110mm (height) × 385mm (width) × 390mm (depth) (excluding handles and protruding parts of terminals)
Weight: ≤22.5kg
Communication Method: CAN bus
Mean Time Between Failures (MTBF): >500,000 hours
Compliance Standards: GB/T18487, NB/T33001, NB/T33008
