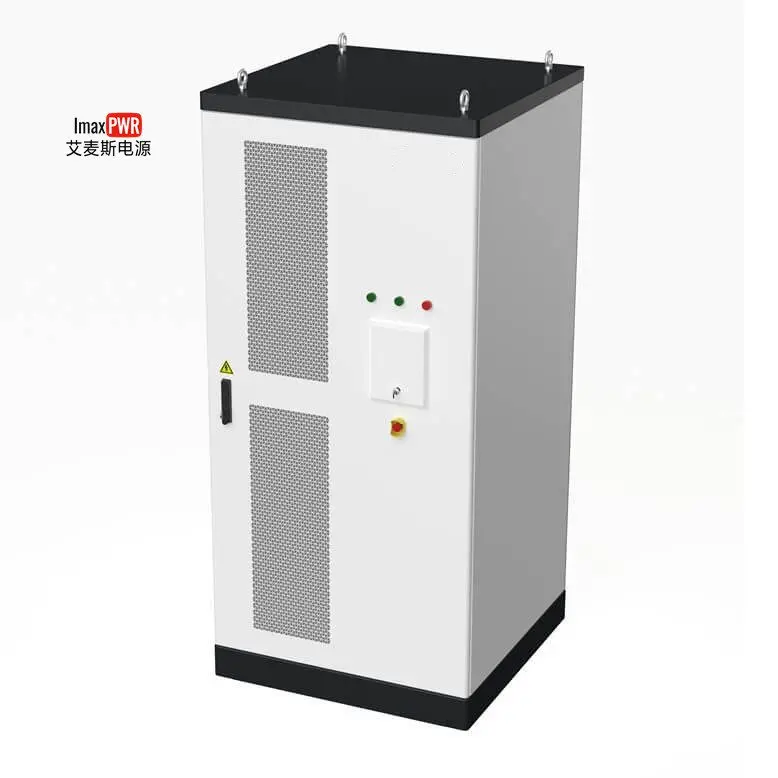

100kW DC200V~750V AC/DC power converter Energy Storage PCS Cabinet

100kW DC200V~750V AC/DC power converter Energy Storage PCS Cabinet

Product Name 100KW AC/DC power converter Energy Storage Hybrid PCS Cabinet
AC side 380/400/415Vac
Battery side 200~750Vdc
Rated Power 100kW
IP Grade IP54

Description

This Energy Storage Hybrid PCS Cabinet: A versatile solution for industrial and commercial energy storage. Seamlessly integrates grid-connected and off-grid modes, with bidirectional ACDC and DCDC modules. Ideal for microgrids, UPS, and load shifting.

Key Features:

  1. Versatile Hybrid Design:
    • The system seamlessly integrates both grid-connected and off-grid functionalities, allowing smooth transitions between different operating modes.
    • Ideal for scenarios where energy independence, reliability, and grid support are critical.
  2. Component Modules:
    • Bidirectional ACDC PCS Module:
      • Converts DC power between batteries, photovoltaic (PV) panels, and the grid.
      • Enables bidirectional energy flow, allowing efficient charging and discharging.
    • Bidirectional DCDC PCS Module:
      • Operates in MPPT (Maximum Power Point Tracking) mode.
      • Connects PV panels and batteries, optimizing energy conversion efficiency.
      • Facilitates battery charging from solar energy.
    • STS (Static Transfer Switch) Module:
      • Ensures seamless switching between grid-connected and off-grid modes.
      • Provides uninterrupted power supply during transitions.
    • EMS (Energy Management System) Module:
      • Manages the entire energy storage system.
      • Communicates with the Battery Management System (BMS) for optimal performance.

Applications:

  1. Commercial and Industrial Energy Storage:
    • Microgrids: The hybrid PCS cabinet supports microgrid configurations, enhancing energy resilience and stability.
    • Uninterruptible Power Supply (UPS): Ensures continuous power during grid outages.
    • Load Shifting: Efficiently manages peak demand by storing excess energy during off-peak hours.
  2. Off-Grid Scenarios:
    • Remote areas or sites without reliable grid access.
    • Renewable Energy Integration: Facilitates seamless integration of solar and wind energy sources.
    • Islanded Systems: Provides independent power supply for critical loads.

Advantages:

  • Flexibility: Configurable charging and discharging strategies to meet specific customer requirements.
  • Efficiency: Bidirectional energy flow optimization for maximum utilization.
  • Reliability: STS ensures uninterrupted power supply during grid transitions.
  • Scalability: Modular design allows easy expansion as energy needs grow.

The Energy Storage Hybrid PCS Cabinet empowers businesses and industries to achieve sustainable energy management while adapting to changing operational demands.
